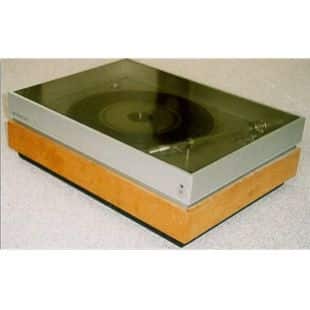

BeoGram 1800 (1968)

Bang & Olufsen BeoGram 1800 1968

BeoGram 1800 (1968)

This was a rare and interesting model. It boasted a new arm and motor compared to the Beogram 1000 but retained quite a lot of the design and the uninspired rubber mat.

It also had a most unusual dust cover with a metal surround with only the top panel being transparent. This design was to be seen also in the prototype Beogram 6000 but not in any production model.

BeoGram 1800 (1968) Product Details

Type Numbers

5213 (1968 - Dec 1972)

Designer

Manufactured

1968 - 1972

Colour Options

Rosewood, Teak, White

BeoGram 1800 (1968) Product Specification

Speeds: 45 and 33,3
Rumble: better than 55 dB (DIN B.)
Wow and flutter: +/- 0.15 peak value

Amplifier:
Max. 3.5 V RMS = 10 V pp (corresponding to 58 cm/sec./1000 Hz)

Pickup:
SP 10 A type 5425
Stylus pressure 1 g (2 g max)
Output:
5 mV – 1000 Hz / 47 k ohms
Voltage:
110 – 220 volts AC
Power consumption 22 W
Dimensions W x H x D: 43.8 x 13.2 x 32.3 cm
Weight 6.5 kg

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

BeoGram 1800 (1968) FAQs

Please let us know

Posted on

BeoGram 1500 (1978)

Bang & Olufsen BeoGram 1500 1978

BeoGram 1500 (1978)

Beogram 1500 combined ease of operation and advanced technology in a simple, straightforward way. All its operations were controlled via a single button.

Another advantage of this totally integrated design was its immunity to external shock and vibrations. The electronic servo drive system ensured correct turntable speed at all times. The low-mass arm had built-in bias compensation, and the MMC 20S pickup tracked at only 1,5 grams.

The unique pendulum spring suspension helped make the Beogram range of record players immune to the external shock and vibrations which would cause most other record decks to mistrack and damage the record groove.

Beogram 1500 could be made up as part of the Beosystem 1500, when linked together with other compatible Bang & Olufsen products.

This deck was the basic model of its time but the inherent design of this deck meant that the performance was extremely similar to the top of the range radial decks. Very easy to set up and simple to use, a true bargain buy in later years.

BeoGram 1500 (1978) Product Details

Type Numbers

5714 (1978 - July 1980)
5716 (F) (1978 - Nov 1979)

Designer

Manufactured

1978 - 1980

Colour Options

Rosewood, Teak, White, Oak

BeoGram 1500 (1978) Product Specification

Sound system Stereo, matrix
Output DIN 8.5 mV /47 kohms
Speeds: 33 – 45 rpm.

Tonearm: radial
Stylus pressure range 0 – 2 g

Automatic record-size: Yes, 17 and 30 cm
Automatic pickup movement Yes
Automatic speed selection Yes

Wow and flutter, DIN: < +/- 0.09 %
Rumble DIN unweighted: > 42 dB
Rumble DIN weighted: > 62 dB
Speed deviation: < 0.05 %
Speed control range: > +/- 3 %

Tracking error: 0.126°
Lift system: Mechanical
Antiskating: Yes, automatic

Pickup: MMC 3000 or MMC20S
Recommended stylus pressure: 1.2 g
Stylus: diamond spherical
Radius of curvature:15 µm

Motor: Servo controlled DC
Drive system: Flat belt

Turntable: 30cm / 500g

Power supply: 220 (110 – 130 – 240) V
Power consumption: 8 W

Dimensions: 44 x 8.5 x 33cm
Weight 6 kg

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

BeoGram 1500 (1978) FAQs

Please let us know

Posted on

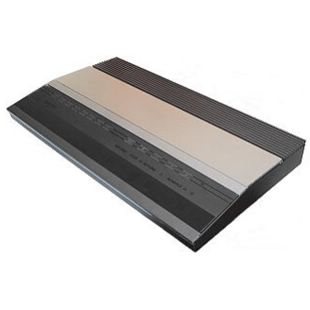

BeoCord 3300

Bang & Olufsen BeoCord 3300

BeoCord 3300

You had the benefits of the very latest technology with this cassette recorder when it was first introduced. Such as the patented HX Pro recording system which enriched the sound image by giving vastly superior reproduction of the treble range.

You were certain to approve of the wealth of useful features too. For example, if the record finished while you were recording, the tape stopped automatically and restarted automatically when you turn the record over.

When you pressed STOP after a recording, a four-second pause was inserted between tracks with the automatic search system. Clever stuff – all designed to make life easier and more fun. Beocord 3300 was part of Beosystem 3300 although it could also be used as a stand-alone item.

BeoCord 3300 Product Details

Type Numbers

2941 (1987 - Jan 1990)
2945 (AUS) (1987 - May 1988)
2942 (GB) (1987 - Jan 1990)
2943 (USA) (1987 - Jan 1990)

Designer

Manufactured

1987 - 1990

Colour Options

Grey, Black

BeoCord 3300 Product Specification

Compact cassette: C46-C60-C90
Recording system: HX PRO
Remote control: Terminal 3300 via Beomaster 3300
Direct operation: Sensi touch
Auto recording pauses at CD, 4 sec. pauses
Auto recording stop at CD, tape end
Search system: Pauses in music
Noise reduction system: Dolby B
Tape switch: Auto ferro/chrom
Tape head: Sendust

Wow and flutter DIN: <+/- 0.15%
Fast forward and rewind: C60 110 sec
Frequency range chrome: 25 – 18,000 Hz +/- 3 dB

Signal-to-noise ratio CCIR/ARM:
Metal Dolby B: >64 dB
Chrome Dolby B: >65 dB
Ferro Dolby B: >63 dB
Power supply:
2941 220V
2942 240V
2943 120V
2945 240V
Power consumption: max. 20 W
Dimensions: W x H x D 42 x 7 x 24.5cm
Weight: 3.8 kg
Connections: AudioLink

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

BeoCord 3300 FAQs

Please let us know

Posted on

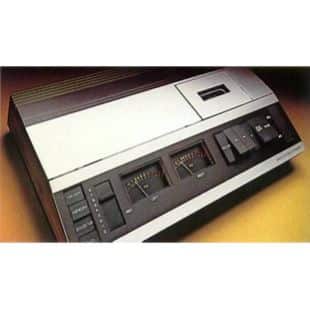

BeoCord 1900

Bang & Olufsen BeoCord 1900

BeoCord 1900

Beocord 1900 equalled Bang & Olufsen’s top-of-the-line cassette deck (Beocord 5000) in terms of specifications and performance, but it but it did not have the same wide range of facilities and operational refinements.

This does not mean that the Beocord 1900 was difficult to operate. On the contrary, the slanting front panel which contained all the operational facilities made the set’s controls handy and easily accessible. The cassette eject mechanism was air damped so that delivery was gentle and controlled. Two large VU meters enabled accurate setting of recording levels.

The microphones socket was placed discreetly under a sliding panel together with a balance control which enabled signal level adjustment in both channels. All the features which characterised high quality and high performance levels in cassette decks were incorporated. These included a combined recording/play-back Sendust tape head and Dolby B Noise Reduction circuits.

Beocord 1900 used precision techniques that ensured stable tape drive and the highest standards of recording and playback. Yet despite its comprehensive facilities it was easy to use and harmonised comfortably with many different Beosystems.

Beocord 1900 could be made up as part of the Beosystem 1900 or Beosystem2400, when linked together with other compatible Bang & Olufsen products.

BeoCord 1900 Product Details

Type Numbers

2643 (1978 - March 1981)
2646 (GB) (1978 - Dec 1980)
2644 (USA) (1978 - Oct 1981)

Designer

Manufactured

1978 - 1981

Colour Options

Teak, Rosewood, Oak, White

BeoCord 1900 Product Specification

Compact cassette: C60-C90
Wow and flutter, DIN: < +/- 0.15%
Speed deviation: < +/- 1%
Fast forward and rewind: 90 sec
Frequency range, DIN: 30 – 15,000 Hz
Signal-to-noise ratio, DIN: Chrome > 56 dB
With Dolby Chrome: > 64 dB

Power supply:
2643 220V
2644 110V
2646 240V

Power consumption: 25 W
Dimensions W x H x D: 40 x 8 x 25cm
Weight 5 kg

Connections: AUX
Microphone 0.175 mV / 2.2 kohms

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

Type

Date

    Type

Service Manual

EN

2643

10-78

BeoCord 1900 Service Manual


BeoCord 1900 FAQs

Please let us know

Posted on

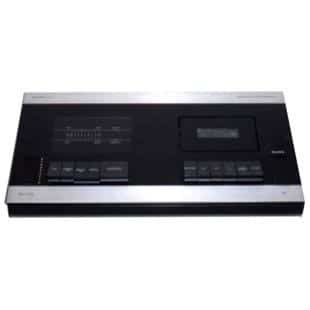

BeoCord 1700 (1981)

Bang & Olufsen BeoCord 1700 (1981)

BeoCord 1700 (1981)

Beocord 1700 matched the Beomaster 1700 both physically and technically. It combined high performance with easy, straightforward operation.

Ferric, chrome or metal tapes could be used. The Sendust tape head, Dolby B circuits and Peak Programme Meter all contributed to high quality recording and playback. You could switch between all modes of play without fear of tangling the tape or damaging the mechanism.




BeoCord 1700 (1981) Product Details

Type Numbers

2662 (1981 - Feb 1983)
2666 (GB) (1981 - Aug 1983)

Designer

Manufactured

Please let us know​

Colour Options

Teak, Rosewood, Oak

BeoCord 1700 (1981) Product Specification

Compact cassette: C46-C60-C90
Tape head: Sendust
Noise reduction: Dolby NR
Tape switch: Auto. ferro/chrom

Wow and flutter DIN: <+/- 0.15%
Speed deviation: <+/- 1%
Fast forward and rewind: C60 90 sec
Frequency range chrome/metal/ferro: 30 – 16,000 Hz +/- 3 dB with MPX filter

Signal-to-noise ratio metal Dolby NR: >66 dB
Signal-to-noise ratio chrome Dolby NR: >64 dB
Signal-to-noise ratio ferro Dolby NR: >62 dB

Power supply:
2662 220V
2666 240V
Power consumption: 20 W

Dimensions W x H x D: 40 x 10 x 26cm
Weight: 5 kg
Connections: Microphone 0,3 mV /3,3 Komhs

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

BeoCord 1700 (1981) FAQs

Please let us know

Posted on

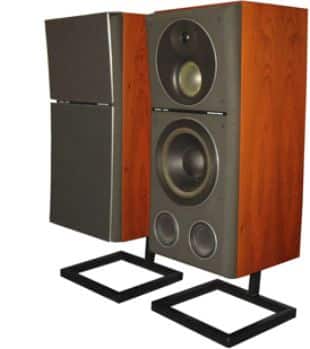

Beovox M150.2

Bang & Olufsen Beovox M150.2

Beovox M150.2

Beovox Uni-Phase MS150 and M150 were Bang & Olufsen’s answer to the need for loudspeakers that could cope with greater dynamic range and increased demand for serious, no-gimmick sound reproduction.



They were B&O’s biggest and most perfected loudspeakers up to the time of their introduction, designed to reproduce sound with a natural, linear phase quality – even at very high sound pressure levels. Their power handling capacities were specified at 150 watts RMS. However, effective overload protection circuits enabled them to handle brief passages of music way above their ratings.



Both speakers reproduced all types of music – from the faintest to the loudest notes – with extreme accuracy and precision, without adding to or subtracting from the signals they received.

In addition, the MS150 was designed to reproduce a clean, powerful bass in a relatively large room. That is why it was fitted with a monitor quality sub-woofer and had a net volume of 64 litres. It reproduced the lowest of tones that any record, tape or FM broadcast could deliver. Apart from the sub-woofer, all other speaker drivers in both models were identical.

Behind this successful design lay a new acoustic technology, an integrated loudspeaker design which put Bang & Olufsen in control of all the parameters that affected the loudspeakers’ performance. That is, all, except the room acoustics in which they were situated.

The new technology was based upon the use of Fourier analysis, computer-aided design and simulation techniques and laser holography. It helped prove measuring, calculating and testing techniques and thereby led to better cross-over filters’ design, refinement of patented linear phase techniques, control cabinet resonances and the minimisation of diffractions caused by the cabinet’s traditionally sharp-edged profiles. There was also a redesigning of the necessary drivers in order to meet precise construction requirements and perform optimally.

A monitor quality sub-woofer, a 20cm bass unit and a 64 litre net cabinet secured clean, powerful, bass reproduction. The mid-range unit, a 7,5cm dome tweeter, was aperiodically tuned to secure the exact frequency response characteristic required, while the super tweeter ensured excellent high frequency response.

Beovox M150-2 featured a 3-unit configuration to ensure monitor-quality sound reproduction in the 38 – 22000 Hz frequency range. Power handling capacity was 150 watts RMS with overload protection on all drive units. The 7,5cm unit acted as a mid-range filler-driver to eliminate audible phase distortion, so the music was always crisp and well defined with individual instruments correctly ‘positioned’ in the musical landscape. Pedestals were included as standard equipment.

Beovox M150.2 Product Details

Type Numbers

Please let us know​

Designer

Manufactured

1980 - 1985

Colour Options

Rosewood, Teak

Beovox M150.2 Product Specification

RMS power handling capacity 150 W
Music power handling capacity 170 W
Impedance: 8 ohms
Frequency response 4+ -8 dB 40 – 22,000 Hz
Frequency response +/- 4 dB 80 – 22,000 Hz
Sensitivity 2.5 W
Distortion 250 – 1000 Hz
<1%
Distortion: > 1000 Hz <0.5%
Woofer: 21 cm, throw +/- 5 mm
Phase-link unit: 7.5 cm dome
Tweeter: 2.5 cm dome
Net volume: 41 litre
Gross volume: 70 litre
Dimensions W x H x D: 32 x 67.5 x 32 cm
Weight 22 kg

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

Beovox M150.2 FAQs

Please let us know

Posted on

Beovox M150

Bang & Olufsen Beovox M150

Beovox M150

Beovox Uni-Phase MS150 and M150 were Bang & Olufsen’s answer to the need for loudspeakers that could cope with greater dynamic range and increased demand for serious, no-gimmick sound reproduction.



They were B&O’s biggest and most perfected loudspeakers up to the time of their introduction, designed to reproduce sound with a natural, linear phase quality – even at very high sound pressure levels. Their power handling capacities were specified at 150 watts RMS. However, effective overload protection circuits enabled them to handle brief passages of music way above their ratings.



Both speakers reproduced all types of music – from the faintest to the loudest notes – with extreme accuracy and precision, without adding to or subtracting from the signals they received.

In addition, the MS150 was designed to reproduce a clean, powerful bass in a relatively large room. That is why it was fitted with a monitor quality sub-woofer and had a net volume of 64 litres. It reproduced the lowest of tones that any record, tape or FM broadcast could deliver. Apart from the sub-woofer, all other speaker drivers in both models were identical.

Behind this successful design lay a new acoustic technology, an integrated loudspeaker design which put Bang & Olufsen in control of all the parameters that affected the loudspeakers’ performance. That is, all, except the room acoustics in which they were situated.

The new technology was based upon the use of Fourier analysis, computer-aided design and simulation techniques and laser holography. It helped prove measuring, calculating and testing techniques and thereby led to better cross-over filters’ design, refinement of patented linear phase techniques, control cabinet resonances and the minimisation of diffractions caused by the cabinet’s traditionally sharp-edged profiles. There was also a redesigning of the necessary drivers in order to meet precise construction requirements and perform optimally.

A monitor quality sub-woofer, a 20cm bass unit and a 64 litre net cabinet secured clean, powerful, bass reproduction. The mid-range unit, a 7,5cm dome tweeter, was aperiodically tuned to secure the exact frequency response characteristic required, while the super tweeter ensured excellent high frequency response.

Beovox M150-2 featured a 3-unit configuration to ensure monitor-quality sound reproduction in the 38 – 22000 Hz frequency range. Power handling capacity was 150 watts RMS with overload protection on all drive units. The 7,5cm unit acted as a mid-range filler-driver to eliminate audible phase distortion, so the music was always crisp and well defined with individual instruments correctly ‘positioned’ in the musical landscape. Pedestals were included as standard equipment.

Beovox M150 Product Details

Type Numbers

6432

Designer

Manufactured

1980 - 1985

Colour Options

Rosewood, Teak

Beovox M150 Product Specification

RMS power handling capacity 150 W
Music power handling capacity 170 W
Impedance: 8 ohms
Frequency response 4+ -8 dB 40 – 22,000 Hz
Frequency response +/- 4 dB 80 – 22,000 Hz
Sensitivity 2.5 W
Distortion 250 – 1000 Hz
<1%
Distortion: > 1000 Hz <0.5%
Woofer: 21 cm, throw +/- 5 mm
Phase-link unit: 7.5 cm dome
Tweeter: 2.5 cm dome
Net volume: 41 litre
Gross volume: 70 litre
Dimensions W x H x D: 32 x 67.5 x 32 cm
Weight 22 kg

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

Beovox M150 FAQs

Please let us know

Posted on

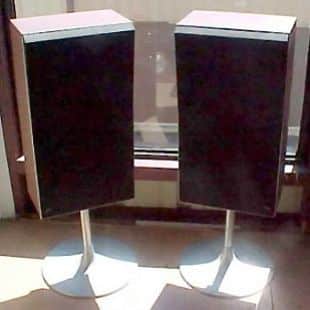

Beovox M70

Bang & Olufsen Beovox M70

Beovox M70

Top of the range monitor speaker, these were much more like the Beovox S60 than the Beovox M75 that replaced them.

They were 4 way speakers with the tweeter and midrange level with each other and the Phase link and woofer below. They could be fitted with the dramatic trumpet stand and were the speakers specified for the Beosystem 6000.

Beovox M70 Product Details

Type Numbers

6304 (to May 1978)

Designer

Manufactured

1975 - 1979

Colour Options

Rosewood, Teak

Beovox M70 Product Specification

Continuous load 70 W
Music load 120 W
Impedance: 4 – 8 ohms
Frequency response: +4 -8 dB 27 – 20,000Hz
Sensitivity: 5 W
Gross volume: 39.1 litre

Woofer: 25 cm
Phase link unit:12.5 cm
Mid-range unit: 2.5 cm
Tweeter

Dimensions W x H x D: 35 x 65 x 29 cm
Weight 25 kg

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

Beovox M70 FAQs

Please let us know

Posted on

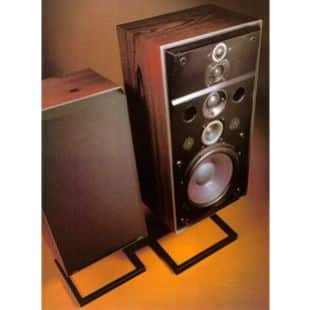

BeoVox M75

Bang & Olufsen BeoVox M75

BeoVox M75

Beovox Uni-Phase M100 and M75 were the top models in the 1979 – 1980 range of Bang & Olufsen speakers.

They reproduced sound with studio monitor quality, which, in practice meant that even at very high sound pressure levels (volume) they reproduced sound with constantly neutral, linear phase quality. They could also withstand hard-working conditions similar to those met in sound studios, because they were effectively protected against damage from overloading. Their power-handling capacities were specified at 100 and 75 watts RMS respectively; however, their unique overload protection circuits permitted them to handle music passages above these rated capacities.

Special emphasis was placed on Beovox M100’s ability to reproduce clean, powerful bass. That it why it was given a ported bass-reflex cabinet with a 30,5cm woofer. The cabinet’s volume was 89 litres. Bass response went down to 27Hz (measured at +/- 4 – 8 dB).

Beovox M75 had outstanding overall performance too, and was equally suitable for medium-sized or larger rooms. Both models had specially-designed pedestals which could be adjusted to the correct listening height and angle.

BeoVox M75 Product Details

Type Numbers

6314

Designer

Manufactured

1976 - 1980

Colour Options

Rosewood

BeoVox M75 Product Specification

Continuous load 75 W
Music load 125 W
Impedance: 4 – 8 ohms
Frequency response +4 -8 dB 27 – 20,000 Hz
Sensitivity 5 W
Gross volume 55 litre
Woofer: 25cm
Phase link unit: 12,5 cm
Mid-range unit: 6cm
Tweeter: 2,5cm
Dimensions W x H x D: 35 x 65 x 27cm
Weight 17kg

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

BeoVox M75 FAQs

Please let us know

Posted on

BeoVox M100

Bang & Olufsen BeoVox M100

BeoVox M100

Beovox Uni-Phase M100 and M75 were the top models in the 1979 – 1980 range of Bang & Olufsen speakers.

They reproduced sound with studio monitor quality, which, in practice meant that even at very high sound pressure levels (volume) they reproduced sound with constantly neutral, linear phase quality. They could also withstand hard-working conditions similar to those met in sound studios, because they were effectively protected against damage from overloading. Their power-handling capacities were specified at 100 and 75 watts RMS respectively; however, their unique overload protection circuits permitted them to handle music passages above these rated capacities.

Special emphasis was placed on Beovox M100’s ability to reproduce clean, powerful bass. That it why it was given a ported bass-reflex cabinet with a 30,5cm woofer. The cabinet’s volume was 89 litres. Bass response went down to 27Hz (measured at +/- 4 – 8 dB).

Beovox M75 had outstanding overall performance too, and was equally suitable for medium-sized or larger rooms. Both models had specially-designed pedestals which could be adjusted to the correct listening height and angle.

BeoVox M100 Product Details

Type Numbers

6309
6319

Designer

Manufactured

1976 - 1980

Colour Options

Rosewood

BeoVox M100 Product Specification

Continuous load:100 W
Music load: 150 W
Impedance: 4 – 8 ohms
Frequency response: +4 -8 dB 27 – 22,000 Hz
Sensitivity: 5W
Net volume: 60 litre
Gross volume: 89 litre
Woofer: 33cm
Filler driver: 11.5cm
Mid-range unit: 5.5cm
Tweeter 1: 4cm
Tweeter 2: 1.9cm
Dimensions W x H x D: 39.5 x 75 x 30.5cm
Weight: 23kg

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

BeoVox M100 FAQs

Please let us know
