Beovox M70

Top of the range monitor speaker, these were much more like the Beovox S60 than the Beovox M75 that replaced them.

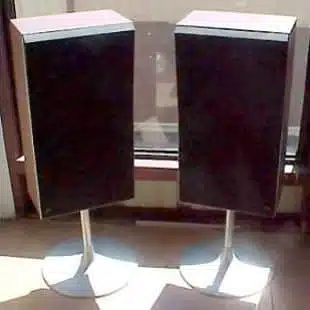

They were 4 way speakers with the tweeter and midrange level with each other and the Phase link and woofer below. They could be fitted with the dramatic trumpet stand and were the speakers specified for the Beosystem 6000.

Beovox M70 Product Details

Type Numbers

6304 (to May 1978)

Designer

Manufactured

1975 - 1979

Colour Options

Rosewood, Teak

Beovox M70 Product Specification

Continuous load 70 W
Music load 120 W
Impedance: 4 – 8 ohms
Frequency response: +4 -8 dB 27 – 20,000Hz
Sensitivity: 5 W
Gross volume: 39.1 litre

Woofer: 25 cm
Phase link unit:12.5 cm
Mid-range unit: 2.5 cm
Tweeter

Dimensions W x H x D: 35 x 65 x 29 cm
Weight 25 kg
