BeoMaster 901

Bang & Olufsen BeoMaster 901

BeoMaster 901

Beomaster 901, by 1977/78 was Bang & Olufsen’s simplest receiver. However, no compromises were made on quality. The tuner section covered Long, Medium and FM wavebands with a very high standard of reception quality.

Tuning was by ways of a slider which moved smoothly along a clearly marked scale. An illuminated indicator and AFC (Automatic Frequency Control) circuit helped to make tuning easy and accurate. The MONO control button disconnected the built-in stereo decoder when correct stereo reception was impaired by bad weather conditions or other interference.

Beomaster 901’s large tuning scale had tuning facilities for FM, Long and Medium wave stations. The tuning slider had small thumbwheels to aid fine tuning. AFC locked the receiver to the desired station

The stereo amplifier had a powerful output of 2 x 20 watts RMS and special Darlington-coupled transistors in the output stages kept distortion to a minimum – less than 0,3% at full power. There were connections for two pairs of loudspeakers and a pair of headphones. Sockets were also provided for the connection of a tape recorder, a record-player and AM and FM aerials. Easy-to-use sliders controlled volume, balance, bass and treble and there were slim push-buttons for selecting waveband or tape or record input.

FM room aerial

In order to receive FM programmes, an FM aerial must be connected to the Beomaster 1001. Within a certain radius of the transmitter you could use the Bang & Olufsen FM room aerial, type 8902010. This aerial was easily fitted and the telescopic elements could be pulled out and positioned favourably.

Beomaster 901 could be made up as part of the Beosystem 901 including the the Beogram 1102 record player, Beocord 1101 cassette deck and 2 Beovox Uni-Phase S25 or P30 loudspeakers.




BeoMaster 901 Product Details

Type Numbers

2602 ( 1972 - Dec 1977)

Designer

Manufactured

1972 - 1977

Colour Options

Rosewood, Teak, Oak

BeoMaster 901 Product Specification

Power output: 2 x 20 watts/ 8 ohms, 2 x 19 watts/ 4 ohms
2 x 40 watts/ 8 ohms, 2 x 25 watts/ 4 ohms
Speaker Impedance: 4 ohms
Harmonic Distortion: < 0.1 %
Intermodulation: < 1.0 %
Frequency Response: 20 – 30,000 Hz
Signal-to-noise ratio: > 50 dB
Channel separation: > 50 dB

Bass control: +/- 17 dB
Treble control: +/- 14 dB

FM tuner range: 87.5 – 104 MHz
AM tuner range: 147 – 350 kHz, 520 – 1610 kHz

Power supply: 110 – 130 – 220 – 240 V, 50 – 60 Hz
Power consumption: 15 – 120 W
Dimensions W x H x D 7.5 x 50 x 22.8 cm
Weight 5.5 kg

Connections: Tape DIN
Phono DIN
Speakers 1 set

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

BeoMaster 901 FAQs

Please let us know

Posted on

BeoMaster 6000 (1981)

Bang & Olufsen BeoMaster 6000 1981

BeoMaster 6000 (1981)

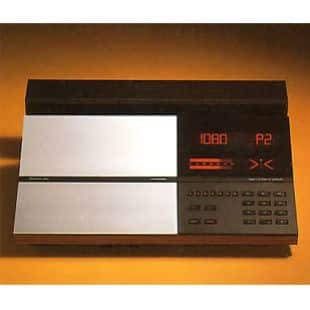

This extremely distinctive and beautiful FM stereo receiver from Bang & Olufsen used the very latest technology, both in its complex audio circuitry and in the microcomputer-based control systems which made it such an effortless and pleasurable product to use – whether or not you decided to include the optional remote control facility. The specialist radio section concentrated on the superb sound quality available from FM transmissions.

It covered the entire FM band from 87,5 to 108 MHz and incorporated the most advanced techniques for accurate, drift-free stereo reception.

The amplifier gave 2 x 75 watts RMS with an extremely low level (0,8%) of harmonic distortion. Clean, clear sound – always. Two 24-hour timers allowed you to play or record any sound source automatically. You didn’t even have to be at home. Or, if you wanted to be sure of hearing the same news programme every evening you could set the Repeat function to remember for you – day after day.

Connections included sockets for a record deck and two tape decks (DIN or RCA phono plugs) plus graphic equaliser, headphones and two pairs of loudspeakers.

Beomaster 6000 formed the heart of Beosystem 6000 and was designed by Jacob Jensen.




BeoMaster 6000 (1981) Product Details

Type Numbers

2251 (1981 - May 1986)
2252 (GB) (1981 - May 1987)
2253 (US) (1981 - Feb 1987)
2254 (J) (1981 - Dec 1982)

Designer

Manufactured

1981 - 1987

Colour Options

Rosewood, Teak, White

BeoMaster 6000 (1981) Product Specification

Continuous power output per channel: 75 W at 8 ohms
Total harmonic distortion: < 0.08 %
IHF Intermodulation: < 0.05 %

Bass control at 40 Hz: +/- 11 dB
Treble control at 12.500 Hz: +/- 11 dB



Power supply:
2251 220V
2252 240V
2253 120V
2254 100V

Power consumption: 50 – 320 W
Dimensions W x H x D: 52.5 x 15 x 38cm
Weight: 14 kg
RIAA amplifier: built-in

Connections: Speakers 2 sets
Phono: DIN
Tape 1: DIN
Tape 2: Phono
LINE IN/OUT DIN
Headphones jack

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

BeoMaster 6000 (1981) FAQs

Please let us know

Posted on

BeoCenter 2800

Bang & Olufsen BeoCenter 2800

BeoCenter 2800

Beocenter 2800 was a unique combination of FM/AM tuner, a 2 x 25 watts RMS hi-fi power amplifier and record player. The tuner section offered Long and Medium wave reception as well as FM. There were facilities for pre-setting the four FM stations you listen to most frequently. Ceramic filters, AFC, split-supply output and a phase-locked loop decoder were some of the features that ensured outstanding reception and reproduction of even distant stations.

The record player was fully automatic – one master switch controlled all operations. The anti-skating device was built into the arms suspension and worked automatically. Electronic Servo Drive (ESD) ensured constantly correct speed. There were sockets for tape deck, two sets of stereo speakers and headphones.

This was a compact, space-saving unit which was easy to use thanks to automatic circuits and logical controls. Beocenter 2800 could be made up as part of the Beosystem 2800, when linked together with other compatible Bang & Olufsen products

BeoCenter 2800 Product Details

Type Numbers

2630 (1978 - June 1980)

Designer

Manufactured

1978 - 1980

Colour Options

Rosewood, Teak, White

BeoCenter 2800 Product Specification

Power output RMS DIN 2 x 25 watts / 4 ohms, 2 x 20 watts / 8 ohms
Harmonic distortion < 0.1 %
Intermodulation < 0.15 %
Frequency range 20 – 30,000 Hz
FM tuner range FM 87.5 – 108 MHz
LW 150 – 350 kHz
MW 520 – 1610 kHz

Record player:
Automatic record-size 17 and 30 cm
Speeds 33 – 45 rpm
Wow and flutter < +/- 0.09 %
Rumble unweighted > 42 dB
Rumble weighted > 62 dB
Speed deviation < 0.05 %
Speed control range > +/- 3 % Pickup:
MMC 3000 Stylus – spherical diamond
Radius of curvature 15 µm
Frequency range 20 – 20,000 Hz +2 -3 dB
Stylus pressure range 0 – 2 g

Power supply:
110 – 130 – 220 – 240 V
Power consumption 20 – 150 W
Dimensions W x H x D 50 x 12 x 37cm
Weight 13 kg

Connections: Tape recorder DIN
Headphone jack

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

Type

Date

    Type

Service Manual

EN

2630

06-77

BeoCenter 2800 Service Manual


BeoCenter 2800 FAQs

Please let us know

Posted on

BeoCenter 1600

Bang & Olufsen BeoCenter 1600

BeoCenter 1600

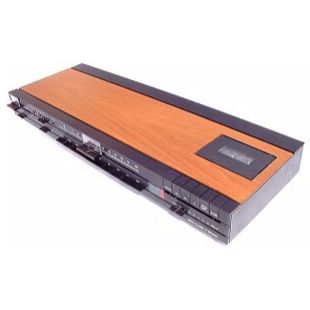

Beocenter 1600 was a combined FM stereo tuner, hi-fi amplifier and cassette recorder with extra operational convenience in the tuner section – facilities for presetting the 4 FM stations you listen to most frequently. The hi-fi amplifier was relatively powerful and had low distortion and a wide frequency range so that the tuner’s excellent qualities could be exploited fully.

The built in cassette recorder was very easy to use – recording level was regulated with the same sliding potentiometer on both channels and monitored by an illuminated indicator. A Selector switch was available to choose between normal or chromium dioxide tapes.

Beocenter 1500 and Beocenter 1600 were at the time of their production, two of the market’s most compact audio systems, but despite their small external dimensions they could fill a large room with sound. All the push buttons of Beocenter 1500 were of solid aluminium, and the solid aluminium front panel on the Beocenter 1600 was anodised – a process which was more expensive and more demanding but which also made the set more robust and resistant to marks and scratches.

Combined with two speakers from the Beovox Uni-Phase range of loudspeakers, Beocenter 1600 would then make up Beosystem. 1600.




BeoCenter 1600 Product Details

Type Numbers

2606 (1975 - June 1978)

Designer

Please let us know

Manufactured

Please let us know​

Colour Options

Please let us know​

BeoCenter 1600 Product Specification

Sound system and loudspeaker 2 sets of stereo
FM pre-tuning: 4
Power output: 1000 Hz RMS 2 x 22 watts / 4 ohms; 2 x 19 watts / 8 ohms
Music power 2 x 40 watts / 4 ohms; 2 x 25 watts / 8 ohms
Speaker impedance 4 ohms
Harmonic distortion: 1000 Hz 50 mV DIN 45 500 < 0.1 %
Intermodulation: DIN 45 500 < 0.1 %
Frequency range: +/- 1.5 dB DIN 45 500 20 – 30,000 Hz

Bass control at 40 Hz: +/- 17 dB
Treble control at 12,5000 Hz: +/- 14 dB

Tuner: FM range 87.5 – 108 MHz

Compact cassette: C60 – C90
Tape head: Super Permalloy
Iron oxide tape: Yes
Chromium dioxide tape: Yes
Indicator system: Dual light
Counter: 3 digits
Stop at end of tape: Yes
Wow and flutter, DIN: < +/- 0.3 %
Speed deviation: < +/- 1.5 %
Fast forward and rewind: 90 sec.
Frequency range, DIN 40: 12,500 Hz
Signal-to-noise ratio Chrome: > 52 dB
Erasure: > 65 dB
AUX: 50 mV / 22 kohms
Output radio: 800 mV / 22 kohms

Power supply: 110 – 130 – 220 – 240 V
Power consumption: 20 – 170 W
Dimensions W x H x D 66 x 8.5 x 26cm
Weight 8.8 kg

Connections: Phono DIN
Headphone jack
Extra tape recorder DIN

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

Type

Date

    Type

Service Manual

EN

2606

05-83

BeoCenter 1600 Service Manual


BeoCenter 1600 FAQs

Please let us know

Posted on

BeoCenter 1500

Bang & Olufsen BeoCenter 1500

BeoCenter 1500

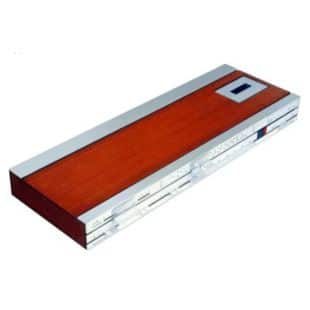

Beocenter 1500 was a combined FM/AM tuner, hi-fi stereo amplifier and cassette recorder with a specification level that was unique for combination units in that price bracket. In the AM section, which covered long and medium waves, Bang & Olufsen placed an emphasis on the set’s ability to separate stations from each other. The FM section had outstanding channel separation and stereo reception. The amplifier’s technical specifications were way above the average and fulfilled accepted hi-fi norms by a wide margin.

The built-in cassette recorder had its own operation panel but was otherwise fully integrated with the rest of Beocenter 1500. There was a switch for normal and chrome tapes; recording level was monitored on an illuminated indicator: red signified overload and green meant that all was well. The tape heads were of a super Permalloy and had a higher performance level and longer useful lifetime than ordinary heads.

Beocenter 1500 had connections for record player, two sets of stereo speakers, headphones and an extra tape deck.

Beocenter 1500 and Beocenter 1600 were, at the time of their production, two of the market’s most compact audio systems, but despite their small external dimensions they could fill a large room with sound. All the push buttons of Beocenter 1500 were of solid aluminium, and the solid aluminium front panel on the Beocenter 1600 was anodised – a process which was more expensive and more demanding but which also made the set more robust and resistant to marks and scratches.




BeoCenter 1500 Product Details

Type Numbers

2603 (1976 - Jan 1978)

Designer

Manufactured

1976 - 1978

Colour Options

Rosewood, Teak

BeoCenter 1500 Product Specification

Power output: 2 x 20 watts/ 8 ohms
2 x 19 watts/ 4 ohms
Music power: 2 x 40 watts/ 8 ohms
2 x 25 watts/ 4 ohms
Speaker Impedance: 4 ohms
Harmonic Distortion: < 0.1 %
Intermodulation: < 1.0 %
Frequency Response: 20 – 30,000 Hz
Signal-to-noise ratio: > 50 dB
Channel separation: > 50 dB

Bass control:+/- 17 dB
Treble control: +/- 14 dB
FM tuner: Range 87.5 – 104 MHz
AM tuner: Range 147 – 350 kHz
520 – 1610 kHz

Compact cassette: C60 – C90
Tape head: Super Permalloy
Iron oxide tape: Yes
Chromium dioxide tape: Yes
Indicator system: Dual light
Stop at end of tape: Yes
Wow and flutter, DIN: < +/- 0.3 %
Speed deviation: < +/- 1.5 %
Fast forward and rewind: 90 sec.
Frequency range, DIN chrome: 40 – 12,500 Hz
Signal-to-noise ratio DIN chrome: > 52 dB
Erasure: > 65 dB

Power supply: 110 – 130 – 220 – 240 V
Power consumption 20 – 170 W
Dimensions W x H x D: 66 x 8.5 x 26cm
Weight 8.8 kg

Connections: Phono DIN
Headphone jack
Extra tape recorder DIN

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

Type

Date

    Type

Service Manual

EN

2603

05-83

BeoCenter 1500 Service Manual


BeoCenter 1500 FAQs

Please let us know

Posted on

BeoGram CD 3500

Bang & Olufsen BeoGram CD 3500

BeoGram CD 3500

The sound reproduction achieved by Bang & Olufsen’s CD 3500 CD player was truly outstanding. It played both 12cm and 8cm compact discs and had an ingenious ‘step’ function which allowed you to go straight to a chose track selected from anywhere on the disc. The CD player was one of the most technologically-advanced pieces of hi-fi on the market at the time and yet was one of the easiest to operate. The explicit display always indicated what the CD player was doing all the time – for example, which track was being played, and how many tracks there were on the played compact disc.

Beogram CD 3500 could be used as part of the Beosystem 3500 hi-fi system.

BeoGram CD 3500 Product Details

Type Numbers

5171
5172
5173
5174
5175

Designer

Manufactured

1988 - 1994

Colour Options

Grey

BeoGram CD 3500 Product Specification

Power supply:
5171: 220V
5172: 240V
5173: 120V
5174: 100V
5175: 240V
Power consumption: 23 W
Dimensions W x H x D: 42 x 7 x 24.5cm
Weight: 4.5 kg

Link compatibility: Datalink

Frequency range: 3 – 20,000 Hz +/- 0.3 dB
Signal-to-noise ratio: > 100 dB / 110 dB A-weighted
Dynamic range: > 96 dB
Harmonic distortion incl. noise: < 0.0025% at 0 dB;
< 0.025 at -20 dB
Channel separation: > 101 dB
Channel difference: < 0.08 dB
Converter system: 16 bit, 4 x oversampling 176.4 kHz
Low pass filter: Digital + Bessel/elliptical analogue
Damping: > 20,000 Hx > 50 dB
Phase error between L and R 0 degree at 20 – 20,000 Hz
Output analogue: 1.3 V RMS at 0 dB
Output digital: For digital equipment

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

BeoGram CD 3500 FAQs

Please let us know

Posted on

BeoGram 3500

Bang & Olufsen BeoGram 3500

BeoGram 3500

Another incarnation of the lightweight B&O tangential turntable, this one was designed to match the Beomaster 3500 with it’s ‘battleship grey’ trim on the dust cover and was supplied with an MMC4 cartridge. A RIAA was built into this model.

BeoGram 3500 Product Details

Type Numbers

Please let us know​

Designer

Manufactured

1990 - 1993

Colour Options

Grey

BeoGram 3500 Product Specification

Wow and flutter, DIN < +/- 0.06 %
Rumble DIN weighted > 80 dB
Rumble DIN unweighted > 55 dB

Speeds
33 – 45 rpm.
Speed deviation < +/- 0.2 %

Power supply
5976: 220V
5977: 120V
5978: 100V
Power consumption < 10 watts
Dimensions W x H x D 42 x 7.5 x 32.5 cm
Weight 5.3 kg

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

Type

    Type

Service Manual

EN

5976, 5977, 5978, 5979

BeoGram 3500 Service Manual

BeoGram 3500 FAQs

Please let us know

Posted on

BeoGram 3300

Bang & Olufsen BeoGram 3300

BeoGram 3300

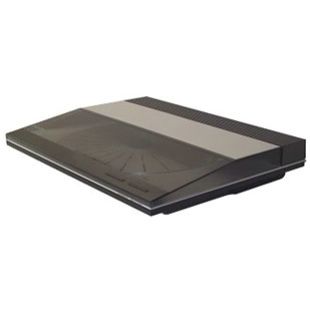

It’s better both for your records and for sound quality to play a record the way the master was made – in a straight line from the edge to the centre. This tangential arm record player did just that, giving a far more precise reading of the signals in the groove. The MMC4 cartridge made a vital contribution too; it was feather-weight, with a stylus pressure of only 1,2 grams, giving outstanding sound quality but minimising wear and tear on your records.

There’s more protection too – invaluable for all-night parties. The electronically controlled tangential arm was suspended so that it isolated mechanical vibrations from the cartridge. The suspension chassis was also thoroughly engineered to neutralise vibrations. So keep on dancing – the record player can take it! Beogram 3300 was part of Beosystem 3300 although may be used as a stand-alone item.

One of many tangential decks all utilising the same basic design, the 3300 was noticeable mainly for its grey finish and slightly lurid graphics. Very much a child of the 80s, it was replaced by the 3500 and 4500.

BeoGram 3300 Product Details

Type Numbers

5931 (1987 - June 1990)
5935 (AUS) (1987 - Sept 1988)
5933 (USA) (1987 - June 1990)

Designer

Manufactured

1987 - 1990

Colour Options

Grey

BeoGram 3300 Product Specification

Tonearm: Tangential Optimum Pivot Point
Motor Servo-controlled DC
Wow and flutter: < 0.06 %
Rumble DIN weighted: >80 dB

Rumble DIN unweighted: >55 dB
Speeds: 33-45 rpm
Speed deviation: <+/- 0.2 %

Power supply: 190 – 265 V
Power consumption: < 10 W

Dimensions W x H x D: 42 x 7.5 x 32.5cm
Weight 5.3 kg
Link compatibility: Data Link

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

Type

    Type

User Guide

EN


BeoGram 3300 User Guide

User Guide

NL


BeoGram 3300 User Guide

Service Manual

NL

5931, 5933, 5934, 5935


BeoGram 3300 Service Manual

BeoGram 3300 FAQs

Please let us know

Posted on

BeoGram 6000 (1981)

Bang & Olufsen BeoGram 6000 1981

BeoGram 6000 (1981)

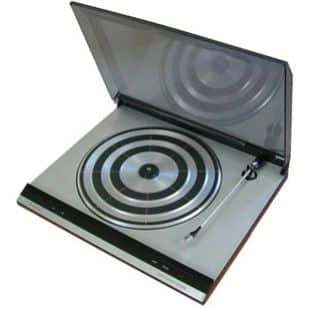

Beogram 6000 – Type 5751 – was a fully automatic record player with one-touch operation.

Put a record on the turntable, touch START and let Bang & Olufsen technology do the rest. The lightweight, low inertia tone arm was fitted with the MMC 20EN pick-up cartridge. This had a naked elliptical diamond and a low Effective Tip Mass which, together with the lightweight arm, secured excellent tracking performance and minimum record wear.

The patented spring suspension system effectively prevented external knocks and vibration from affecting tracking and sound quality. This later radial 6000 model was fitted with Datalink and was really a Beogram 2402 with new electronics in the same design. It really did not match the Beomaster 6000 and was a short lived and frankly unpopular model but was offered as a cheaper alternative to the tangential tracking and tangential drive Beogram 6006. These decks were both replaced by the Beogram 6002. This deck had the newer MMC3 cartridge and was a strange amalgam of the two earlier decks in that it had a simplified tangential arm but belt drive for the platter

BeoGram 6000 (1981) Product Details

Type Numbers

5751

Designer

Manufactured

1981 - 1981

Colour Options

Rosewood, Teak, White, Oak

BeoGram 6000 (1981) Product Specification

Speeds 33-45 rpm.
Wow and flutter < +/- 0.06 %
Rumble weighted > 65 dB
Rumble unweighted > 45 dB
Motor Servo controlled DC
Drive system Belt

Power supply
180 – 265 (110) V
Power consumption 8 watts
Dimensions 44 x 8.5 x 37 cm
Weight 6.5 kg
Recommended stylus pressure MMC 20 EN 12 mN / 1.2 gram

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

Language

    Type

User Guide

EN


BeoGram 6000 User Guide

Service Manual Part 1

EN

5501, 5502

BeoGram 6000 Service Manual

Service Manual Part 2

EN

5501, 5502

BeoGram 6000 Service Manual

Service Manual

EN

5514, 5515

BeoGram 6000 Service Manual

Service Manual

EN

5502, 5505

BeoGram 6000 Service Manual

Service Manual

EN

5751, 5753, 5754

BeoGram 6000 Service Manual

BeoGram 6000 (1981) FAQs

Please let us know

Posted on

BeoGram 2000 (1983)

Bang & Olufsen BeoGram 2000 1983

BeoGram 2000 (1983)

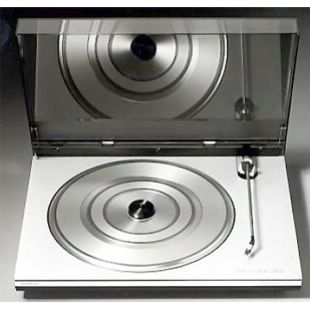

This radial-tracking record deck had a lightweight turntable (only 400g) to minimise torque at starting. The automatic cueing system was also very fast-acting, so it was only a matter of a few seconds between touching the PLAY control and hearing the music.

The tone arm had built-in anti-skating and carried the MMC 4 pickup, ensuring accurate tracking and excellent sound quality. Normal PLAY and STOP functions were entirely automatic and could be operated with the lid closed; manual buttons for playing non-standard discs were located on the deck plate. In addition to automating the setting of correct speed and cueing position for each record, the Beogram’s built-in microcomputer allowed a REPEAT function, which could be programmed for up to 7 plays of the same record.

Drive was provided by a tacho-controlled DC motor via a flat rubber belt, so turntable speed was always accurate and could not be affected by fluctuations in the mains supply.

When used with Beomaster 2000, an electronic data-link allowed Beogram 2000 to be operated by the Beomaster’s controls. Beogram 2000 could also be made up as part of the Beosystem 2000, when linked together with other compatible Bang & Olufsen products.

BeoGram 2000 (1983) Product Details

Type Numbers

5821 (1983 - March 1988)
5825 (AUS) (1983 - Sept 1986)
5823 (US) (1983 - May 1987)

Designer

Manufactured

1983 - 1987

Colour Options

Aluminium

BeoGram 2000 (1983) Product Specification

Speeds: 33 – 45 rpm
Speed deviation < +/- 0.2 %

Wow and flutter DIN < +/- 0.07 %
Rumble DIN weighted > 75 dB
Rumble DIN unweighted > 55 dB

MMC 4 cartridge
Recommended tracking force 12 mN / 1.2 g

Power supply:
5821-5825: 190 – 265 (90 – 130) V
2823: 120 V
Power consumption: < 10 W

Dimensions W x H x D: 42 x 8 x 32.4cm
Weight 6 kg

Link compatibility: Data Link

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

BeoGram 2000 (1983) FAQs
