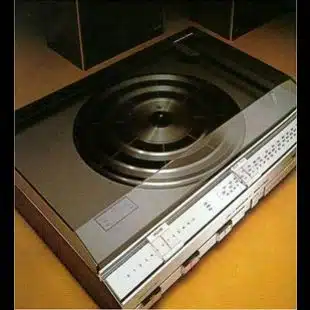

BeoCenter 2800

Beocenter 2800 was a unique combination of FM/AM tuner, a 2 x 25 watts RMS hi-fi power amplifier and record player. The tuner section offered Long and Medium wave reception as well as FM. There were facilities for pre-setting the four FM stations you listen to most frequently. Ceramic filters, AFC, split-supply output and a phase-locked loop decoder were some of the features that ensured outstanding reception and reproduction of even distant stations.

The record player was fully automatic – one master switch controlled all operations. The anti-skating device was built into the arms suspension and worked automatically. Electronic Servo Drive (ESD) ensured constantly correct speed. There were sockets for tape deck, two sets of stereo speakers and headphones.

This was a compact, space-saving unit which was easy to use thanks to automatic circuits and logical controls. Beocenter 2800 could be made up as part of the Beosystem 2800, when linked together with other compatible Bang & Olufsen products

BeoCenter 2800 Product Details

Type Numbers

2630 (1978 - June 1980)

Designer

Manufactured

1978 - 1980

Colour Options

Rosewood, Teak, White

BeoCenter 2800 Product Specification

Power output RMS DIN 2 x 25 watts / 4 ohms, 2 x 20 watts / 8 ohms
Harmonic distortion < 0.1 %
Intermodulation < 0.15 %
Frequency range 20 – 30,000 Hz
FM tuner range FM 87.5 – 108 MHz
LW 150 – 350 kHz
MW 520 – 1610 kHz

Record player:
Automatic record-size 17 and 30 cm
Speeds 33 – 45 rpm
Wow and flutter < +/- 0.09 %
Rumble unweighted > 42 dB
Rumble weighted > 62 dB
Speed deviation < 0.05 %
Speed control range > +/- 3 % Pickup:
MMC 3000 Stylus – spherical diamond
Radius of curvature 15 µm
Frequency range 20 – 20,000 Hz +2 -3 dB
Stylus pressure range 0 – 2 g

Power supply:
110 – 130 – 220 – 240 V
Power consumption 20 – 150 W
Dimensions W x H x D 50 x 12 x 37cm
Weight 13 kg

Connections: Tape recorder DIN
Headphone jack
