Posted on

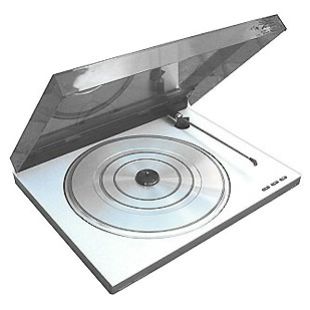

BeoGram RX2

Bang & Olufsen Beogram RX2

BeoGram RX2

This fully-featured radial record player brought an extra dimension to all kinds of music systems.

It was ideal for those who love partying, with automatic anti-skating to prevent distortion, and Bang & Olufsen’s special chassis suspension which made the record player virtually ‘dance-proof’.

There was also automatic registration of record size and speed. Fine quality sound reproduction was provided by the lightweight tone-arm.

This deck was the last of the B&O radial tracking decks and was closely related to the excellent Beogram 5000. This is an excellent choice as a source for vinyl in a modern system requiring very little in the way of set up yet offering good audio performance.

Mounting Options

Bang & Olufsen’s preferred supplier for brackets and stands, STBbrackets, have made a wall mount solution as a general option for Bang & Olufsen Turntables. Distributed throughout the World by the Bang & Olufsen store network, the STB option adds to the diversity of mounting options and positions available.

»Wall Mounting Bracket

Wall Bracket / Shelf for BeoGram

A universal shelf that will support all Bang & Olufsen turntables from the past 30 years. Including three cable entry points to allow you to bring cables from below the shelf or through the wall.

BeoGram RX2 Product Details

Type Numbers

5831 (1985 – May 1991)
5833 (USA) (1985 – May 1991)

Designer

Manufactured

1985 – 1991

Colour Options

Silver

BeoGram RX2 Product Specification

Pickup MMC 1-5

Wow and flutter, DIN < 0.07 %
Rumble weighted > 75 dB
Rumble DIN unweighted > 55 dB
Speeds 33 – 45 rpm
Speed deviation < +/- 0.2 %

Power supply:
5831: 220 – 240V
5833: 110 – 120V
Power consumption < 10 W
Dimensions W x H x D: 42 x 8 x 32.5cm
Weight 6 kg
Link compatibility: Data Link

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

    Type

User Guide

EN

BeoGram RX2 user Guide

Service Manual

Multi

BeoGram RX2 Service Manaul

BeoGram RX2 FAQs

Please let us know

Posted on

BeoGram 5000

Bang & Olufsen BeoGram 5000

BeoGram 5000

Beogram 5000’s radial-tracking record deck was the perfect match for Beomaster 5000. Operation was entirely automatic. One touch on the PLAY control started the motor and activated the deck’s logic circuits which assessed the size and correct speed of the record and instructed the arm to lower the stylus into the run-in groove.

This was a very fast-acting yet highly accurate control system which gave you music within about 8 seconds – far more quickly and gently than the human hand could guarantee. This system was also error-proof; for example, it was impossible to lower the stylus unless there was a record on the turntable, so expensive mistakes and accidents just couldn’t happen.

At the end of the record the motor automatically switched itself off and the arm returned to its rest position. If you wished, you could hear the same record over and over again automatically; it was necessary to just press PLAY once for each repeat required. Up to 7 consecutive performances could be pre-programmed in this way.

Beogram 5000’s sound quality was everything you would expect from so sophisticated a unit. The ultra-lightweight arm had built-in anti-skating and tracking weight adjustment. It carried the MMC 4 pickup with a framed elliptical diamond stylus that tracked the record groove accurately and with minimum wear.

As a final grace note there was also an interior light that switched itself on automatically when the lid was opened and stayed alight while the unit was in play.

When connected to Beomaster 5000, Beogram 5000 offered the added convenience of full infra-red remote control. The record deck could also be used as part of the Beosystem 5000.

Finish: brushed aluminium, dark grey translucent dust cover

Mounting Options

Bang & Olufsen’s preferred supplier for brackets and stands, STBbrackets, have made a wall mount solution as a general option for Bang & Olufsen Turntables. Distributed throughout the World by the Bang & Olufsen store network, the STB option adds to the diversity of mounting options and positions available.

»Wall Mounting Bracket

Wall Bracket / Shelf for BeoGram

A universal shelf that will support all Bang & Olufsen turntables from the past 30 years. Including three cable entry points to allow you to bring cables from below the shelf or through the wall.

BeoGram 5000 Product Details

Type Numbers

5803 (1983 – Dec 1986)
5805 (AUS) (1983 – Aug 1984)
5806 (J) (1983 – June 1984)
5804 (USA) (1983 – May 1986)

Designer

Manufactured

1983 – 1986

Colour Options

Aluminium

BeoGram 5000 Product Specification

Speeds: 33 – 45 rpm
Speed deviation < +/- 0.2 %

MMC 4 cartridge recommended tracking force: 12 mN /1.2 g
Stylus Elliptical diamond 6 x 17 µm

Wow and flutter, DIN: < +/- 0.07 %
Wow and flutter, WRMS: < +/- 0.035 %
Rumble DIN weighted: > 75 dB
Rumble DIN unweighted: > 55 dB

Power supply
5803: 220V
5804: 120V
5805: 240V
5806: 100V
Power consumption: < 10 W
Dimensions W x H x D: 42 x 7.5 x 32.4cm

Link compatibility: Data Link

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

    Type

User Guide

EN

BeoGram 5000 User Guide

Service Manual

Multi

BeoGram 5000 Service Manual

BeoGram 5000 FAQs

Please let us know

Posted on

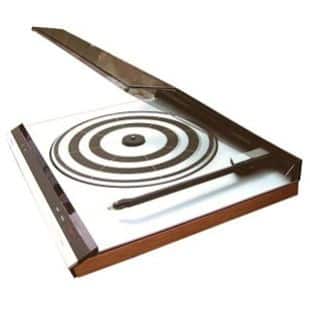

BeoGram 2200

Bang & Olufsen BeoGram 2200

BeoGram 2200

Beogram 2200/2400 were identical except that, when coupled to the Beomaster 2400, Beogram 2400 could also be operated by remote control.



To play records on either model it was necessary to simply press START and let the automatic system do the rest. As an additional safeguard, all functions could be operated with the protective lid closed. The electronic servo drive system kept turntable speed constant and correct, even during fluctuations in the mains supply. Careful arm geometry ensured that tracking angle was kept well below the level where it could affect the quality of the reproduced sound.

Bias effect was compensated automatically and needed no adjustment. The extreme lightness of the arm, together with the highly polished elliptical diamond carried by the MMC 20E pickup in the 2200, resulted in an unusually low Effective Tip Mass (ETM). This means that your records would suffer very little wear, even after continual playing. Neither would they be damaged if the stylus was accidentally skidded across the surface.

Beogram 2200/2400 could be made up as part of the Beosystem 2200 when linked together with other compatible Bang & Olufsen products.

Mounting Options

Bang & Olufsen’s preferred supplier for brackets and stands, STBbrackets, have made a wall mount solution as a general option for Bang & Olufsen Turntables. Distributed throughout the World by the Bang & Olufsen store network, the STB option adds to the diversity of mounting options and positions available.

»Wall Mounting Bracket

Wall Bracket / Shelf for BeoGram

A universal shelf that will support all Bang & Olufsen turntables from the past 30 years. Including three cable entry points to allow you to bring cables from below the shelf or through the wall.

BeoGram 2200 Product Details

Type Numbers

5721 (1978 – Feb 1980) 5723 (F) (1978 – March 1980)

Designer

Manufactured

1978 – 1980

Colour Options

Rosewood, Teak, White, Oak

BeoGram 2200 Product Specification

Speeds 33 – 45 rpm
Speeds control range > +/- 3 %
Wow and flutter < 0.06 %
Rumble weighted > 65 dB
Rumble, unweighted > 45 dB
Drive system Flat Belt
Motor Servo controlled DC
Power supply 220 (110) V
Power consumption 8 W
Dimensions W x H x D 44 x 8.5 x 37cm
Weight 6.5 kg
Pick-up MMC 20 E
Recommended tracking force 15 mN / 1.5 g
Frequency range 20 – 20,000 Hz +/- 2.5 dB
Stylus: elliptical diamond
Pick-up MMC 20 EN
Recommended tracking force 12 mN / 1.2 g
Frequency range 20 – 20,000 Hz +/- 2 dB
Stylus: elliptical naked diamond

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

    Type

Service Manual

EN

BeoGram 2200 Service Manual

BeoGram 2200 FAQs

Please let us know

Posted on

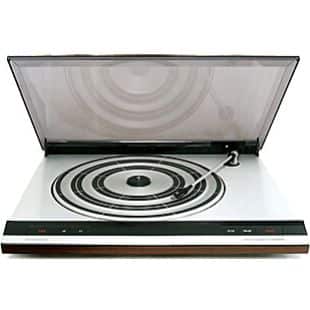

BeoGram 2202

Bang & Olufsen BeoGram 2202

BeoGram 2202

Beogram 2202 and Beogram 2402 replaced models 2200 and 2400 and were eventually replaced by Beogram 2404 (looking the same externally as the former units) in 1983.

To play records on the fully-automatic Beogram 2202/2402 decks, it was necessary to simply press “start” and let the integrated systems do the rest. As an additional safeguard, all functions could be operated with the protective dust lid closed.

Thanks to the fine polish of their elliptical diamonds, and the low mass of the arm, these Beograms got the very best from your records without inflicting any significant wear. Careful arm geometry ensured that tracking error was kept well below the level where it could affect sound quality. Skating effect was compensated automatically. Beogram 2202 was fitted with an MMC 20E pickup, while Beogram 2402 has an MMC 20EN. When coupled to the Beomaster 2400-2 FM stereo receiver, Beogram 2402 could be operated by remote control.

Beogram 2202 / 2402 could be made up as part of the Beosystem 1900 or Beosystem 2400, when linked together with other compatible Bang & Olufsen products.

Mounting Options

Bang & Olufsen’s preferred supplier for brackets and stands, STBbrackets, have made a wall mount solution as a general option for Bang & Olufsen Turntables. Distributed throughout the World by the Bang & Olufsen store network, the STB option adds to the diversity of mounting options and positions available.

»Wall Mounting Bracket

Wall Bracket / Shelf for BeoGram

A universal shelf that will support all Bang & Olufsen turntables from the past 30 years. Including three cable entry points to allow you to bring cables from below the shelf or through the wall.

BeoGram 2202 Product Details

Type Numbers

5741

Designer

Manufactured

1981 – 1981

Colour Options

Rosewood, Teak, White, Oak

BeoGram 2202 Product Specification

Pickup Cartridge: MMC 20E
Recommended tracking force: 15mN/1,5g
Speeds/control range: 33 – 45rpm/+/-3%
Wow & flutter: <+/- 0,06%
Rumble weighted: >65dB
Rumble unweighted: >45dB
Motor/drive system: Servo-controlled DC/belt
Power supply (50-60 Hz) consumption: 180 – 265 (110)V/8W
Dimensions: 44 x 8,5 x 37cm/6,5kg



Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

    Type

User Guide

EN

BeoGram 2202 User Guide

BeoGram 2202 FAQs

Please let us know

Posted on

BeoGram 2402

Bang & Olufsen BeoGram 2402

BeoGram 2402

Beogram 2202 and Beogram 2402 replaced models 2200 and 2400 and were eventually replaced by Beogram 2404 (looking the same externally as the former units) in 1983.

To play records on the fully-automatic Beogram 2202/2402 decks, it was necessary to simply press “start” and let the integrated systems do the rest. As an additional safeguard, all functions could be operated with the protective dust lid closed.

Thanks to the fine polish of their elliptical diamonds, and the low mass of the arm, these Beograms got the very best from your records without inflicting any significant wear. Careful arm geometry ensured that tracking error was kept well below the level where it could affect sound quality. Skating effect was compensated automatically. Beogram 2202 was fitted with an MMC 20E pickup, while Beogram 2402 has an MMC 20EN. When coupled to the Beomaster 2400-2 FM stereo receiver, Beogram 2402 could be operated by remote control.

Beogram 2202 / 2402 could be made up as part of the Beosystem 1900 or Beosystem 2400, when linked together with other compatible Bang & Olufsen products.

Mounting Options

Bang & Olufsen’s preferred supplier for brackets and stands, STBbrackets, have made a wall mount solution as a general option for Bang & Olufsen Turntables. Distributed throughout the World by the Bang & Olufsen store network, the STB option adds to the diversity of mounting options and positions available.

»Wall Mounting Bracket

Wall Bracket / Shelf for BeoGram

A universal shelf that will support all Bang & Olufsen turntables from the past 30 years. Including three cable entry points to allow you to bring cables from below the shelf or through the wall.

BeoGram 2402 Product Details

Type Numbers

5742

Designer

Manufactured

1981 – 1981

Colour Options

Rosewood, Teak, White, Oak

BeoGram 2402 Product Specification

Pickup Cartridge: MMC 20EN
Recommended tracking force: 12mN/1,2g
Speeds/control range: 33 – 45rpm/+/-3%
Wow & flutter: <+/- 0,06%
Rumble weighted: >65dB
Rumble unweighted: >45dB
Motor/drive system: Servo-controlled DC/belt
Power supply (50-60 Hz) consumption: 180 – 265 (110)V/8W
Dimensions: 44 x 8,5 x 37cm/6,5kg

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

    Type

User Guide

EN

BeoGram 2402 User Guide

BeoGram 2402 FAQs

Please let us know

Posted on

BeoGram 2404

Bang & Olufsen BeoGram 2404

BeoGram 2404

An updated 2402 but with the revised lightweight arm designed to take the MMC5 cartridge.

Rather an afterthought, the 2404 was designed to work with the Beomaster 2400-2 and was fitted with the 7 pin DIN plug to allow control by remote. This was not compatible with Datalink. The last UK model of this design and interesting simply because it had the new cartridge but the old remote control software unlike the Beogram 6000 which boasted the new software and old cartridge.

Mounting Options

Bang & Olufsen’s preferred supplier for brackets and stands, STBbrackets, have made a wall mount solution as a general option for Bang & Olufsen Turntables. Distributed throughout the World by the Bang & Olufsen store network, the STB option adds to the diversity of mounting options and positions available.

»Wall Mounting Bracket

Wall Bracket / Shelf for BeoGram

A universal shelf that will support all Bang & Olufsen turntables from the past 30 years. Including three cable entry points to allow you to bring cables from below the shelf or through the wall.

BeoGram 2404 Product Details

Type Numbers

5761 (1980 – Nov 1983)
5765 (AUS) (1980 – Sept 1983)
5764 (J) (1980 – Sept 1983)
5763 (USA) (1980 – Oct 1983)

Designer

Manufactured

1980 – 1983

Colour Options

Rosewood, Teak, White, Oak

BeoGram 2404 Product Specification

Speeds :33 – 45 rpm.
Speed deviation < 0.05 %
Speed control range > +/- 3 %
MMC 5 cartridge
Recommended tracking force 15 mN /1.5g
Wow and flutter DIN < +/- 0.06 %
Rumble DIN weighted > 65 dB
Rumble DIN unweighted > 45 dB
Power consumption < 10 watts
Dimensions: 44.5 x 8.9 x 36.8cm / Weight 6.5 kg

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

    Type

User Guide

EN

BeoGram 2404 User Guide

BeoGram 2404 FAQs

Please let us know

Posted on

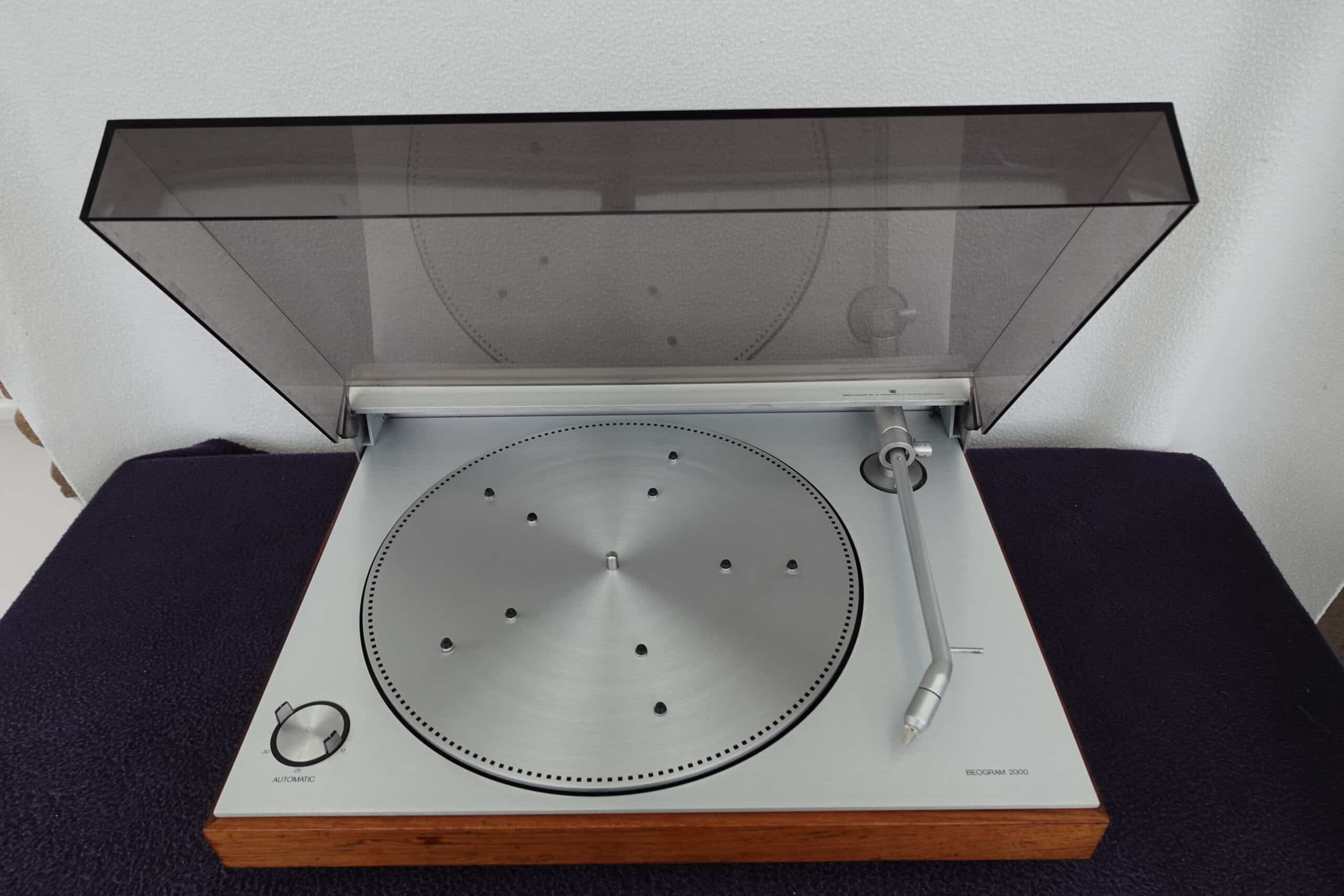

BeoGram 2000 (1974)

BeoGram 2000 (1974)

Beogram 2000 was an integrated two-speed (33rpm and 45 rpm) high-fidelity stereo record player with high specifications. But it was the simple, easy operation which was the most unique feature in Beogram 2000. A single master control executed all the essential functions.

Jacob Jensen

1974 - 1976

Rosewood, Teak, White, Oak

All you need to do was to select the size of a record, 7″, 10″ or 12″ and press the button marked LIFT. Immediately, the turntable began to rotate at the correct speed (33 or 45 rpm) and the pick-up lowered into the first groove. At the end of the record, the pick-up arm returned to its resting position and the turntable switched off. Beogram 2000 was fitted with its own pick-up cartridge, SP 10A. This had a spherical naked diamond stylus.

Recommended- stylus pressure was 2 g. Its frequency range was 20-25.000 Hz ±3 dB. Distortion was lower than 1%, wow and flutter lower than 0.12% and rumble better than 60dB. Thanks to the pendulum suspension of the turntable and its pick-up am Beogram 2000 was insensitive to vibrations. A transparent dust lid was fitted to Beogram 2000. It could be opened at any angle up to 60 degrees or you could slide it off with ease.

This deck finally gave the ‘peg platter’ decks a proper lid. Not quite as advanced as the 1202, it was in all ways apart from the lid, a Beogram 1203.

BeoGram 2000 (1974) Product Details

Type Numbers

5240 (1974 - Feb 1976)
5244 (1974 - Feb 1976)

Designer

Manufactured

1974 - 1976

Colour Options

Rosewood, Teak, White, Oak

BeoGram 2000 (1974) Product Specification

Sound system Stereo, matrix
Output 2 x 1 mV
Speeds 33 – 45 rpm
Tonearm: radial
Automatic pickup movement: Yes
Automatic speed selection: Yes
Pick-up cartridge: SP10A
Recommended stylus pressure: 2 g
Stylus Spherical


Pick-up: SP 10 A
Stylus Spherical naked diamond
Stylus pressure range 0 – 3.5 g
Recommended stylus pressure 2 g

Wow and flutter DIN: < +/- 0.07 %
Rumble DIN unweighted: > 42 dB
Rumble DIN weighted: > 62 dB

Speed deviation: < 0.1 %
Speed control range: > 6 %
Dial for speed Stroboscope: 295mm
Tracking error: < 0.126° / cm
Lift system: mechanical
Antiskating Inclined channelling inside bearing
Motor: asynchronous
Drive system: idler wheel and belt
Turntable: 30cm / 1.4 kg

Power supply: 220 (110) V
Power consumption: 10 W

Dimensions W x H x D: 44 x 12 x 33cm
Weight 6 kg

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

Type

    Model

User Guide

EN


BeoGram 2000 User Guide

User Guide


EN


BeoGram 2000 User Guide

Service Manual

Multi

5811, 5813, 5814, 5815

BeoGram 2000 Service Manual

Service Manual

Multi

5239, 5240

BeoGram 2000 Service Manual

BeoGram 2000 (1974) FAQs

Photos’ supplied by BeoVintage 👍

Posted on

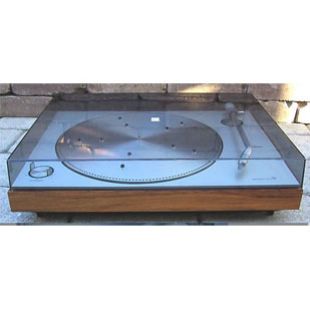

BeoGram 1203

Bang & Olufsen BeoGram 1203

BeoGram 1203

Beogram 1203 was an automatic, high-fidelity stereo record-player with high specifications. It was beautifully-styled and extremely easy to operate. All you need to do was select the record size: 7″, 10″ or 12″ and press a button. The turntable automatically selected the correct speed: 33% or 45, and the pickup was lowered into the first groove.

At the end of the record, the arm automatically returned to its resting position and the turntable switched off. Beogram 1203 was fitted with its own pick-up cartridge, the SP 14A which had a spherical diamond stylus and a stylus pressure of 2g. Its frequency range was 20,000 Hz. ±3 dB. Distortion was lower than 1%, wow and flutter lower than ±0.15 % and rumble better than 58dB. The turntable and pick-up arm had a pendulum suspension which made the record-player insensitive to vibrations. A transparent dust lid and a spindle adaptor for playing centreless records were supplied with Beogram 1203.

It was in fact rather simpler than its immediate predecessor, the 1202 , and was based on the Beogram 2000 rather than the top of the range 3000.

Mounting Options

Bang & Olufsen’s preferred supplier for brackets and stands, STBbrackets, have made a wall mount solution as a general option for Bang & Olufsen Turntables. Distributed throughout the World by the Bang & Olufsen store network, the STB option adds to the diversity of mounting options and positions available.

»Wall Mounting Bracket

Wall Bracket / Shelf for BeoGram

A universal shelf that will support all Bang & Olufsen turntables from the past 30 years. Including three cable entry points to allow you to bring cables from below the shelf or through the wall.

BeoGram 1203 Product Details

Type Numbers

5239 (1974 – July 1975)
5243 (1974 – Aug 1976)

Designer

Manufactured

1974 – 1976

Colour Options

Rosewood, Teak, White

BeoGram 1203 Product Specification

Speeds: 33 – 45 rpm.
Pickup-arm System Ball bearing
Cueing Control Mechanical
Drive system Idler wheel and belt
Motor Asynchronous

Wow and flutter < +/- 0.15 %
Rumble A: > 37 dB; B: > 58 dB
Speed Control Range: > 6 %
Recommended, Stylus Pressure 2 g
Stylus Pressure Range 0 – 3.5 g

Power supply:110 – 130 – 220 – 240 V
50 Hz, 10 W
Dimensions H x W x D 12 x 44 x 33cm
Weight 7.2 kg

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

    Model

User Guide

EN

BeoGram 1203

User Guide

Service Manual

EN

BeoGram 1203

Service Manual

BeoGram 1203 FAQs

Please let us know

Posted on

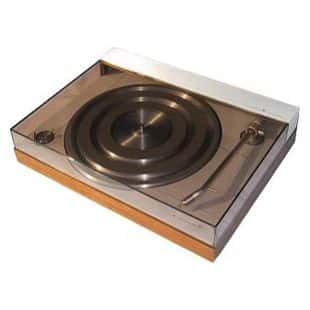

BeoGram 3000 (1972)

Bang & Olufsen BeoGram 3000

BeoGram 3000 (1972)

Beogram 3000 was an automatic high-fidelity stereo record-player with specifications which easily complemented those of Beomaster 3000-2.

It was fitted with an SP 12A pick-up cartridge which had an elliptical naked diamond stylus, with a stylus pressure of 1,2g. Frequency range was 20 – 25000 Hz ±3 dB and distortion was lower than 1%. Wow and flutter was less than ±0.09% and rumble was better than 62dB. Beogram 3000 was easy to operate: you simply selected the size of record you intend to play – 7″, 10″ or 12″ – and press a button. The record-player automatically selected the record speed, 33 or 45 rpm, and lowered the pick-up into the first groove.

When the record ended, the pick-up arm lifted up, returned to its resting position and the turntable switched off. The turntable and pickup arm had a pendulum suspension which made the record-player insensitive to vibrations. The deep furrows in the turntable made it easy to pick up records. A hinged dust lid was fitted; it could be set at any angle up to around 60 degrees or completely removed by a simple sliding action.

Mounting Options

Bang & Olufsen’s preferred supplier for brackets and stands, STBbrackets, have made a wall mount solution as a general option for Bang & Olufsen Turntables. Distributed throughout the World by the Bang & Olufsen store network, the STB option adds to the diversity of mounting options and positions available.

»Wall Mounting Bracket

Wall Bracket / Shelf for BeoGram

A universal shelf that will support all Bang & Olufsen turntables from the past 30 years. Including three cable entry points to allow you to bring cables from below the shelf or through the wall.

BeoGram 3000 (1972) Product Details

Type Numbers

5210 (1972 – Dec 1975)
5211 (1972 – Dec 1975)
5228 (1972 – Sept 1975)
5241 (1972 – Sept 1975)
5231 (USA) (1972 – Sept 1975)

Designer

Manufactured

1972 – 1975

Colour Options

Rosewood, Teak

BeoGram 3000 (1972) Product Specification

Speeds: 33,3 and 45 rpm
Rumble Better than 60 dB (DIN B)
Wow and flutter +/- 0.06% RMS



Vernier adjustment 6%
Antiskating device: built-in
Stylus pressure adjustment 0 – 3.5 g (ponds)
Pickup: SP 12 A
Stylus pressure 1.2 g (pond)
Output: 5 mV – 1000 Hz / 47 k ohms
Voltage: 110 – 130 / 220 – 240 V AC
Power consumption: 10 W
Dimensions W x H x D 44 x 11.5 x 33cm
Accessories: Pre-amplifier Type 8905306

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

Type

    Type

User Guide

EN


BeoGram 3000 User Guide

User Manual

EN


BeoGram 3000 User Guide

User Manual

EN


BeoGram 3000 User Guide

Service Manual Thorens

Multi

Thorens

BeoGram 3000

Service Manual

Service Manual

Multi

5237, 5228

BeoGram 3000

Service Manual

Service Manual

EN

5237, 5228


BeoGram 3000

Service Manual

Service Manual

EN

5901, 5903, 5904, 5905


BeoGram 3000

Service Manual

BeoGram 3000 (1972) FAQs

Please let us know

Posted on

BeoCenter 8000

Bang & Olufsen BeoCenter 8000

BeoCenter 8000

Beocenter 8000 gave you a powerful receiver – with CD player and cassette recorder hidden under covers which glided to the side when you wished to use them. Bang & Olufsen’s high quality and distinguished design made a dexterous duo with this Beocenter. Grace and simplicity emphasised Bang & Olufsen’s basic principle that technology exists for the sake of humankind – and not the other way around!

Easy Operation:

Light touches on Beocenter 8000 gave you free access to the simple operation. The illuminated display led you through all the functions by showing you what to do at every step. If you preferred, you could also use Beolink 1000 which controlled all the functions from a distance.

FM/AM Receiver:

At the core of Beocenter 8000 was the receiver – the ‘command centre’ of the system. Here you could preset up to 20 FM/AM stations which you could locate easily by choosing a number from 1 – 20 on the display panel.

CD player:

Beocenter 8000’s CD player accepted both 12cm and 8cm compact discs. At any time, you could choose a single track, or change the order in which you wanted to hear the tracks. The option was there too to skip a track.

Cassette recorder:

Both recording and playback on the cassette recorder in the Beocenter 8000 offered the highest quality. One reason was Bang & Olufsen’s patented HX-PRO system which ensures optimal sound reproduction, particularly in the sensitive treble range.

When you were listening to a tape, you could change the listening order of the tracks. You could skip individual tracks, or skip to a certain track regardless of where it was on the tape. Auto Reverse is so sophisticated that you will never hear the tape change sides unless you really listen for it.

The cassette recorder automatically registered the type of tape you were using. And you could choose Dolby B or Dolby C Noise Reduction when you recorded.

Connections: Beocenter 8000 had connections for an extra cassette recorder plus two pairs of speakers. Thee was also a contact for you to connect a turntable, for example Beogram 9500.

Features: CD player with programming, tape recorder with auto reverse, FM/AM radio, finger touch control, optional Beolink 1000 remote control operation, connections for headphones, optional BeoStand.

BeoCenter 8000 Product Details

Type Numbers

2551 (EU)
2552 (EU)

Designer

Manufactured

1992 – 1993

Colour Options

Grey

BeoCenter 8000 Product Specification

Amplifier:
Long-term max. output power IEC 2 x 80 watts / 8 ohms
Total harmonic distortion IHF < 0.1 % & 30 watts 20 – 20,000 Hz
Dynamic headroom 1 dB / 8 ohms
Intermodulation IHF < 0.1 %

Bass control at 40 Hz: +/- 10 dB
Treble control at 12,500: Hz +/- 8 dB

Tuner:
FM range 76 – 90 MHz (Type 2509, 2513)
87.5 – 108 MHz (Type 2506, 2508, 2510, 2511, 2512, 2514)
LW range 2506, 2511: 150 – 350 kHz
MW range 2506, 2508, 2509, 2510, 2511, 2512, 2513, 2514520 – 610 kHz

Tape recorder:
Compact cassette C46 – C120
Recording system HX PRO
Tape head Sendust
Wow and flutter DIN < 0.15 %
Frequency range chrome 30 – 18,000 Hz +/- 3 dB Signal-to-noise ratio CCIR/ARM
Metal Dolby NR B:>64 dB, C: >73 dB
Chrome Dolby NR B:>65 dB, C: >74 dB
Ferro Dolby NR B:>63 dB, C: >72 dB
Compact disc player:
Frequency range 3 – 20,000 Hz +/- 0.3 dB
Signal-to-noise ratio > 100 dB / 110 dB A-weighted
Dynamic range > 96 dB
Harmonic distortion 0.0025 % at 0 dB
0.0025 % at -20 dB
Channel separation > 101 dB
Converter system 2 x 16 bit, 4 x oversampling
Low pass filter analogue Bessel

Power supply: 110 – 130 – 220 – 240 voltage switch
Power consumption: max. 200 W
Dimensions W x H x D: 76 x 11 x 34 cm
Weight 14 kg

Connections: Audio Link Tape 2, Phono (RIAA built-in)
Audio Aux Link Beovision, 7-pin
Speaker Beovox speakers, 2 sockets 2-pins

Link compatibility: None

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

    Type

User Guide

EN

BeoCenter 9500 User Guide

Setup Guide

EN

BeoCenter 9500 Setup Guide

Door Cord

Multi

BeoCenter 9500 Doory Cord

BeoCenter 8000 FAQs

BeoCenter displays "CODE"

This usually happens if you have replaced the S/W or the lithium battery has been replaced or needs replacing.

Fix the battery or RAM and then:

  • Using a BeoLink 1000/Beo4 press:1271
  • After 3 seconds, disconnect the 9500 from the mains and then reconnect. – Done!
