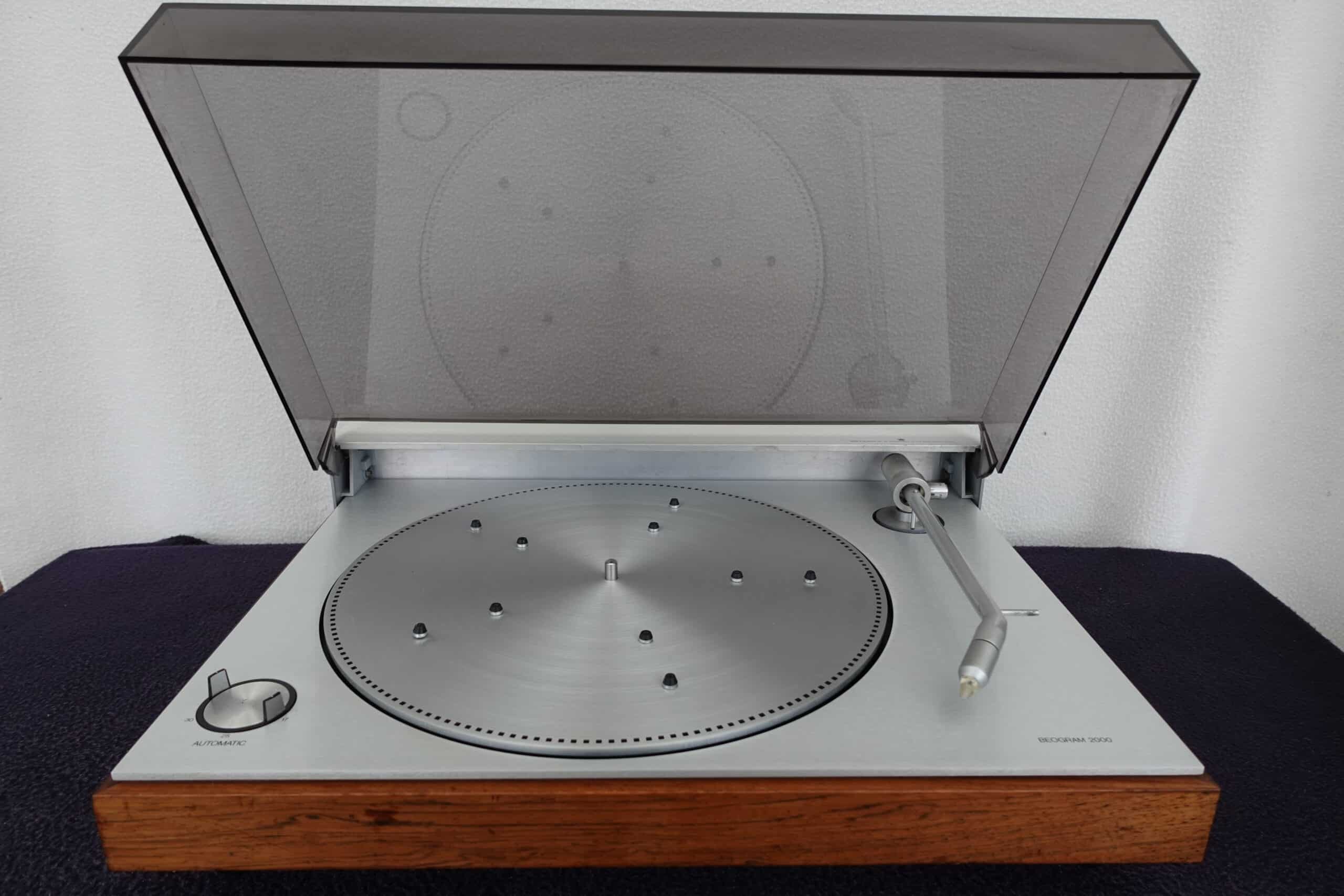

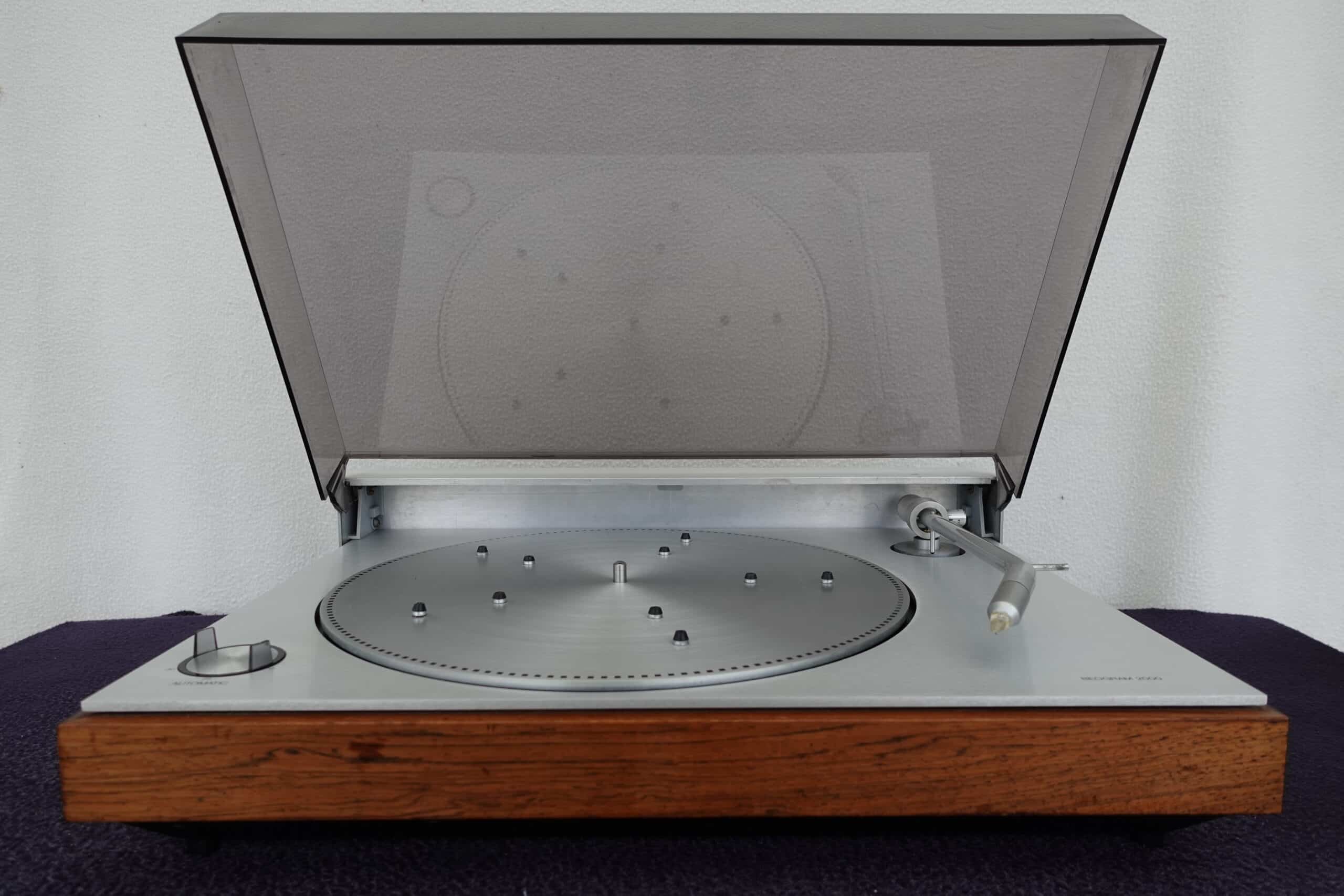

BeoGram 2000 (1974)

Beogram 2000 was an integrated two-speed (33rpm and 45 rpm) high-fidelity stereo record player with high specifications. But it was the simple, easy operation which was the most unique feature in Beogram 2000. A single master control executed all the essential functions.

Jacob Jensen

1974 - 1976

Rosewood, Teak, White, Oak

All you need to do was to select the size of a record, 7″, 10″ or 12″ and press the button marked LIFT. Immediately, the turntable began to rotate at the correct speed (33 or 45 rpm) and the pick-up lowered into the first groove. At the end of the record, the pick-up arm returned to its resting position and the turntable switched off. Beogram 2000 was fitted with its own pick-up cartridge, SP 10A. This had a spherical naked diamond stylus.

Recommended- stylus pressure was 2 g. Its frequency range was 20-25.000 Hz ±3 dB. Distortion was lower than 1%, wow and flutter lower than 0.12% and rumble better than 60dB. Thanks to the pendulum suspension of the turntable and its pick-up am Beogram 2000 was insensitive to vibrations. A transparent dust lid was fitted to Beogram 2000. It could be opened at any angle up to 60 degrees or you could slide it off with ease.

This deck finally gave the ‘peg platter’ decks a proper lid. Not quite as advanced as the 1202, it was in all ways apart from the lid, a Beogram 1203.

BeoGram 2000 (1974) Product Details

Type Numbers

5240 (1974 - Feb 1976)
5244 (1974 - Feb 1976)

Designer

Manufactured

1974 - 1976

Colour Options

Rosewood, Teak, White, Oak

BeoGram 2000 (1974) Product Specification

Sound system Stereo, matrix
Output 2 x 1 mV
Speeds 33 – 45 rpm
Tonearm: radial
Automatic pickup movement: Yes
Automatic speed selection: Yes
Pick-up cartridge: SP10A
Recommended stylus pressure: 2 g
Stylus Spherical


Pick-up: SP 10 A
Stylus Spherical naked diamond
Stylus pressure range 0 – 3.5 g
Recommended stylus pressure 2 g

Wow and flutter DIN: < +/- 0.07 %
Rumble DIN unweighted: > 42 dB
Rumble DIN weighted: > 62 dB

Speed deviation: < 0.1 %
Speed control range: > 6 %
Dial for speed Stroboscope: 295mm
Tracking error: < 0.126° / cm
Lift system: mechanical
Antiskating Inclined channelling inside bearing
Motor: asynchronous
Drive system: idler wheel and belt
Turntable: 30cm / 1.4 kg

Power supply: 220 (110) V
Power consumption: 10 W

Dimensions W x H x D: 44 x 12 x 33cm
Weight 6 kg

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

Type

    Model

User Guide

EN


BeoGram 2000 User Guide

User Guide


EN


BeoGram 2000 User Guide

Service Manual

Multi

5811, 5813, 5814, 5815

BeoGram 2000 Service Manual

Service Manual

Multi

5239, 5240

BeoGram 2000 Service Manual

BeoGram 2000 (1974) FAQs

Photos’ supplied by BeoVintage 👍
