Posted on

Beovox S55

Bang & Olufsen Beovox S55

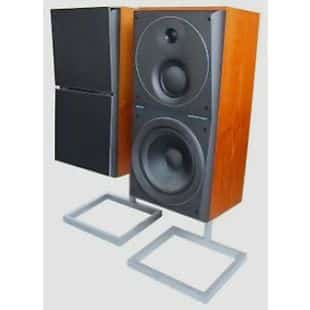

Beovox S55

Beovox S55 was an ideal bookshelf speaker, but could also be used as a wall-mounted or free-standing model with the optional fittings available separately.

The pressure chamber cabinet contained a 21cm bass driver, an 11,5 mid-range/phase-link unit and a 2,5cm tweeter. Power handling was 55 watts RMS.




Beovox S55 Product Details

Type Numbers

6426 (to March 1987)

Designer

Manufactured

1981 - 1987

Colour Options

Rosewood, Teak, White, Oak

Beovox S55 Product Specification

RMS power handling capacity: 55 W
Music power handling capacity: 75 W
Impedance: 8 ohms
Frequency response 4+ -8 dB 50 – 20,000 Hz
Frequency response +/- 4 dB 60 – 17,000 Hz
Sensitivity 1W: 4 W
Distortion 250 – 1000 Hz: <1.5%
Distortion > 1000 Hz: <1%
Woofer: 21cm
Phase-link, mid-range: 11.5cm
Tweeter: 2.5 cm dome
Net volume: 20 litre
Gross volume: 32 litre
Dimensions W x H x D: 26.5 x 52.5 x 23cm
Weight 8 kg



Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

Beovox S55 FAQs

Please let us know

Posted on

Beovox S50

Bang & Olufsen Beovox S50

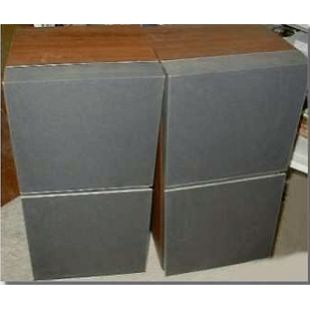

Beovox S50

Uncommon in the UK, the smallest of the range at the time and a two way speaker. Replaced by the S45 which was also downgraded in comparison with a captive lead.

Beovox S50 Product Details

Type Numbers

6415 (to Jan 1982)

Designer

Manufactured

1980 - 1982

Colour Options

Rosewood, Teak

Beovox S50 Product Specification

RMS power handling capacity 50 watts
Music power handling capacity 90 watts

Impedance: 8 ohms
Frequency response 4+ -8 dB 50 – 20,000 Hz
Frequency response +/- 4 dB 70 – 18,000 Hz
Sensitivity: 1W

Distortion 250 – 1000 Hz <1.8%
Distortion > 1000 Hz <1%
Woofer: 21cm, throw +/- 3 mm
Tweeter: 2.5 cm dome
Net volume: 22 litre
Gross volume: 34 litre
Dimensions W x H x D: 26.5 x 53 x 26.5cm
Weight 8 kg

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

Beovox S50 FAQs

Please let us know

Posted on

Beovox S45-2

Bang & Olufsen Beovox S45-2

Beovox S45-2

An exceptional little bookshelf speaker of hi-fi quality with a frequency range of 38 – 20000 Hz and less than 1% harmonic distortion.

You will find these speakers regularly recommended on BeoWorld. They have the same height and width as the lesser S35 speakers but are 3cm deeper and 1kg heavier. This small size difference makes an immense difference to the sound though. The extra filler drive unit adds hugely to the all important midrange sound and this is, to many users’ ears, the best balanced bookshelf speaker made by B&O. What it lacks in ultimate bass, it repays in accuracy and tone. The optional floor stand is elegant and effective and worth hunting out. A capacitor change may be needed to make an old pair sing but you are very unlikely to be disappointed by purchasing a pair of these.

For those in search of more bass, S75s are the bigger brother but lack the sonic purity found in the S45.2. To beat these in this range, you need M100s and a bigger house!

Linear phase sound reproduction. Speaker units include a 20cm woofer, a special 8cm Phase Link unit, and a 2,5cm dome tweeter. Volume 25 litres; weight 7kg.

Beovox S45-2 Product Details

Type Numbers

6312 (to Nov 1982)

Designer

Manufactured

1978 - 1982

Colour Options

Rosewood, Teak

Beovox S45-2 Product Specification

Continuous load: 56 W
Music load: 75 W
Impedance: 4 – 8 ohms
Frequency response +4 -8 dB 38 – 20,000 Hz
Sensitivity: 5W
Gross volume|: 25 litres
Woofer: 20cm
Phase link unit 8cm
Tweeter: 2,5cm
Dimensions W x H x D: 26 x 48 x 21cm
Weight 7 kg

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

Beovox S45-2 FAQs

Please let us know

Posted on

Beovox S4500

Bang & Olufsen Beovox S4500

Beovox S4500

Beovox S4500 type 6318 were 4-8 Ohm speakers delivering 45W (RMS) and 75W (Music Power) These were a late derivation of the S45-2 and co-existed with the later Uniphase range for a year.

Beovox S4500 Product Details

Type Numbers

Please let us know​

Designer

Manufactured

1981 - 1983

Colour Options

Rosewood, Teak

Beovox S4500 Product Specification

Please let us know

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

Beovox S4500 FAQs

Please let us know

Posted on

Beovox S45 (1983)

Bang & Olufsen Beovox S45 (1983)

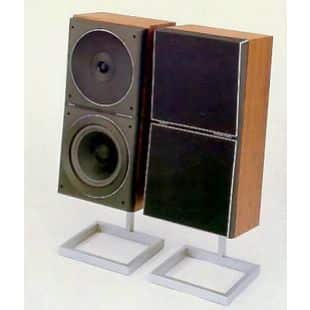

Beovox S45 (1983)

These medium-sized loudspeakers could be placed within a multiple shelving system, on an open shelf or table, mounted on the wall using the optional wall brackets or used as free-standing units by fitting the optional pedestal stands.

The two-unit configuration, with separate drivers for bass/midrange and treble reproduction, offered excellent frequency response and power-handling of 45 watts RMS.

The pressure chamber enclosures were finished in a choice of natural teak, rosewood, oak or white




Beovox S45 (1983) Product Details

Type Numbers

6427

Designer

Manufactured

1983 - 1986

Colour Options

Rosewood.Teak,White, Oak

Beovox S45 (1983) Product Specification

Continuous load: 45 watts
Music load: 65 watts
Impedance: 8 ohms
Frequency range + 4-8 dB: 48 – 20000Hz
Power at 96 dB SPL: 4 watts
Sensitivity 1W: 90 dB
Cabinet: Pressure chamber
Gross volume: 29,5 litre
Woofer: 20cm
Tweeter: 2,5cm
Crossover frequency: 3000 Hz
Dimensions WxHxD: 26,5 x 52,5 x 20cm
Weight: 6,5kg
Accessories: Stand 6017, wall-mounting kit 6014

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

Beovox S45 (1983) FAQs

Please let us know

Posted on

Beovox S45 (1976)

Bang & Olufsen Beovox S45 (1976)

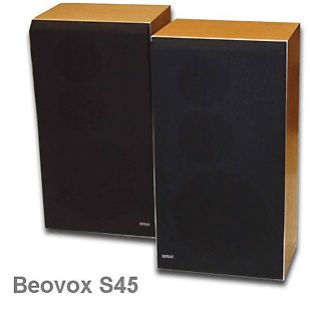

Beovox S45 (1976)

First model to carry this name, these were three way speakers and are easily differentiated from the S45-2 as they have a protruding resin rear and no metal trim on the rear of the cabinet. Otherwise very similar.

Beovox S45 (1976) Product Details

Type Numbers

6302

Designer

Manufactured

1976 - 1977

Colour Options

Rosewood, Teak

Beovox S45 (1976) Product Specification

Please let us know

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

Type

Date

    Type

Service Manual

EN

6302


BeoVox S45 Service Manual


Beovox S45 (1976) FAQs

Please let us know

Posted on

Beovox S30

Bang & Olufsen Beovox S30

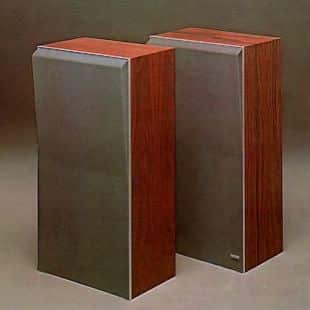

Beovox S30

Beovox S30 and S40 both used a two-unit configuration and pressure chamber design to reproduce music faithfully and clearly.

They handled up to 30 watts and 40 watts respectively and were ideal for mounting within a shelving system. Beovox S40 worked in conjunction with Beosystem 2300 if that is how you wished to use them. They featured a 20cm bass driver (woofer) and a 2,5cm dome treble unit (tweeter) offering wide frequency response and clean, clear sound reproduction.




Beovox S30 Product Details

Type Numbers

Please let us know​

Designer

Manufactured

1975 - 1982

Colour Options

Rosewood, Teak, White, Oak

Beovox S30 Product Specification

Dimensions: 26 x 48 x 18cm

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

Beovox S30 FAQs

Please let us know

Posted on

Beovox S22

Bang & Olufsen Beovox S22

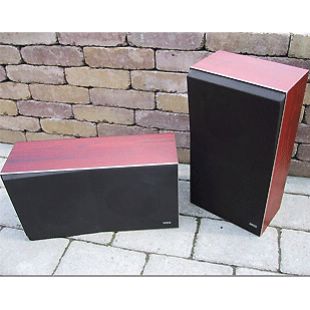

Beovox S22

The smallest of the Uniphase range. These speakers were designed for use with the small music centres and less highly powered receivers in the B&O range.

They were the same external design as the bigger models in the range but in a very compact box. Obviously they had limited bass reproduction but when placed correctly could deliver excellent results.

Beovox S22 Product Details

Type Numbers

6308

Designer

Manufactured

1977 - 1977

Colour Options

Rosewood, Teak

Beovox S22 Product Specification

Description: Continuous load 22 watts
Music load 30 watts

Impedance: 4 – 8 Ohms
Frequency response +4 -8 dB 50 – 20,000 Hz
Sensitivity 6.5 W Net volume 8.4 litre
Gross volume 12.4 litre
Woofer: 16 cm
Tweeter: 2.5 cm

Dimensions W x H x D: 22 x 41 x 15cm
Weight 4 kg

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

Beovox S22 FAQs

Please let us know

Posted on

Beovox S25

Bang & Olufsen Beovox S25

Beovox S25

Beovox S25 were compact speakers produced between 1977 and 1983 with linear phase reproduction, suitable for placement in a small bookshelf. Fitted with a 17cm woofer and a 5cm dome tweeter. Frequency range 65 – 18000 Hz. Volume 12,4 litres, Weight 4kg.

Beovox S25 Product Details

Type Numbers

6310 (to Nov 1980)
6334 (to Oct 1983)

Designer

Manufactured

1977 - 1979

Colour Options

Rosewood, Teak

Beovox S25 Product Specification

Continuous load: 25 W
Music load: 40 W
Impedance: 4 – 8 ohms
Frequency response: +4 -8 dB 60 – 18,000 Hz
Sensitivity: 2.5 W
Gross volume: 12.4 litres
Woofer: 17cm
Tweeter: 5cm
Dimensions W x H x D: 22 x 41 x 15cm
Weight 4 kg

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

Beovox S25 FAQs

Please let us know

Posted on

BeoVox S2002

Bang & Olufsen BeoVox S2002

BeoVox S2002

The crowning glory of Beolab 20 is the Acoustic Lens that delivers smooth high-frequency sound in full 180 degrees. The results are uncompromising listening experiences across your room and much greater freedom in terms of where you place your speaker for optimal sound.

BeoVision Avant – Turning to you

Unfolding sound

BeoVison Avant is a celebration of movement.

An unforgettable fusion of Ultra High-Definition (4K) picture and iconic Bang & Olufsen sound, that unfolds before your very eyes.

Redefining TV sound

Precision tuned to Bang & Olufsen’s most exacting standard, BeoVision Avant redefines the audio impact a TV can deliver. The 3-channel speaker system harnesses three dedicated tweeters, three midrange units and

two powerful bass drivers. The result is a fusion of clarity and power that truly embodies Bang & Olufsen’s commitment to ultimate sound.

Contrasted imagery

BeoVision Avant combines local dimming across more than 8 million pixels, bringing out the tiniest details in the action. Experience the most extreme sports or action footage with crystal sharp, dynamic precision.

BeoVox S2002 Product Details

Type Numbers

Please let us know​

Designer

Manufactured

1982 - 1982

Colour Options

Rosewood

BeoVox S2002 Product Specification

Please let us know

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

BeoVox S2002 FAQs

Please let us know
