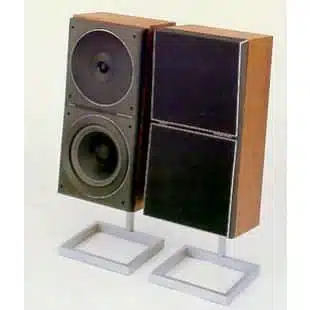

Beovox S45 (1983)

These medium-sized loudspeakers could be placed within a multiple shelving system, on an open shelf or table, mounted on the wall using the optional wall brackets or used as free-standing units by fitting the optional pedestal stands.

The two-unit configuration, with separate drivers for bass/midrange and treble reproduction, offered excellent frequency response and power-handling of 45 watts RMS.

The pressure chamber enclosures were finished in a choice of natural teak, rosewood, oak or white




Beovox S45 (1983) Product Details

Type Numbers

6427

Designer

Manufactured

1983 - 1986

Colour Options

Rosewood.Teak,White, Oak

Beovox S45 (1983) Product Specification

Continuous load: 45 watts
Music load: 65 watts
Impedance: 8 ohms
Frequency range + 4-8 dB: 48 – 20000Hz
Power at 96 dB SPL: 4 watts
Sensitivity 1W: 90 dB
Cabinet: Pressure chamber
Gross volume: 29,5 litre
Woofer: 20cm
Tweeter: 2,5cm
Crossover frequency: 3000 Hz
Dimensions WxHxD: 26,5 x 52,5 x 20cm
Weight: 6,5kg
Accessories: Stand 6017, wall-mounting kit 6014
