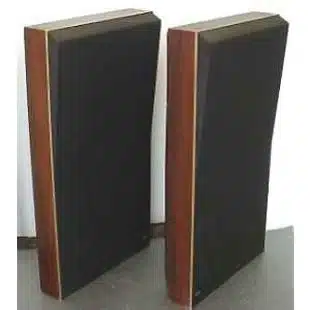

Beovox Uni-Phase P45 loudspeaker was a revised version of the Beovox P50 and was a high fidelity panel speaker for wall-mounting.
Weighing only 8kg the P45 had a net volume of 25 litres. Frequency range was 40 – 20 000 Hz with less than 1% harmonic distortion. There were two 12,5cm woofers, a special 8cm Phase Link unit and a 2,5cm dome tweeter.
The P45 was a superb loudspeaker. This was a wall mounted version of the superb S45 but replaced the single bass driver with two smaller 12.5cm units. This were asymmetrically mounted with the lower one being extremely close to the edge of the cabinet. Despite this, when properly mounted, the sound quality was superb. B&O again played the trick of making the speakers look thin by limiting the depth of the wood cabinet but extending the resin back. These are lovely well balanced speakers – if you find a pair, buy them!
Continuous load 45 W
Music load 75 W
Impedance: 4 – 8 ohms
Frequency response +4 -8 dB 45 – 20,000 Hz
Sensitivity: 4.2 W
Net volume:15 litre
Gross volume: 25 litre
Woofer: 2 x 12.5cm
Phase link unit: 9 cm
Tweeter: 2.5 cm
Dimensions W x H x D: 35 x 65 x 14cm
Weight: 8 kg
