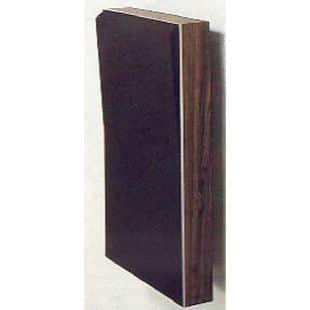

Beovox P30

Beovox Uni-Phase P30 loudspeaker handled up to 30 watts RMS power and reproduced sound with neutral, linear phase quality.

They were panel speakers designed to be hung on the wall and are therefore ideal for rooms where space was limited. Only 9cm deep, its volume was 12,9 litres. Fitted with a 16cm woofer and a 2,5cm tweeter. Frequency range 49 – 20000Hz.

The Beovox P30 were effectively a wall mounted S30. They appeared very thin though were in fact slightly deeper than one thought as the resin back protruded a fair bit at the back. Sound quality mirrored that of the S30 with generally good quality sound though they are bass light and must be wall mounted to achieve their best.

Beovox P30 Product Details

Type Numbers

6306 (1975 - May 1980)

Designer

Manufactured

1975 - 1980

Colour Options

Rosewood, Teak, White

Beovox P30 Product Specification

Continuous load 30 W
Music load 50 W
Impedance: 4 – 8 ohms
Frequency response +4 -8 dB 49 – 20,000 Hz
Sensitivity 5 W
Net volume 9 litre
Gross volume 12.9 litre
Woofer: 16cm
Tweeter: 2.5cm
Dimensions W x H x D: 30 x 54 x 9cm
Weight: 5 kg
