Overview

“BeoVision 7 is more than just a TV; it’s a complete entertainment system specially created to offer a sound and picture experience far beyond expectations. With its 81cm LCD screen, built-in DVD player and powerful active loudspeaker system, BeoVision 7 offers all the benefits of flat-screen viewing, but with exceptional sound performance as well.”

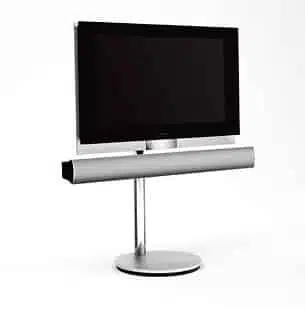

BeoVision 7 combines both an 81cm LCD monitor with an integrated DVD Player, DSS surround sound module and a dedicated loudspeaker in BeoLab 7-1. The concept emphasises the separation of picture and sound together with a good number of placement options. With BeoLab 7-1 the very highest level of acoustic performance is delivered. BeoVision 7 has a higher display resolution than that of BeoVision 6 – 26: 1366 x 768 (WXGA) pixels against 1280 x 768 pixels of BeoVision 6.

BeoVision 7 may be used as either a stand-alone television set or as a large-screen monitor within a domestic surround-sound system. There are five different stand placement options available to the user:

Mounting Options & Stands

Original Bang & Olufsen stands available at launch included: Fixed position Table Stand, motorised Table Stand, motorised Table Stand, moveable Wall Bracket for TV and Loudspeaker (close or extended versions) and a motorised Floor Stand. A fixed Wall Bracket for BeoVision 7 32 was added to the stand portfolio after launch.

Each of the above options hold both the monitor and the BeoLab 7-1 active speaker; with the exception of the Table Stand, each has the vertical tilt feature.

BeoVision 7 offers the following as standard:

Dolby Digital/DTS Surround Sound
MasterLink Module
Set-Top Box Controller
RF Modulator
Anti-Reflex Coated Contrast Screen
DVI PC input

Part Numbers:

BeoVision 7 – 1816089
Table Stand – 1409766
Wall Bracket – Fixed – 1409511
Motorised Floor Stand – 1409111
Wall Bracket – Moveable – 1409611
Motorised Table Stand – 1409211

Product Details

Software

No software information available.

Product Specification

Power consumption:Typically 152W / Standby 1W
Terminal included: Beo 4

LCD Panel: 32″ 16:9 TFT LCD
Resolution: 1366 x 768 (WXGA)
Display colours: 16.7 million (true)
Luminance of white (centre of screen): Typical 450 cd/m2
Contrast ratio (centre of screen): Typically 1000:1 (min. 700:1); MK3 onwards 3000:1
Response time: Typically 8 m/sec. (falling), 16 m/sec. (rising)
Viewing angle: Typically 85 degrees (min. 75 degrees) both vertical and horizontal

Contrast screen: Glass with Anti-Reflective Coating

VisionClear Picture Engine
Adaptive Black Levelling
Digital Adaptive Dynamic Luminance Peaking
Digital Adaptive Noise Reduction
Blue Stretch
Digital Colour Transient Improvement
Motion Compensated Film Mode
Comb Filter
Vertical Peaking
Automatic Picture Control
Teletext (where available)
Wide Screen Signalling (WSS)
VPT (Video Programming by Teletext)

Tuning:  Auto tune, program move and automatic naming

Tuner range: 45 – 860 MHz, VHF, S, Hyper, UHF
TV programmes: 99
Stereo decoders: A2 + NICAM

Formats
Format 1: 16:9 Panorama – 15:9 Panorama – (4:3 only active via setup in Service Mode)
Format 2: Letterbox + Soft Scroll
Format 3: 16:9
Automatic format optimization via “Black Bar Detection”
16:9 detection on all SCART inputs #Support of WSS (Wide Screen
Signalling pulses) from broadcaster

PIN-code protection

DVD:

Disc sizes: 12cm
Frequency range: 20Hz – 20KHz
Supported file types: DVD-Video, Video CD, CD-DA, CD-R, CD-RW, CD MP3
Multi-standard PAL/NTSC
Signal-to-noise-ratio: Typical 100 dB, A weighted, in Audio mode
DVD Region: According to type

Set Top Box Controller (STB-C):
Inbuilt, with control of up to two peripheral devices via Infra-Red cable

Connections:

Input TV: 75 ohms aerial female
Output Splitter/Modulator: 1 x 75 ohms aerial male
Input DTV (Optional DVB-S kit): F-connector
3 x SCART sockets (AV1, 2 & 3):
AV1 : CVBS in/out, RGB in, Y/C in (automatic Y/C detect, automatic 16:9 sense (pin-8), B&O AVL(2-way))
AV2 : CVBS in/out, RGB in, Y/C in (automatic Y/C detect, automatic 16:9 sense (pin-8), B&O AVL(1-way))
AV3 : CVBS in, RGB in, (automatic 16:9 sense (pin-8), B&O AVL(1-way))
2 x HDMI input (MKV specification only)
Digital audio inputs: 4 x coax phono
Camcorder/Auxiliary: 3 x Phono sockets (video in/audio L-R in), auto detection (video)
Headphone Output: 3.5mm Mini-Jack
BeoLink®: MasterLink Connection
[B]BeoLink® video distribution:[/B[ 75 ohms aerial male (splitter/system modulator output)
External BeoLab speaker outputs: 2 x Centre, 2 x Front, 2 x Rear, 1 x Subwoofer, 1 x Extended Cinema Centre
PC input: DVI-I connector/Phono Video (CVBS) + audio L-R in (can be used to view HDTV on MKIII and above)
Projector output: D-sub ( VGA 15 pin female)
External IR receiver: Mini-Jack

Optional features/Modules:

Digital Satellite module (DVB-S) / Digital Terrestrial Modules (DVB-T, DVB-HD)

BeoVision 7-40

Screen size 40” widescreen LCD
Dimensions 108 x 68 x 18 cm
Weight 45 kg
Power consumption Typical: 223 W; Standby: 0.5 W
Remote control included Beo4
Contrast screen Anti-reflection coated
Digital Surround Sound module Standard
Master Link Standard
Stand options
Table stand, motorised turn and tilt
Floor stand, motorised turn and tilt
