Overview

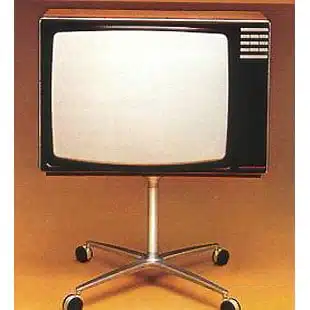

Beovision 4002 and 4402 were colour receivers with 26″ screens. Natural colours, sharp, precise image definition and high-fidelity sound reproduction are all features you can take for granted, according to the 1970 – 80 Bang & Olufsen product catalogue. Their high reliability levels were due to modular construction techniques and low heat-generation. Beovision 4002 consumed only 110 watts – less than a black and white set of years previously.

Both sets were extremely easy to use. There were facilities for presetting up to eight stations so that subsequent programme selection was just a matter of pressing one button. This turned the set on at the same time.

Beovision 4402 had the additional convenience of a cordless (ultrasonic) remote control. The set could also be supplied equipped for Teletext reception. There was automatic synchronisation of VCR programmes on all channels.

Product Details

Software

No software information available.

Product Specification

Picture tube size: 66cm
Cabinet: wood veneer
Number of programmes: 8 VHF – UHF
Easy touch
Range: UHF 21 – 69, VHF 2 – 12
Start time: approx. 5 sec
Aerial impedance: 75 ohms coaxial
Speakers:
1 forward-facing pressure chamber
Sound power output: 6.5 W
Harmonic distortion: < 0.8 %
Frequency range: +/- 1.5 dB 60 – 15,000 Hz
Power bandwidth: 60 – 20,000 Hz
Bass control: +/- 5 dB / 100 Hz
Treble control: +/- 10 dB / 10,000 Hz
Power supply: 180 – 265 V
Power consumption: 110 W
Standby: 0 W
Dimensions W x H x D: 69.5 x 49 x 46cm
Weight: 36 kg
Undercarriages: Cross-base with castors 3043, Table with castors 3055
