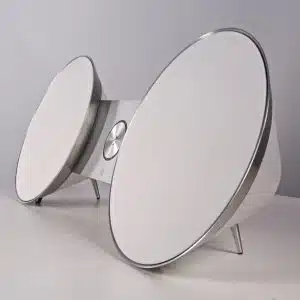

BeoSound 8

A late entry into the market but maybe the best sounding, the Beosound 8 benefits from the active speaker technology that B&O has championed for many years. Class D amplification is used for the two way loudspeakers and a placement switch is present which allows free standing, wall or corner settings.

The dock connection allows iPods, iPhones or iPads to be used and the provision of a line in connection allows other devices to attach.

In addition, a mini USB socket allows the customer to connect either a PC or Mac or an Airport Express to allow music to be played from their computer. A special Application written for the iPhone will be available which allows the music library to be browsed and also gives the BeoSound 8 both Alarm Clock functions and Net radio capabilities.

A wall bracket is available or the Beosound 8 can be used as a table top set.

Initially the speaker covers will be either black or white but Blue. Purple , Green and yellow covers will soon be available.

Control will either be via the iPod or with the Beosound 8 remote, which is aluminium. The set is also controllable with the Beo4,5 or 6.

The BeoSound 8 came in two ‘generations’ – the first being the regular BeoSound 8 with the old iPhone 20-pin connector, then the BeoPlay A8 (the ‘A’ standing for ‘Airplay’) which had no connector, but you could add a simple push-fit ‘Apple Lightning Connector’ for later Apple products if required.

BeoSound 8 Product Details

Type Numbers

Please let us know​

Designer

Manufactured

2010 - 2014

Colour Options

White, Black and coloured loudspeaker covers

BeoSound 8 Product Specification

DIMENSION
W x H x D/ WEIGHT 66.1 x 23.9 x 16.4 cm/4.25 kg
MATERIAL(S) Painted plastic, Aluminium and Fabric
COLOUR(S) Aluminium/white with white fabric frame
Aluminium/black with black fabric frame
POWER CONSUMPTION Typical: 10 W; Standby: 0.4 W
LOUDSPEAKER(S)
CABINET PRINCIPLE Sealed box
EFFECTIVE FREQUENCY RANGE* 38.3 – 24,000 Hz
CONNECTIONS iPod/iPhone/iPad connector, USB
Line-in via Phono
ACCESSORIES BeoSound 8 remote control (included)
Table stand/feets (included)
Wall bracket (included)
Fabric frames:
Yellow, purple, green, blue, black and white

*EFFECTIVE FREQUENCY RANGE is measured at -10 dB re. Ref level (200-2000 Hz)

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

Type

Date

    Type

User Guide

Multi

2905, 2906

10-11

BeoSound 8

User Guide

Service Manual

EN

2905, 2906

10-11

BeoSound 8 Service Manual

BeoSound 8 FAQs

Please let us know
