Overview

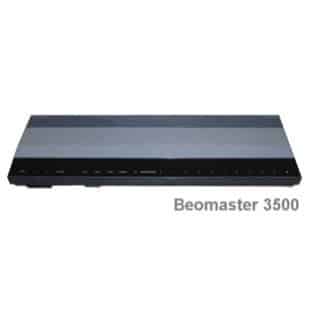

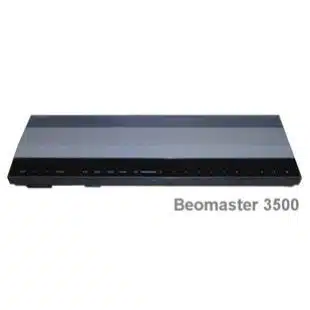

Beomaster 3500 was a part of Beosystem 3500 which comprised the Beomaster 3500 receiver, Beogram 3500 CD player, Beocord 3500 cassette recorder, a pair of Beovox RL35 speakers and a Beolink 1000 remote control.

The whole system in the autumn of 1991 cost just 1600 euros (about £1100). The system’s lines were pure with everything superfluous omitted. It was specially designed to hang either on a wall or sit on a shelf or table. A light touch on its illuminated display gave immediate access to AM/FM receiver, CD player and cassette recorder; all of which were the latest and best in their respective fields. The system was completed by a pair of RedLine RL 35 speakers and operated via a Beolink 1000 remote control unit.

The system was similar to Beosystem 4500 but had a matt finish on the top panels as opposed to Beosystem 4500’s shiny panels. The electronics were a cut-down version of its more expensive brother.

Product Details

Software

No software information available.

Product Specification

Long-term max. output power IEC: 2 x 55 W / 8 ohms
Harmonic distortion DIN/IEC: < 0.08 %
Power output 20 – 20,000 Hz IHF: 2 x 20 W / 8 ohms
Total hamonic distortion IHF: < 0.1 % at 20 W 20 – 20,000 Hz
Intermodulation: < 0.1 %

Bass control at 40 Hz:: +/- 12 dB
Treble control at 12000 Hz: +/- 12 dB

FM range:
Type: 2961, 2962, 2963, 2965: 87.5 – 108.5 MHz
Type: 2964: 76 – 90 MHz

Power supply: 2966: 220V
2967: 240V
2968: 120V
Power consumption: 10 – 135 W

RIAA amplifier: No
Dimensions W x H x D: 62 x 7 x 25cm
Weight: 7 kg

Connections: Speakers 2 sets
CD: DIN
TP 1: DIN
AUX: DIN
OH/TP2: DIN
PowerLink: 2

Link compatibility: Master Control Link
