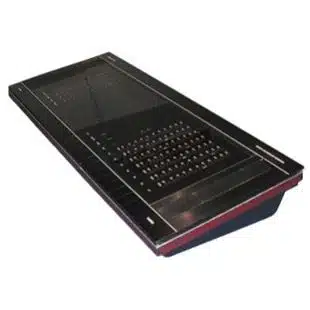

BeoMaster 1600 (1980)

Beomaster 1600 Type 1703 could be made up as part of Beosystem 1600, when linked together with other compatible Bang & Olufsen products such as Beocord 1600 and Beogram 1600. FM only version of the 1700 and not seen in the UK.

BeoMaster 1600 (1980) Product Details

Type Numbers

1702 (1980 - Feb 1983)
1703 (US) (1980 - March 1983)

Designer

Manufactured

1980 - 1983

Colour Options

Aluminium, Black

BeoMaster 1600 (1980) Product Specification

Frequency response: 20 – 20,000 Hz
Minimum continuous RMS power per channel: 20 W at 4 ohms
20 W at 8 ohms
Speaker impedance: minimum 4 ohms
Maximum total harmonic distortion: < 0.4 %
IHF Intermodulation: < 0.2 %
Bass control response at 40 Hz: +/- 11 dB

Treble control response at 12,500 Hz: +/- 11 dB
RIAA amplifier: built-in
FM range 87.5 – 108 MHz

Power supply:
1702 220V
1703 120V

Dimensions: 60.3 x 9.5 x 24.1cm
Weight: 8.5 kg

Connections: Phono DIN, tape DIN, speakers: 2 sets

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

Type

    Type

User Guide

EN

BeoMaster 1600 Uer Guide

User Guide

EN

BeoMaster 1600 Uer Guide

Service Manual

EN

2113, 2115

BeoMaster 1600 Service Manual

Service Manual

EN

1702, 1703

BeoMaster 1600 Service Manual

BeoMaster 1600 (1980) FAQs

Please let us know
