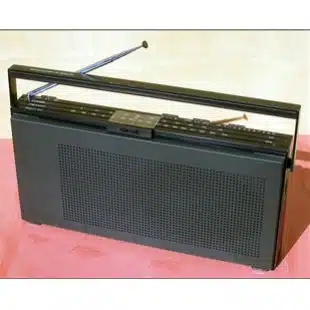

BeoLit 505

Beolit 505 was a pure FM radio with AFC facility to ensure clean, sharp reception. It had an in-built large, high quality speaker together with a built-in telescopic aerial. It had six programme indicators (affixed to sliding tuning scale) and connection for a tape recorder. It was designed by Jacob Jensen, the same as its FM and AM bigger brother, Beolit 707.



The Beolit was one of the very few portable radios that were suitable for reproducing more than just news broadcasts. Sound quality was so good that music programmes could be reproduced with a quality that made them worth listening to. The Beolit was fitted with a mains transformer and a detachable lead. Operation was simple and problem-free. And since portable radios can end up in unenviable situations, the Beolit was constructed to withstand some rough treatment.

A robust chassis protects the internal circuitry and a special surface treatment protects the radio from scratches. Dirty marks were easily removed with a damp cloth.

BeoLit 505 Product Details

Type Numbers

Please let us know​

Designer

Manufactured

1975 – 1981

Colour Options

Black, Red , White

BeoLit 505 Product Specification

FM tuner 87.5 – 104 MHz
Sensitivity 26 dB < 1.2 µV / 75 ohms

Harmonic distortion
< 1.2 %
Power output at specified distortion 1000 Hz RMS 1 watts / 4 ohms
Speaker impedance 4 ohms
1000 Hz at specified output < 2%
Frequency range – 1.5 dB 90 – 15,000 Hz

Dry cells
5 pcs. 33 x 60.5mm
Voltage 220 – 240 V
Power consumption 0.7 – 5 watts

Dimensions W x D x H
36 x 22 x 6 cm
Weight 2.62
