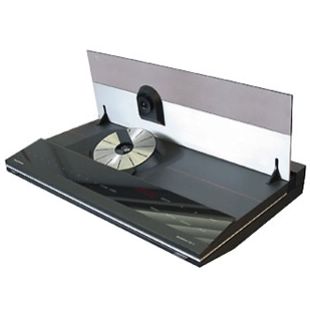

BeoGram CDX 2

This advanced CD player was straight from tomorrow’s world – but it would still marry up happily with any Bang & Olufsen system created over the previous decade. It was as simple to use as a tape recorder. The track search system was invaluable for finding your way quickly around the disc. A display indicated the number of the track you’re on.

Recording was just as straight forward. And you could time recordings to the second – just press the sensi-touch panel and you could find out how much time was left on a particular track or on the whole disc.

This replacement for the former Beogram CDX used at that time, new 16-bit technology and an all-new optical system. The player itself though, was derived from the Philips CD150 machine; the same as that in the Beocenter 9000. After one year the machine was discontinued and replaced by the Beogram CD 3300 – a similar sensi-touch CD player – as part of Beosystem 3300.

BeoGram CDX 2 Product Details

Type Numbers

5161 (1988 – March 1990)
5162 (GB) (1988 – May 1989)

Designer

Manufactured

1988 – 1990

Colour Options

Black, Silver

BeoGram CDX 2 Product Specification

Frequency range: 3 – 20,000 Hz +/- 0.3 dB
Signal-to-noise ratio: > 96 dB / 100 dB A-weighted
Dynamic range: > 96 dB
Harmonic distortion incl. noise: < 0.003% at 0 dB; < 0.03 at -20 dB
Channel separation: > 94 dB
Channel difference: < 0.5 dB

Converter system: 2 x 16 bit, 4 x oversampling 176.4 kHz
Low pass filter: Digital + Bessel/elliptical analogue

Damping: > 20,000 Hz > 50 dB
Phase error between L and R 0 degree at 20 – 20,000 Hz
Output analogue: 2 V RMS at 0 dB
Output, signal: for digital equipment

Power supply:
5161: 220V
5162: 240V
Power consumption 30 W
Dimensions W x H x D: 42 x 7.5 x 31cm
Weight 4.9 kg
