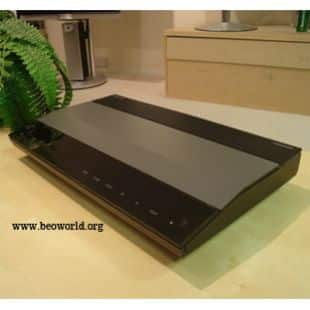

BeoGram CD 3500

The sound reproduction achieved by Bang & Olufsen’s CD 3500 CD player was truly outstanding. It played both 12cm and 8cm compact discs and had an ingenious ‘step’ function which allowed you to go straight to a chose track selected from anywhere on the disc. The CD player was one of the most technologically-advanced pieces of hi-fi on the market at the time and yet was one of the easiest to operate. The explicit display always indicated what the CD player was doing all the time – for example, which track was being played, and how many tracks there were on the played compact disc.

Beogram CD 3500 could be used as part of the Beosystem 3500 hi-fi system.

BeoGram CD 3500 Product Details

Type Numbers

5171
5172
5173
5174
5175

Designer

Manufactured

1988 - 1994

Colour Options

Grey

BeoGram CD 3500 Product Specification

Power supply:
5171: 220V
5172: 240V
5173: 120V
5174: 100V
5175: 240V
Power consumption: 23 W
Dimensions W x H x D: 42 x 7 x 24.5cm
Weight: 4.5 kg

Link compatibility: Datalink

Frequency range: 3 – 20,000 Hz +/- 0.3 dB
Signal-to-noise ratio: > 100 dB / 110 dB A-weighted
Dynamic range: > 96 dB
Harmonic distortion incl. noise: < 0.0025% at 0 dB;
< 0.025 at -20 dB
Channel separation: > 101 dB
Channel difference: < 0.08 dB
Converter system: 16 bit, 4 x oversampling 176.4 kHz
Low pass filter: Digital + Bessel/elliptical analogue
Damping: > 20,000 Hx > 50 dB
Phase error between L and R 0 degree at 20 – 20,000 Hz
Output analogue: 1.3 V RMS at 0 dB
Output digital: For digital equipment
