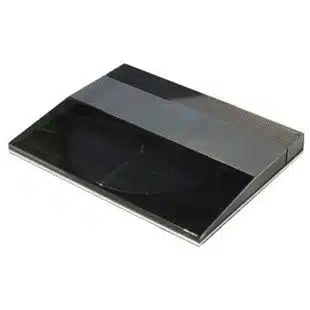

In design, technology and operating philosophy, the Beogram 9500 turntable was a perfect match for the Beocenter 9500 system.
Using a light-weight MMC2 cartridge, its electronic tangential arm played each record at the exact angle it was cut giving the most precise reading of the grooves ensuring that every nuance of a recording was captured.
The arm was suspended by a patented Bang & Olufsen system which helped prevent vibrations from any source reaching the cartridge. And the chassis suspension acted as an effective buffer against external vibrations.
Speeds: 33 – 45 rpm.
Speed deviation < +/- 0.2 %
Wow and flutter, DIN: < +/- 0.06 %
Rumble DIN weighted: > 80 dB
Rumble DIN unweighted: > 55 dB
Power supply:
5966: 220 V
5968: 120 V
5969: 100 V
5970: 240 V
Power consumption: < 10 W
Dimensions W x H x D: 42 x 7.5 x 32.5cm
Weight 5.3 kg
Link compatibility: Data Link
Available documents are listed, if none are listed then please reach out to see if we have them.
Type | Language | Type | Type | |
User Guide | EN | BeoGram 9500 User Guide | ||
Service Manual | EN | 5966, 5968, 5969, 5970 | BeoGram 9500 Service Manaul |
