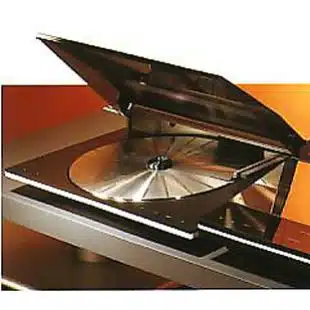

BeoGram 8500

To complement Beocenter 8500, a dedicated record player – Beogram 8500 – was designed specifically for this particular hi-fi centre.

The technical aspects of Beogram 8500 were identical to Beogram 9500; it was only the finish that was different which was coloured soft grey to complement the rest of the system.

Mounting Options

Bang & Olufsen’s preferred supplier for brackets and stands, STBbrackets, have made a wall mount solution as a general option for Bang & Olufsen Turntables. Distributed throughout the World by the Bang & Olufsen store network, the STB option adds to the diversity of mounting options and positions available.

»Wall Mounting Bracket

Wall Bracket / Shelf for BeoGram

A universal shelf that will support all Bang & Olufsen turntables from the past 30 years. Including three cable entry points to allow you to bring cables from below the shelf or through the wall.

BeoGram 8500 Product Details

Type Numbers

5971 (1990 – Oct 1993)
5973 (J) (1990 – Dec 1990)

Designer

Manufactured

1990 – 1993

Colour Options

Grey

BeoGram 8500 Product Specification

Speeds: 33 – 45 rpm
Speed deviation: < +/- 0.2 %

Wow and flutter, DIN: < +/- 0.06 %
Rumble DIN weighted: > 80 dB
Rumble DIN unweighted: > 55 dB

Power supply:
5971: 220 V
5973: 100 V
Power consumption: < 10 W
Dimensions W x H x D: 42 x 7.5 x 32.5cm
Weight 5.3 kg

Link compatibility: Data Link

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

Type

    Type

User Guide

EN


BeoGram 8500 User Guide

Service Manual

Multi

5971, 5972, 5973, 5974


BeoGram 8500 Service Manual

BeoGram 8500 FAQs

Please let us know
