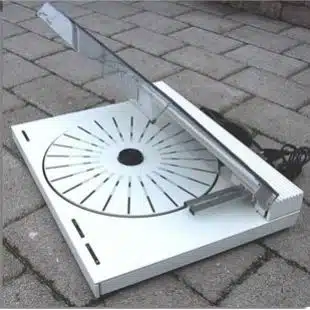

BeoGram 6500

If you built up an LP Collection of good music to conjure up wonderful memories, you obviously would have wanted to enjoy it for many years to come. Which is why Bang & Olufsen put so much effort into Beogram 6500.

It was a superb, precision instrument that ensured perfect sound reproduction of your records. The electronically-controlled tangential arm played the record exactly as it was recorded.

The tone arm was suspended in a special Optimum Pivot Point system that prevented vibrations from reaching the MMC2 cartridge which has a stylus pressure of only 1g for minimal friction. And Bang & Olufsen’s special chassis suspension prevented external vibrations from reaching the platter. And Beogram 6500 automatically registered the size of the record you were playing and adjusted the speed accordingly.

The BeoGram 6500 also contained an inbuilt RIAA pre-amplifier, which essentially means you can just “plug in and play” with any modern B&O system through an AUX or similar socket – making this a very desirable deck! Of course as part of the Beosystem 6500, it was part of the top of the line system comprising in addition, the BeoMaster 6500, BeoCord 6500, BeoGram CD6500 and MCP-6500.

BeoGram 6500 Product Details

Type Numbers

5946 (1989 – Feb 1992)
5950 (AUS) (1989 – Sept 1991)
5949 (J) (1989 – Sept 1991)

Designer

Manufactured

1989 – 1991

Colour Options

Polished aluminium, All White

BeoGram 6500 Product Specification

Speeds: 33 – 45 rpm
Speed deviation: < +/- 0.2 %

MMC2 cartridge
Wow and flutter, DIN: < +/- 0.06 %
Rumble DIN weighted: > 80 dB
Rumble DIN unweighted: > 55 dB

Power supply:
5946: 220V
5948: 120V
5949: 100V
5950: 240V
Power consumption < 10 W
Dimensions W x H x D: 42 x 7.5 x 32.5cm
Weight 5.3 kg

Link compatibility: Data Link

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

Type

    Type

Setup Guide

EN


BeoGram 6500 Setup Guide

Service Manual

EN

5946, 5947, 5948, 5949, 5950


BeoGram 6500 Service Manual

BeoGram 6500 FAQs

Please let us know
