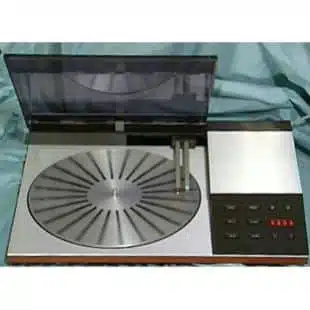

BeoGram 6006

This deck was the Beogram designed for use with the Beomaster 6000.

To all intents the same deck as the Beogram 8000, it had a MMC20EN cartridge and black keys to differentiate it from its more expensive brother. Not replaced directly when the newer cartridges were released as the Beogram 6002 was belt drive rather than tangential drive.

This was a confusing product as it offered the same performance as the Beogram 8000 but was cheaper due to the lesser cartridge. It was not a big seller and it was not surprising that the range was rationalised by keeping a top performing Beogram in the Beogram 8002 and a substantially simpler deck in the Beogram 6002.

__________________________

Would you like to write a review of this product? Do you have any further Images or Technical Specifications?

If so – please forward them to us so we can add them to our database and share them with fellow Bang & Olufsen enthusiasts around the world. Your name will also appear in the Author Notes section at the bottom of the page!

Mounting Options

Bang & Olufsen’s preferred supplier for brackets and stands, STBbrackets, have made a wall mount solution as a general option for Bang & Olufsen Turntables. Distributed throughout the World by the Bang & Olufsen store network, the STB option adds to the diversity of mounting options and positions available.

»Wall Mounting Bracket

Wall Bracket / Shelf for BeoGram

A universal shelf that will support all Bang & Olufsen turntables from the past 30 years. Including three cable entry points to allow you to bring cables from below the shelf or through the wall.

BeoGram 6006 Product Details

Type Numbers

5625 (1981 – Jan 1983)
5627 (AUS) (1981 – March 1982)
5626 (GB) (1981 – Nov 1982)
5623 (USA) (1981 – March 1982)

Designer

Manufactured

1981 – 1983

Colour Options

Rosewood, Teak, White

BeoGram 6006 Product Specification

Wow and flutter DIN: < 0.05 %
Rumble DIN weighted: > 65 dB
Rumble DIN unweighted: > 45 dB
Speeds: 33 – 45 rpm
Speed deviation: < +/- 0.02 %, +/- 3 %: < 0.04°

Power supply:
5623: 120V
5625: 220V
5626: 240V
5627: 240V
Power consumption: 15 W
Dimensions W x H x D: 49 x 9 x 37.5cm
Weight: 9 kg

Pickup: MMC 20 EN
Tracking force: 12 mN / 1.2 g

Link compatibility: Data Link
