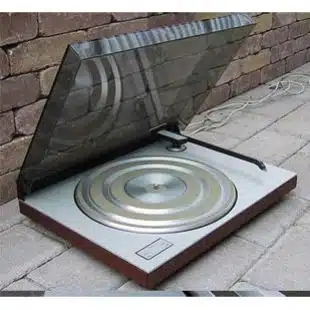

BeoGram 1900

BeoGram 1900

The top of the range of the radial turntables at this time, it was differentiated only by a different pick up and a weighted platter from the lesser models. As with all this range, fully automatic and cleverly designed to look even lower than it actually was!

Overview

The top of the range of the radial turntables at this time, it was differentiated only by a different pick up and a weighted platter from the lesser models. As with all this range, fully automatic and cleverly designed to look even lower than it actually was!

Product Details

Type Number:5701,5702
Release Date:1976, 1977
Designer:Jacob Jensen
Colour / Finish:Rosewood, Teak, White
Cartridge Type:MMC4000

Product Specification

Sound system Stereo, matrix
Speeds: 33 – 45 rpm
Tonearm: radial
Automatic pickup movement: Yes
Automatic speed selection: Yes
Output: 2 x 0.6 mV

Wow and flutter DIN: < +/- 0.07 %
Rumble DIN unweighted: > 42 dB
Rumble DIN weighted: > 62 dB
Speed deviation: < 0.1 %
Speed control range: > 3 %
Dial for speed stroboscope: 120mm

Pick-up cartridge: MMC 4000
Recommended stylus pressure: 1 g
Stylus pressure range: 0 – 2.5 g
Stylus: elliptical naked diamond
Radius of curvature: 5 x 17 µm
Frequency range: 20 – 25,000 Hz +/- 2.5 dB Tracking error < 0.126 / cm°
Lift system Mechanical
Antiskating Inclined channelling inside bearing
Motor Asynchronous
Drive system Idler wheel and belt
Turntable 30cm/1 kg

Power supply: 110 – 220 V
Power consumption: 10 W
Dimensions W x H x D: 44 x 9 x 33cm
Weight 6 kg

Downloads

    Type

Language

    Type

Service Manual

Multi

BeoGram 1900 Service Manaul
