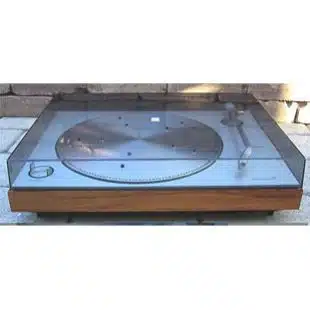

BeoGram 1203

BeoGram 1203

Beogram 1203 was an automatic, high-fidelity stereo record-player with high specifications. It was beautifully-styled and extremely easy to operate. All you need to do was select the record size: 7″, 10″ or 12″ and press a button. The turntable automatically selected the correct speed: 33% or 45, and the pickup was lowered into the first […]

Overview

Beogram 1203 was an automatic, high-fidelity stereo record-player with high specifications. It was beautifully-styled and extremely easy to operate. All you need to do was select the record size: 7″, 10″ or 12″ and press a button. The turntable automatically selected the correct speed: 33% or 45, and the pickup was lowered into the first groove.

At the end of the record, the arm automatically returned to its resting position and the turntable switched off. Beogram 1203 was fitted with its own pick-up cartridge, theย SP 14Aย which had a spherical diamond stylus and a stylus pressure of 2g. Its frequency range was 20,000 Hz. ยฑ3 dB. Distortion was lower than 1%, wow and flutter lower than ยฑ0.15 % and rumble better than 58dB. The turntable and pick-up arm had a pendulum suspension which made the record-player insensitive to vibrations. A transparent dust lid and a spindle adaptor for playing centreless records were supplied with Beogram 1203.

It was in fact rather simpler than its immediate predecessor, theย 1202ย , and was based on theย Beogram 2000ย rather than the top of the rangeย 3000.

Product Details

Type Number:5239,5243
Release Date:1974, 1975, 1976
Designer:Jacob Jensen
Colour / Finish:Rosewood, Teak, White

Product Specification

Speeds: 33 โ€“ 45 rpm.
Pickup-arm System Ball bearing
Cueing Control Mechanical
Drive system Idler wheel and belt
Motor Asynchronous

Wow and flutter 37 dB; B: > 58 dB
Speed Control Range: > 6 %
Recommended, Stylus Pressure 2 g
Stylus Pressure Range 0 โ€“ 3.5 g

Power supply:110 โ€“ 130 โ€“ 220 โ€“ 240 V
50 Hz, 10 W
Dimensions H x W x D 12 x 44 x 33cm
Weight 7.2 kg

Downloads

    Type

Language

Date

Type

    Type

User Guide

EN

BeoGram 1203

User Guide


Service Manual

EN


5239


BeoGram 1203

Service Manual


Frequently Asked Questions

No FAQs available.
