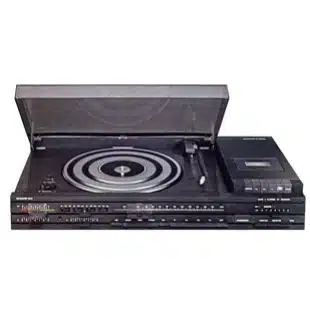

BeoCenter 3600
The first Beocenter with three sources, the 3600 was released in only a limited numbers of markets. Now a rare item.
Overview
The first Beocenter with three sources, the 3600 was released in only a limited numbers of markets. Now a rare item.
Product Details
Software
No software information available.
Product Specification
Amplifier:
Distortion 1000 Hz RMS 2 x 22 W / 4 ohms
2 x 19 W / 8 ohms
Music power 2 x 40 W / 4 ohms
2 x 25 W / 8 ohms
Speaker impedance: 4 ohms
Harmonic distortion: 1000 Hz 50 mW DIN: 45 500 < 0.1%
DIN 45 500 40 – 12,500 Hz: < 0.3%
Intermodulation DIN 45 500: < 1%
Frequency range +/- 1.5 dB DIN 45 500: 20 – 30000 Hz
FM tuner range: 87.5 – 108 MHz
Record Player: speeds 33 – 45 rpm
Pickup cartridge MMC 3000
Stylus Spherical diamond
Radius of curvature 15 µm
Frequency range 16 – 25000 Hz
Recommended stylus pressure 1.2 g
Automatic pickup movement Yes
Automatic speed selection Yes
Wow and flutter, DIN < +/- 0.12%
Wow and flutter, WRMS < +/- 0.06%
Rumble DIN unweighted > 37 dB
Rumble DIN weighted > 60 dB
Speed deviation < 0.1%
Speed control range > 3%
Dial for speed Stroboscope 120mm
Stylus pressure range 0 – 2.5 g
Anti-skating Yes
Motor Asynchronous
Drive system Idler wheel and belt
Turntable: 30 cm /1 kg
Tape Recorder:
Compact cassette C60 – C90
Tape head Super Permalloy
Dolby NR Yes
Iron oxide tape Yes
Chromium dioxide tape Yes
Indicator system Ligh emitting diodes
Stop at end of tape Yes
Wow and flutter, DIN < +/- 0.3 %
Speed deviation < +/- 1%
Fast forward and rewind 90 sec
Frequency range DIN chrome 20 – 13000 Hz
Signal-to-noise ratio Chrome > 53 dB
With microphone 75 µV / 10 Kohms
With Dolby Chrome > 61 dB
Erasure > 74 dB
Power supply:
110 – 130 – 220 – 240 V
Power consumption 20 – 170 W
Dimensions W x H x D: 66 x 13.6 x 35cm
Weight 16.9 kg
Downloads
Type | Language | Type | |
Service Manual | EN | BeoCenter 3600 Service Manual |
