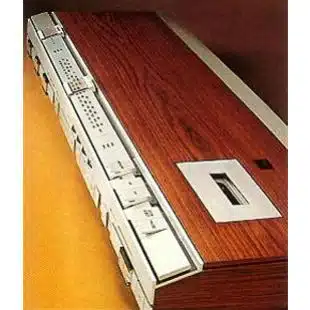

BeoCenter 2600

Beocenter 2600 consisted of a 2 x 25 watts RMS AM/FM receiver and a hi-fi cassette deck. The radio section covered Long, Medium and FM wavebands. A red/green LED indicator made recording easy and accurate, whether your sound source was the radio or a microphone (not supplied) connected to the hidden socket. A separate record player could be added if required.

For the cassette section, you could use both ferric and chrome tapes. The Dolby B Noise Reduction circuits ensured clean, noise-free recordings every time and the Super-Permalloy tape head was hard wearing with a long service life.

Beocenter 2600 could be made up as part of the Beosystem 2600, when linked together with other compatible Bang & Olufsen products.

BeoCenter 2600 Product Details

Type Numbers

2626 (1978 – April 1982)

Designer

Manufactured

1978 – 1982

Colour Options

Rosewood, Teak, Oak

BeoCenter 2600 Product Specification

Power output: RMS DIN 2 x 25 watts RMS / 4 ohms
2 x 20 watts RMS / 8 ohms
2 x 40 watts music / 4 ohms
2 x 25 watts music / 8 ohms
Speaker impedance 4 ohms
Harmonic distortion < 0.1%
Intermodulation < 0.15%
Frequency range +/- 1.5 dB 20 – 30,000 Hz
Damping factor > 35
Phono, inputs 2.2 mV / 47 kohms
Overload margin 80 mV
Signal-to-noise ratio > 60 dB
Tape, inputs 400 mV / 100 kohms
Signal-to-noise ratio > 60 dB
Channel separation 1000 Hz > 56 dB
Channel separation 250 – 10,000 Hz > 40 dB
Tape, outputs (norm. input phono) 30 mV / 100 kohms
Headphones 14 V / 220 ohms

Bass control at 40 Hz +/- 12 dB
Treble control at 12,500 Hz +/- 12 dB
Balance control +/- 60 dB Tuner:
FM range 87.5 – 108 MHz
AM range LW 147 – 350 kHz
AM range MW 520 – 1610 kHz

Tape Recorder:
Compact cassette: C60 – C90
Wow and flutter < +/- 0.20 %
Speed deviation < +/- 1%
Fast forward and rewind C60 85 sec
Frequency range, chrom 30 – 14,000 Hz
Signal-to-noise ratio chrom > 56 dB
Signal-to-noise ratio chrom with Dolby > 63 dB
Erasure > 70 dB
Microphone input 0.1 mV / 10 kohms

Power supply:
110 – 130 – 220 – 240 V
Power consumption 20 – 160 W
Dimensions W x H x D: 68 x 9 x 27cm
Weight 11 kg

Connections: gramophone, extra tape, headphone
