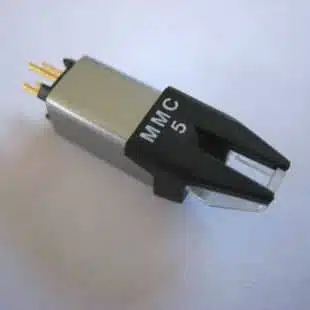

MMC5

The most basic of the range, this cartridge was available to be specified for those decks not fitted with a cartridge as standard such as the Beogram RX.

It could be differentiated by its cantilever which was a straight non tapered aluminium tube.




MMC5 Product Details

Type Numbers

Please let us know​

Designer

Please let us know

Manufactured

1984 - 1997

Colour Options

Silver and Black

MMC5 Product Specification

Description Titanium-bonded elliptical diamond, mounted on a straight aluminium cantilever
Tracking force – grams 1.5
Diamond Stylus Elliptical
Cantilever tube Straight alum.
Effective tip mass mg 0,5
Compliance mg/mN 20
Frequency 20-20000 Hz=/-dB 3
Channel separation 1000>dB 20
Output mV/cm/s RMS 0,6
Cartridge weight gram 1,6

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

MMC5 FAQs

Please let us know
