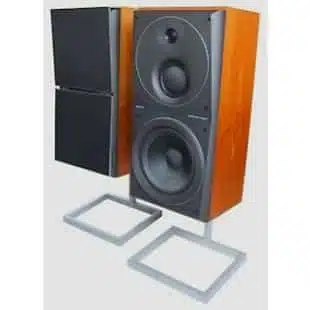

Beovox S55

Beovox S55 was an ideal bookshelf speaker, but could also be used as a wall-mounted or free-standing model with the optional fittings available separately.

The pressure chamber cabinet contained a 21cm bass driver, an 11,5 mid-range/phase-link unit and a 2,5cm tweeter. Power handling was 55 watts RMS.




Beovox S55 Product Details

Type Numbers

6426 (to March 1987)

Designer

Manufactured

1981 - 1987

Colour Options

Rosewood, Teak, White, Oak

Beovox S55 Product Specification

RMS power handling capacity: 55 W
Music power handling capacity: 75 W
Impedance: 8 ohms
Frequency response 4+ -8 dB 50 – 20,000 Hz
Frequency response +/- 4 dB 60 – 17,000 Hz
Sensitivity 1W: 4 W
Distortion 250 – 1000 Hz: <1.5%
Distortion > 1000 Hz: <1%
Woofer: 21cm
Phase-link, mid-range: 11.5cm
Tweeter: 2.5 cm dome
Net volume: 20 litre
Gross volume: 32 litre
Dimensions W x H x D: 26.5 x 52.5 x 23cm
Weight 8 kg
