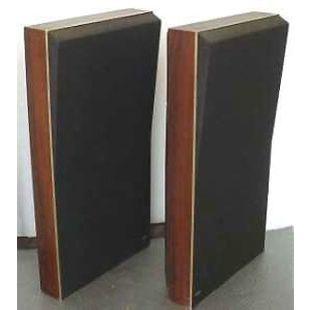

Beovox P50
“A sound panel in which high-fidelity reproduction and compactness were successfully reunited” – 1974 Catalogue. Beovox P50 represented a new concept in the design of pressure chamber loudspeakers. They were developed with convenience and homeliness in mind. Their remarkable design provided the sound quality of a “large” speaker without the dominating size and appearance which […]
Overview
“A sound panel in which high-fidelity reproduction and compactness were successfully reunited” – 1974 Catalogue.
Beovox P50 represented a new concept in the design of pressure chamber loudspeakers. They were developed with convenience and homeliness in mind. Their remarkable design provided the sound quality of a “large” speaker without the dominating size and appearance which speakers of this standard had hitherto necessitated. It was possible to place even four top-quality speakers in your living-room without inconvenience.
Beovox P50 could be easily mounted on a wall where their presence would not obtrude upon their surroundings, yet they presented the most excellent sound quality. Frequency response was 40-20 000 Hz with distortion less than 1%. The “P” stood for “panel” and “50” signified power handling capacity – 50 watts RMS (or 80 watts music power). The speaker units were two 12,5cm woofers, a 8cm mid-range dome and a 2,5cm dome tweeter.
Product Details
Software
No software information available.
Product Specification
Continuous load: 45 W
Music load:75 W
Impedance: 4 – 8 ohms
Frequency response +4 -8 dB 45 – 20,000 Hz
Sensitivity 4.2 W
Net volume:15 litre
Gross volume:25 litre
Woofer: 2 x 12.5cm
Phase link unit: 9cm
Tweeter: 2.5cm
Dimensions W x H x D: 35 x 65 x 14cm
Weight 8 kg
