Overview

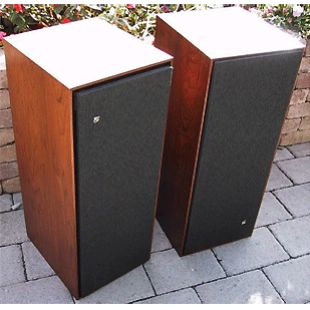

“B&O loudspeakers will meet very exacting conditions as their specifications exceed international hi-fi standards. All B&O speakers are of the pressure-chamber type with an impedance of 4 ohms. They are available in matched pairs only in a choice of teak or Brazilian rosewood finish” – taken from the 1967 – 1968 Bang & Olufsen product catalogue

Product Details

Software

No software information available.

Product Specification

Dimensions W x H x D 60 x 24 x 27,5 cm
Weight 10 kg

Performance
Music load 35 watts
Continuous load 20 watts RMS (DIN 45,573)
Frequency response 40 – 18,000 Hz (DIN 45,570)
Distortion Max. 2,6 % (DIN 45,403)
Sensitivity 2,8 watts (DIN 45,500) Crossover frequency 900/5000 kHz
Capacity 25 litres
Resonance of woofer 35 – 40 Hz
Dispersion 90°

Number of units
Bass unit 1
Mid-range 1
Tweeter 1

Connections: Output Tweeter 4 ohms
Input DIN socket – 4 ohms
