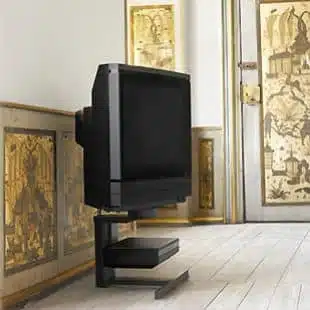

BeoVision MX 4200

BeoVision MX 4200

The last word in a fine story, the MX4200 looked modern at its introduction despite being modelled on an 18 year old design. A testament to the vision of David Lewis. Beovision MX4200 is a 52cm 4:3 television set, and is based on an updated chassis of Beovision MX4000/4002. It has the same design line […]

Overview

The last word in a fine story, the MX4200 looked modern at its introduction despite being modelled on an 18 year old design. A testament to the vision of David Lewis.

Beovision MX4200 is a 52cm 4:3 television set, and is based on an updated chassis of Beovision MX4000/4002. It has the same design line as the previous MX model range but includes the following improvements:

Improved picture quality

16:9 format handling

Set-Top Box Controller as standard

Camcorder connection

Theft protection

MasterLink module (optional)

RF Modulator (optional)

Part numbers for Beovision MX4200:

MX4200 1813123 1813122 1813124 1813125

MX4200 with MasterLink 1813083 1813082 1813084 1813085

MX4200 with ML & RF Modulator 1813103 1813102 1813104 1813105

Motorised Wall Bracket 1408966

Accessories for Beovision MX4200 include the following:

Stand type Type 4088

Motorised wall bracket Type 4089

Wall Bracket Type 4114

Shelf V8000/DVD 1 Type 4132

Shelf V8000 + DVD 1 Type 4134

Optional ML Module Type 4015

Optional RF Modulator Type 4018

Product Details

Type Number:9150,9151,9152,9153,9155,9156
Release Date:2003, 2004, 2005, 2006
Designer:David Lewis

Product Specification

Dimensions
W x H x D/Weight 51 x 55 x 42 cm/ 28,5 kg
Cabinet finish
Black, Dark Grey, Grey, Light Blue.
Power consumption
Typical 56 W, Stand by: 0,5 W
Terminal included
Beo4
Stand turning function
+-35 degrees.
Picture tube/Visual picture
52 cm (4:3) / 50.5cm viewable screen, Black Matrix, Real Flat
Contrast screen
Grey glass
VisionClear
Automatic picture control
Auto cut-off

CTI

Adaptive Luminance Peaking
Adaptive black

Scan Velocity Modulation
Teletext
Improved Teletext

9 memory pages per program
CTV system
According to type: B/G/D/K/I/L/L´/M, PAL/SECAM, NTSC on AV
Tuner range
45- 860 MHz, VHF band I-III, S, Hyper, UHF
Pre-tuned TV programmes
99, auto naming

8 Program Groups
Stereo decoders
Menus
Languages
A2 + NICAM

English, Danish, Dutch, Spanish, Italian, German, French, Swedish
Speakers

Power amplifier modules
2 units
Frequency range
100-20.000 Hz
Max sound pressure level
92 dB
Cabinet principle/Net volume
Closed Box/ 0.7 litres
Full Range
80 mm
Bass equalizer
Adaptive
Magnetic shielded
Yes

Connections:
Input TV
Aerial, 1 x 75 ohms
V.TAPE – AV/Decoder
2 x 21-pin for V.TAPE, A/V or Decoder. RGB and S-Video in.
Camcorder/Auxiliary
3 x phono sockets (video in/audio L-R in)
Headphone socket
Mini jack
Power Link
2 x 8-pin sockets
Master Link (Optional)
1 x Master Link
System modulator (Optional)
1 x 75 ohm aerial male (Splitter/System modulator Output).
Set-top box Controller
Motorised stand operation
Mini jack
1 X 5 pin socket

Optional features/modules:
System Modulator EU
4016
System Modulator GB
4018
Master Link module
4015

Stands:

Type:
Height, incl. TV
Floor stand
4088
102 cm
Wall bracket
Motorised Wall bracket
4114
4089

Shelf V8000+DVD1
4134
