The MX range was the first to bring the TV out into the open and it continues to show alternative ways of living with television. Beovision MX4000 was the little brother of the MX6000 having the same functions but with some minor differences when it came to sound and picture. The speaker was not a 2-way bass reflex as in the MX6000 but a 2-way Logline speaker.
Complete with a choice of colours, the specially-designed wall brackets of the MX 4000/4002 gave you the option of placing the MX on the wall. The placement options of the MX 4000/4002 also included a motorised stand with room for your VCR/DVD player.
The TV had a 51cm screen, the same features as MX 6000, but with conventional loudspeakers, optional wall bracket, available in pearlescent shades of: green, blue, red, grey, black or glossy white. With a Beovision MX 4002 as an extra TV in the bedroom, you could access the video and satellite options of the Avant in the living room or wake up to music from the radio and CD of the Ouverture or BeoSound 3000. Beovision MX4002 was replaced with the MX4200 in 2003.
Beovision MX 4000 was the smallest television of Bang & Olufsen televisions in the late 1990s and right up to 2003. It had a 51cm screen, and was equipped with the latest generation of the Black Line picture tube, contrast screen and VisionClear technology. Together they provided an optimum picture quality under any lighting conditions – even when faced with direct sunshine. In spite of their modest size, the log-line loudspeakers located under the screen gave full-tone stereo with great depth and amplitude. MX 4000 had both A2 and NICAM Stereo decoders and Teletext-functions.

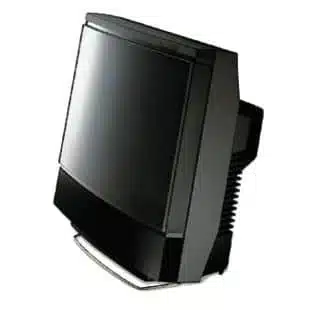

Beovision MX 4000 was probably the most flexible television as far as placing was concerned. You could place it directly on a floor, and using the spring bar underneath the set you could tilt it in order to improve viewing angle. You could place the MX 4000 on the wall with an optional bracket, which also came as a motorised version. When on the wall, you could tilt the screen downwards, towards a bed, for example. Or you could of course place the TV on a stand on the floor, or on a stand on a table. Both stands were available in motorised versions and the floor-stand had an optional video-shelf available. The motorised stand was operated via the Beolink® remote control, that also operated the television and video (shown) as well as all B&O audio systems and light control units.
Beovision MX 4000 was a great addition to a multi-room Beolink® system, where it acted as one link itself and could play audio from the audio system that was located elsewhere in your home. And on the other hand, you could direct the sound from the television to the speakers of your audio system.
It had the same beautiful, sleek and modern design as all other Beovision televisions; the design of which has even been compared to sports cars!
MX Design
Filling a television with every conceivable gadget that technology offers is easy enough. What’s more difficult is identifying what really improves the overall experience of watching TV and eliminating the things that don’t. That’s the philosophy behind the MX range. In both form and function, it’s a clear-cut case of less being more.
Complete with a choice of 6 colours that included green and white, the specially-designed wall brackets of the MX 4000 gave you the option of placing your MX on the wall. The placement options of the MX 4000 also included a motorised stand with room for your VCR/DVD player. The TV was controlled by the provided Beo4 remote control.
Beolink® – Beovision MX 4002
Beovision MX 4002 was the Beolink® variation of the MX 4000. This model gave you numerous options when you were setting up your Beolink® system and needed an extra television in your bedroom, study or kitchen. The MX 4002 was available in the same colours as MX 4000 and had the same placement possibilities as well.
** Beovision 4000/4002 at the time of its introduction, was fitted with a plexi-glass (acrylic) screen. However, since the late 1990’s, the model has a glass screen, the same as the rest of the model range.
Picture tube (Visual picture): 55 cm (51 cm)
Picture tube system: flat square, Hi-Bri, In-Line 110 degrees
Contrast screen: with metallised coating
Design: high format cabinet
Operation Beolink 1000, one-way
Beolink 5000, two-way
Beolink 7000, two-way
TV tuner range: 46 – 855 MHzZ: VHF, S, Hyper, UHF channels
*(System I 470 – 855 MHz: UHF channels)
No. of TV programmes: 59 (+5 for local rooms)
Satellite identification, Station naming/program list
Satellite *Prepared for BeoSat LM
No. of satellite programmes: > 99
Signal/noise level: > 35 dB/1 Vpp and antenna signal > 1mV
Crosstalk between sources: > 45 dB / 5 MHz
Teletext: FLOF, 6 alphabet
Teletext memory: 4 x 59 page nos
Sound system: *Nicam + A2 stereo decoder + A2 dual languages
Speaker system: 2 x Log Line
Long-term max. output power: 2 x 40 W / 8 ohms
Harmonic distortion: < 0.5% at 15 W
Intermodulation: < 1%
Signal-to-noise ratio: > 50 dB weighted 50 mV (NICAM > 70 dB)
Frequency range, audio: 25 – 20,000 Hz +/- 1.5 dB
Power bandwidth: 25 – 20,000 Hz
Channel separation: A” stereo >26 (Nicam > 50 dB)
Bass control: +/- 8 dB / 100 Hz
Treble control: +/- 8 dB /10,000 Hz
Crossover frequency: 3200 Hz
Power supply: 220 – 240 V
Power consumption: 100 (75 – 165) W
Power consumption stand-by: 3 W
Dimensions W x H x D: 51 x 55 x 41.5 cm
Weight: 23 kg
Finish: white, black, red, grey, blue
Connections: AV1 & AV2, S-VHS, Power Link 1 & 2, Audio Aux Link, External speakers L & R, Headphones, B&O motorised stand
Link compatibility: Datalink
Terminal included: Beo4
Picture tube 55cm Flat Square, Hi-Bri with Inwar mask (Visible picture 51cm)
Contrast screen: grey glass
VisionClear, Auto picture adjustment, Auto cut-off, Wideband CTI, Dynamic luminance peaking
TV tuner range: 45 – 865 Mhz, VHF, S, Hyper, UHF
CTV system: according to type: B/G/D/K/L/L´/I/M PAL, SECAM, NTSC on AV
Teletext system: improved Teletext, FastText, 6 languages, 4 memory page pr programme
TV programmes: 59
Sound: stereo
Long-term max. output: 2 x 40 W/ 8 ohm
Stereo decoder/Bilingual: depending on type
A2 + NICAM
Speaker system: Log Line, full range speakers
Power consumption/Minimum: typical 70 W / 2,5 W
Connections: AV Link 2 x 21-pin SCART, Datalink
Super VHS YC playback 4-pin socket
Audio Aux Link 7-pin socket
Power Link 2 x 8-pin sockets
External speakers 2 x 2-pin sockets
Stereo headphones Jack socket 3.5 mm
Motorized stand operation 4-pin socket
Link compatibility: Datalink
Dimensions W x H x D: 51 x 55 x 41.5cm
Weight: 23 kg
Market: Types:
NEU 8720 A-B-CH-D-DK-E-GR-N-NL-P-S-SF-Other B/G
F-GB 8721 F-CH B/G/L/L’/I/D/K
GB 8722 GB B/G/L/L’/I/D/K
ITA 8724 I B/G
AUS 8725 AUS B/G
EEU 8726 SNG, EEU B/G/L/D/K/M/I
Terminal included: Beo4
Picture tube: 55cm Black Line, Black Matrix (Visible picture: 51cm)
Contrast screen: grey glass
VisionClear, Auto picture adjustment, Auto cut-off
Wideband CTI, Dynamic luminance peaking
TV tuner range: VHF, S, Hyper, UHF
CTV system: depending on type: B/G/D/K/L/L´/I/M PAL, SECAM, NTSC on AV
Teletext system: improved Teletext, FastText, 6 languages, 4 memory page per programme
TV programmes: 59
Sound: stereo
Long-term max. output: 2 x 40 W / 8 ohm
Stereo decoder/Bilingual: depending on type
A2 + NICAM B/G/I optional
A2 + NICAM B/G/L optional
Speaker system: log Line, full range speakers
Power consumption/Minimum Typical 90 watts / 2 W
Dimensions W x H x D: 51 x 55 x 41.5cm
Weight: 23 kg
Connections: AV Link 1 x 21-pin SCART, Datalink
Super VHS YC playback 4-pin socket
Audio Aux Link 7-pin socket
Power Link 2 x 8-pin sockets
External speakers 2 x 2-pin sockets
Stereo headphones Jack socket 3.5 mm
Motorized stand operation 4-pin socket
Link compatibility: Datalink
Terminal included: Beo4
Picture tube: 55 cm Black Line, Black Matrix (Visible picture 51cm)
Contrast screen: acrylic
VisionClear, Auto picture adjustment, Auto cut-off
Wideband CTI, Dynamic luminance peaking
TV tuner range S, Hyper, UHF
CTV system Multistandard NTSC on AV
Teletext system: FastText, 6 languages memory
TV programmes: 59
Sound: stereo
Long-term max. output: 2 x 40 W / 8 ohm
Stereo decoder/Bilingual: NICAM
Speaker system: Log Line, full range speakers
Power consumption/minimum: typical 90 W / 2 W
Dimensions W x H x D: 51 x 55 x 41.5cm
Weight: 23 kg
Connections: AV Link 1 x 21-pin SCART, Datalink
Super VHS YC playback 4-pin socket
Audio Aux Link 7-pin socket
Power Link 2 x 8-pin sockets
External speakers 2 x 2-pin sockets
Stereo headphones Jack socket 3.5 mm
Motorised stand operation 4-pin socket
Link compatibility: Datalink
Terminal included: Beolink 1000
Picture tube: 55cm Black Line, Black Matrix (Visible picture 51cm)
Contrast screen: acrylic
VisionClear, Auto picture adjustment, Auto cut-off, Wideband CTI, Dynamic luminance peaking
Teletext system: FastText, 6 languages, memory
TV programmes: 59
Sound: stereo
Long-term max. output: 2 x 40 W / 8 ohm
Speaker system: Log Line, full range speakers
Power consumption/Minimum Typical 90 W / 2 W
TV Types according to market:
3320 VHF, S, Hyper, UHF Multistandard NTSC AV A2
3337 (including transposer) VHF, S, Hyper, UHF Multistandard NTSC AV A2
3336 (including transposer) VHF, S, Hyper, UHF Multistandard NTSC AV A2
3332 (satellite module) VHF, S, Hyper, UHF Multistandard NTSC AV A2
3329 (satellite module) UHF PAL I NICAM
3327 (satellite module built-in) VHF, S, Hyper, UHF Multistandard NTSC AV NICAM + A2
3323 UHF PAL I NICAM
3326 (satellite module built-in VHF, S, Hyper, UHF Multistandard NTSC AV A2
Dimensions W x H x D: 51 x 55 x 41.5cm
Weight: 23 kg
Connections: AV Link 2 x 21-pin socket
Super VHS YC playback 4-pin socket
Audio Aux Link 7-pin socket
Power Link 2 x 8-pin socket
External speakers 2 x 2-pin socket
Stereo headphones Jack socket 3.5 mm
Motorised stand operation 7-pin socket
Link compatibility: Datalink
