Every Bang & Olufsen TV is born with star quality and lives up to the company’s highest traditions: intriguing design, logical operation and sophisticated options.

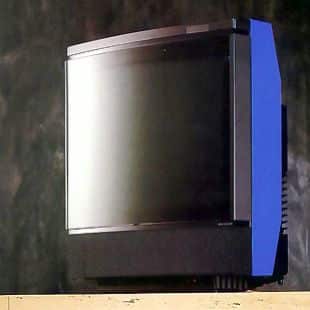

Beovision MX 3500 appeared so light that to think of it hanging on the wall would have been quite logical. In fact, like other MX TVs, it could (and still can) be done. TV could then be watched from any angle; the set could be turned horizontally and adjusted vertically. You could also place the MX 3500 directly onto the floor. Or on one of the specially designed stands, which fully complimented such a handsome TV.
Beovision 3500 was born with perfect razor-sharp pictures colours and automatic contrast regulation. As well as quick-search Teletext. And stereo decoders that let you receive concerts in the finest stereo sound, regardless of the stereo system transmitted.
As with every Bang & Olufsen TV, you could connect Beovision 3500 to video recorders, extra loudspeakers, headphones, decoders, personal computers, TV games consoles and amplifier loops for those with hearing impairment. And if you wanted, you could also have Bang & Olufsen’s satellite receiver built into the cabinet.
You could choose from five different, clear colours for Beovision MX 3500; from the outright daring to the highly discreet.
Specifications: CTV system Multi-standard B/G/L
In GB version: only I
Colour system Pal/ SECAM, NTSC A/V 4.43 MHz / 3.58 MHz
Picture tube (Visual picture) 55 cm – 21″ (51 cm – 20″)
Picture tube system Flat square, Hi-Bri, In-Line 110 degrees
Contrast screen With metallised coating
Design High format cabinet
Cabinet White, black, red, grey, blue
Provisional specifications:
Sound system Built-in NICAM EU + A2 stereo decoder
Built-in Nicam EU + A2 dual language
TV tuner range 46 – 855 MHZ: VHF, S, Hyper, UHF
No. of TV programmes 50
Satellite Prepared for BeoSat LM kit
No. of satellite programmes 64
Signal/noise level > 35 dB/1 Vpp and antenna signal > 1mV
Crosstalk between sources > 45 dB / 5 MHz
Teletext FLOF, TOP, 5 alphabet, 6 alphabet (E)
Teletext memory 4 x 50 page nos.
Station identification Via Teletext/station naming
Main features:
Operation Beolink 1000, one-way
Prepared for two-way
Sound center balance between BeoLab and Beovision speakers
Speaker system: 2 x Log Line
Speaker units: full range 2 x 7.5cm
Long-term max. output power: 2 x 40W/ 8 ohms
Harmonic distortion: < 0.5% at 15W
Intermodulation: < 1%
Signal-to-noise ratio: > 50 dB weighted 50 mV (NICAM > 70 dB)
Frequency range (audio): 25 – 20,000 Hz +/- 1.5 dB
Power bandwidth: 25 – 20,000 Hz
Bass control: +/- 8 dB / 100 Hz
Treble control: +/- 8 dB /10,000 Hz
Power supply: 220 – 240V
Power consumption: 100 (75 – 165)W
Power consumption: stand-by 3W
Dimensions W x H x D: 51 x 55 x 41.5cm
Weight: 23 kg
Connections: AV Link 2 x 21-pin SCART sockets
Super VHS YC playback 4-pin socket
Audio Aux Link 7-pin socket
Power Link 2 x 8-pin sockets
External speakers 2 x 2-pin sockets
Motorized stand operation 4-pin socket
Aerial VHF – UHF 75 ohms coaxial socket
Stereo headphones jack socket 6 mm
Link compatibility: Datalink
