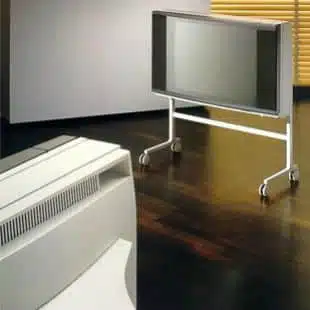

BeoVision LX 2502

Advanced TV technology at its most elegant

Beovision 2802 was the latest version of the classic Bang & Olufsen TV. Fully remote controlled, it was created specially for those who require all the features of today’s TV – and who also seek a timeless design that would blend perfectly into their living environment. Slim and elegant, Beovision LX2802 came in either traditional natural woods or a contemporary white finish.

To the finest detail

B&O is renowned for its attention to detail and craftsmanship. You won’t find any fussy buttons on B&O’s sets – because, with full remote control, they simply aren’t necessary. Absolutely nothing looks out of place or superfluous with a Bang & Olufsen TV. The materials are always selected with the utmost care. The closest attention is always paid even to the design of the back of the TV. The company believes that appearances matter a great deal, because you’ve got to live with a TV day in, day out. On or off, it should be easy on the eye.

The perfect picture – from any angle

You don’t have to sit bang in front to get a good view of Bang & Olufsen TV sets. The 66cm flat-square picture tube of these Beovisions gave a clear, undistorted picture even when viewed from the side. Combine that with the specially developed VisionClear system, and you’ve got eye-opening picture quality. The colour balance and contrast are regulated automatically, 50 times every second. There’s even a contrast screen to make sure that your picture’s always in harmony with the light levels in the room. Razor-sharp quality – and it’s built to last.

BeoVision LX 2502 Product Details

Type Numbers

3841 ( 1988 - Dec 1989)
3481 ( 1988 - Nov 1989)
3496 (AUS, TXT) ( 1988 - Sept 1989)
3856 (AUS, TXT) ( 1988 - Dec 1989)
3860 (E, TXT) ( 1988 - Dec 1989)
3855 (E, TXT, MULTI)( 1988 - Jan 1990)
3492 (F, MULTI) ( 1988 - Dec 1989)
3493 (F, MULTI, Antiope) ( 1988 - June 1988)
3487 (GB, TXT) ( 1988 - March 1989)
3847 (GB, TXT) ( 1988 - June 1990)
3488 (GB, TXT, NICAM) ( 1988 - Jan 1990)
3848 (GB, TXT, NICAM) ( 1988 - Dec 1989)
3860 (GR, PAL/SECAM) ( 1988 - Dec 1989)
3858 (I, TXT) ( 1988 - Dec 1989)
3852 (MULTI) ( 1988 - Dec 1989)
3853 (MULTI, Antiope) ( 1988 - Dec 1988)
3491 (MULTI, HYPER) ( 1988 - Nov 1989)
3851 (MULTI, HYPER) ( 1988 - Dec 1989)
3482 (TXT) ( 1988 - June 1990)
3842 (TXT) ( 1988 - May 1990)
3483 (TXT, HYPER) ( 1988 - Nov 1989)
3843 (TXT, HYPER) ( 1988 - Jan 1990)
3494 (TXT, MULTI) ( 1988 - Dec 1989)
3854 (TXT, MULTI) ( 1988 - Jan 1990)
3484 (TXT, NICAM) ( 1988 - Jan 1990)
3844 (TXT, NICAM) ( 1988 - Apr 1990)
3485 (TXT, PAL/SECAM)( 1988 - Dec 1989)
3845 (TXT, PAL/SECAM) ( 1988 - Apr 1990)

Designer

Manufactured

1988 - 1990

Colour Options

Rosewood, teak, white and White Line

BeoVision LX 2502 Product Specification

Operation: Beolink 1000
Datalink system: Beolink®
Compatible to older Beocord VCRs
Features: Stereo sound, stereo enhancement ,bilingual sound
Number of programmes: 32 VHF-UHF, S-channels
Range: VHF 46-300MHz, UHF 470-855 MHz
Picture tube: 45 AX 110° in line self-converging
Start time: approx. 5 sec.
Aerial impedance: 75 ohms coaxial
Sound power output: 2 x 15 W / 8 ohms
Frequency range: 25 Hz – 20000 Hz +/- 1.5 dB
Bass control: +/- 8 dB / 100 Hz
Treble control: +/- 8 dB / 10000 Hz
Power supply: 180 – 265 V
Power frequency: 50 – 60 Hz
Power consumption: 95 (75-165) W
Stand-by: 3.5 W

Connections: headphones output max 7.5V / 200 ohms
External speakers: 4 – 8 ohms
AUX 3 A/V Socket 6 pin DIN Video output 1 Vpp 75 ohms
Video input: 1 Vpp 75 ohms
Audio output: 1V 47 kohm
Audio input: 1 V 1 kohm
AUX 2 A/V Socket 21 pin Video
Video, RGB, Fast blanking
Audio
IR-codes pin 8 2Vpp
Control coltage pin 8 > 9.5 V
Tape output 5 pin DIN 1 V 1 kohm
Amp. output 5 pin DIN 0-1 V 2.5 kohm
AUX 1 Audio Line 7 pin DIN Input 350 mV 47 kohms
Output 1 V 2 kohms
Datalink In/Out
Dimensions: 78 x 48 x 42 cm
Weigh; 37 kg
Link compatibility: Datalink
