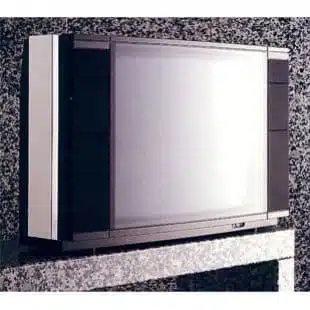

There were no fussy buttons to spoil the clean looks of Beovision L2802. You controlled it entirely with the Beolink 1000 remote control terminal. Only a discreet red light told you that the TV was ready and awaiting your commands. The flat-square 66cm picture tube gave you a clear, undistorted view, even if you were not sitting right in front of the screen. Bang & Olufsen’s own VisionClear system regulated the colour balance 50 times a second, and in variable light conditions the picture always looked good, with automatic contrast regulation and the contrast screen.
As specialists in good sound, Bang & Olufsen are always very particular about loudspeakers. That is why both Beovision LX and L models incorporated a special bass-reflex speaker system, giving you genuine hi-fi quality to enhance your stereo video tapes. You could also have a NICAM decoder fitted, ready to receive stereo broadcasts of TV programmes.
Beovision LX models had Bang & Olufsen’s powerful Teletext module fitted as standard. However, for the Beovision L2802 and L2502 models, this was left out. This was the only difference between the LX2802 and L2802 models.
L2502 had a 63cm screen; the specifications were the same as the 66cm model.
Operation: Beolink 1000
Datalink system: Beolink®
Compatible to older Beocord VCRs
Features: stereo sound, stereo enhancement, bilingual sound
Number of programmes: 32 VHF-UHF, S-channels
Range: VHF 46-300MHz, UHF 470-855 MHz
Picture tube: 45 AX 110° in line self-converging
Start time: approx. 5 sec
Aerial impedance: 75 ohms coaxial
Sound power output: 2 x 15 W / 8 ohms
Frequency range: 25 Hz – 20,000 Hz +/- 1.5 dB
Bass control: +/- 8 dB / 100 Hz
Treble control: +/- 8 dB / 10,000 Hz
Power supply: 180 – 265 V
Power frequency: 50 – 60 Hz
Power consumption: 95 (75-165) W
Stand-by: 3.5 W
Dimensions 86 x 52 x 46
Weight 43 kg
Connections: headphones output max 7.5V / 200 ohms
External speakers: 4 – 8 ohms
AUX 3 A/V Socket: 6 pin DIN Video output 1 Vpp 75 ohms
Video input: 1 Vpp 75 ohms
Audio output: 1V 47 kohm
Audio input: 1 V 1 kohm
AUX 2: A/V SCART socket 21 pin Video
Video: RGB, fast blanking
Audio: IR-codes pin 8 2Vpp
Control voltage pin: 8 > 9.5 V
Tape output: 5 pin DIN 1 V 1 kohm
Amp. output: 5 pin DIN 0-1 V 2.5 kohm
AUX 1 Audio Line: 7 pin DIN Input 350 mV 47 kohms
Output: 1 V 2 kohms
Datalink: In/Out
Link compatibility: Datalink
