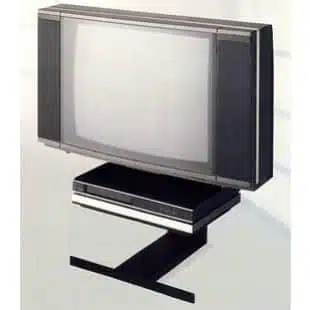

BeoVision L 2500

Beovision L2800, L2500

These two television sets were for those who did not require the full range of hi-fidelity specifications offered by the Beovision LX2800 and LX2500 range. It was an ideal alternative and was designed with the same elegant shape and style. The L2800 and L2500 models provided the uncompromising standard of sound and picture always associated with Bang & Olufsen.

Available in a modern grey finish, Beovision L series was not equipped with Teletext although this could be fitted as an optional extra.




BeoVision L 2500 Product Details

Type Numbers

3761 (1986 - Mar 1988)
3772 (F, Multi) (1986 - Oct 1987)
3766 (GB) (1986 - Jan 1988)
3762 - (S-D-GB TXT) (1986 - Apr 1988)

Designer

Please let us know

Manufactured

1986 - 1988

Colour Options

Grey

BeoVision L 2500 Product Specification

CTV system (according to type)
Picture tube size: 63cm flat square (Visual picture size 59cm)

Speaker system, stereo; 2 pressure chamber cabinets
Sound power output RMS: 2 x 15 W / 8 ohms
Harmonic distortion: 0.5%
Intermodulation: < 1 %
Frequency range: +/- 1.5 dB 25 – 20000 Hz

Power supply: 220 – 240 V
Power consumption: 95 W
Stand by: 3.5 W
Dimensions W x H x D: 78 x 48 x 42cm
Weight: 37 kg
