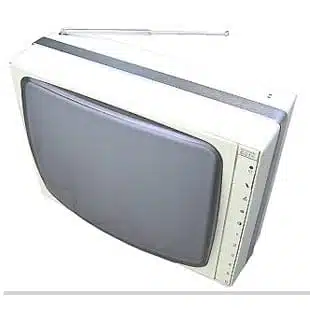

The Beovision 601 was visually very similar to the Beovision 600, but it used a mildly redesigned chassis. The changes centred mostly around the receiver section, which made greater use of integrated circuits that the previous model had done.
The Beovision 601 was the last true Bang & Olufsen portable television, in as much as it was designed and produced by them in Denmark. It would be the late 1980’s before another portable model would appear, which was the disappointing MX 1500, a Philips set made in a Philips factory in Italy.
Picture tube 17″ – 44 cm Preprogramming VHF – UHF Speaker One side-facing Power supply 220 volts Power consumption 90 watts Dimensions H x W x D 33.2 x 43.4 x 30.8 cm Weight 13.1 kg Picture tube 110° TV tuner range 2 – 11 21 – 60 TV system CCIR VHF B UHF G Aerial impedance 75 ohms coaxial Common VHF – UHF Sound output 4 watts Harmonic distortion < 1 % Bass control No Treble control Yes
