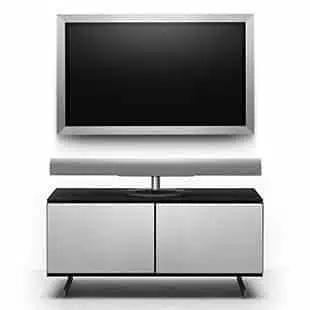

The recommended centre channel loudspeakers are BeoLab 4000. This plasma TV set has been previously only available in the North American market including Canada, Mexico and the US. When combined with speakers and stands, BeoVision 4 becomes an integral part of BeoSystem 1. However, from Spring 2004 the system – known as Beosystem 2 – arrived in Europe.

This European system incorporates different-sized screens and may be mounted on a wall. Available in 50″ and 65″ screen sizes (37″ and 42″ screen sizes available only to March 2006) The screen surround is of brushed aluminium and is based upon much the same design as BeoVision 5. VisionClear and an anti-reflection coating is included. Controlled by Beo4, the system comprises:

Dolby Digital Surround Sound Decoder

• Set-Top -Box Controller
• Picture-in-picture
• MasterLink module

HF Modulator

Cabinet 2168 is similar to cabinet type 2164 and has a shiny, aluminium-coloured front. Within it can be placed a satellite decoder, DVD 1 and/or Beocord V8000, if these are your required options.

Part:

Part Number:

• BeoVision 4-37 silver – 1816608
• BeoVision 4-37 black – 1816609
• BeoVision 4-37 dark grey – 1816610
• BeoVision 4 42 silver including wall bracket – 1816049
• BeoVision 4 42 dark grey including wall bracket – 1816578
• BeoVision 4 42 black including wall bracket – 1816577
• BeoVision 4 50 black including wall bracket – 1816591
• BeoVision 4 50 dark grey including wall bracket – 1816592
• BeoVision 4 50 silver including wall bracket – 1816415
• BeoSystem 2 – 1816403
• Cabinet 2168 – 1216813
• Cabinet BV4 – 1216813
• BeoVision 4 65 silver – 1816632
• BeoVision 4 65 black – 1816633
• BeoVision 4 65 dark grey – 1816634
• BeoSystem 2 (BV4 65) – 1816403
• BeoVision 4 65 Wall Brackets – 1405866
• Remote Control for BV4 stand alone – 8053460

BeoVision 4 Wall Bracket and Table Stands

A new wall bracket and table stand for the BeoVision 4 range will be available from December 2004. The new wall bracket is finished in black lacquered steel and with its reduced dimensions is suitable for use with the 37”, 42” and 50” screen options.

The table stands will be available in two options: one for BeoVision 4-37 and the other for either BeoVision 4-42 or BeoVision 4-50. The Table Stands will be finished in black, painted aluminium.

The only accessory for BV4-65 is the wall bracket. Introduced on BV4-65 will be a slightly darker Contrast Screen resulting in an improved perceived picture quality due to the lower black level.

Wall Bracket & Table Stand Part Numbers:

• BV4 Wall Bracket 1407866
• Table Stand BV4-37 1408566
• Table Stand BV4-42/50 1407966

BeoVision 4 – 42 Newsletter April 2004

In view of the general expansion of flat screens in the market, Bang & Olufsen is now strengthening its flat screen portfolio by launching BeoVision 4 – 42. BeoVision 4 – 42 is a modular flat screen home-cinema system master consisting of:

A 107cm plasma monitor for wall mounting (wall bracket included)

BeoSystem 2 – a master unit offering the customer a genuine Bang & Olufsen system master

an elegantly designed cabinet for placement of BeoSystem 2 and a separate box solution, e.g. DVD 1.

In line with our vision of constantly questioning the ordinary in search of surprising and long-lasting experiences, it is crucial for Bang & Olufsen to stand out. The mere offering of a plasma solution with a separate master unit is far from unique in the market today. Still, we put great value in differentiating Bang & Olufsen products from our competitors.

BeoVision 4 – 42 is differentiated by:

A true Bang & Olufsen visual expression and craftsmanship to the last detail with the aluminium frame on the monitor, the design of the cabinet and the possible combination with BeoLab loudspeakers, BeoVision 4 – 42 has a true Bang & Olufsen visual expression. This is characterised by an elegant design, an exquisite choice of materials and craftsmanship to the last detail.

The aluminium frame is mounted on a handmade mainframe made of steel. There are no visible screws or welding notches – even the screws are handmade in order to ensure a smooth surface and not disturb the visual expression. By means of our special surface treatment competences, we have achieved a beautiful yet robust surface of the aluminium on the frame and the cabinet.

BeoVision 4 – 42: a system master that offers freedom of application.

The BeoVision 4 – 42 solution offers not only sublime experiences in a home-cinema setup. It also is fully compatible with the Beolink® system and can work as a system master that distributes sound and/or picture to up to 16 rooms. BeoVision 4 – 42 is a modular system, it has a built-in Dolby® Digital/DTS® module, and it can be integrated with the entire BeoLab loudspeaker range, as well as with Bang & Olufsen audio and video products. There is only one cable between the monitor and the master unit which increases the placement flexibility. All this maximises the freedom of application – only your imagination sets the limits for a true Bang & Olufsen experience.

Easy operation – One remote

Despite the possibility of integrating BeoVision 4 – 42 with many products and features, the operation is well-known and simple – based on one remote: Beo4. This is ensured via the IR-eye which is connected to BeoSystem 2. The built-in Set-top Box Controller is an example of the simplified operation principle of Bang & Olufsen; digital television can be received from a separate satellite box, but still operated with Beo4.

VisionClear – improved picture technologies

VisionClear is a concept developed by Bang & Olufsen that focuses on picture improvement technologies. Among the technologies is the peaking technology, which sharpens the picture by making a simulated contour around objects so that every detail stands out. There is a tendency in the market to overdo the peaking – so that the picture becomes unnaturally sharp. Bang & Olufsen focuses on creating a natural sharpness in the picture – therefore the picture is only peaked to a certain limit. The natural picture is moreover helped by noise reduction. As the peaking technology also makes noise more visible, a noise reduction circuit is incorporated in BeoVision 4 – 42 to compensate for the increased noise. This way BeoVision 4 – 42 offers sharp yet noiseless pictures.

Viewing Comfort – improved viewing experience

The Viewing Comfort concept focuses on the interface between the screen and the user, and between the screen and the room. It has been developed to improve the subjective viewing experience of the user. Viewing Comfort elements in BeoVision 4 – 42 include the anti-reflection coated contrast screen, which reduces reflections of incoming light and improves the black level. The black level of BeoVision 4 – 42 is better than what is generally seen in the market for plasma – meaning that what looks black is more black, rather than grey.

The result is deeper and richer colours. Other Viewing Comfort elements in BeoVision 4 – 42 are electronic curtains and automatic picture format optimisation. (Due to the separation of monitor and master in BeoVision 4 – 42, the Automatic Picture Control feature known from BeoVision 5 and other BeoVision products is not available in BeoVision 4 – 42).
