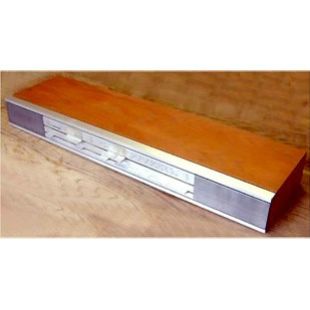

BeoMaster 800

This continued the B&O theme of receivers with built in speakers, the receiver at the centre of the product being the Beomaster 901. Very slim and elegant if inordinately long!




BeoMaster 800 Product Details

Type Numbers

2601 (1972 - May 1974)

Designer

Manufactured

1972 - 1974

Colour Options

Rosewood, Teak

BeoMaster 800 Product Specification

Power output 2 x 20 W / 8 ohms
2 x 19 W / 4 ohms
2 x 40 W / 8 ohms
2 x 25 W / 4 ohms
Speaker impedance: 4 ohms
Harmonic distortion: < 0.1 %
Intermodulation: < 1.0 %
Frequency Response: 20 – 30000 Hz
Signal-to-noise ratio: > 50 dB
Channel separation: > 50 dB

Bass control: +/- 17 dB
Treble control +/- 14 dB

FM tuner: range 87.5 – 104 MHz

AM tuner:
147 – 350 kHz
520 – 1610 kHz

Power supply:: 110 – 130 – 220 – 240 V; 50 – 60 Hz
Power consumption:15 – 120 W
Dimensions W x H x D: 7.5 x 50 x 22.8cm
Weight: 5.5 kg

Connections: Tape DIN
Phono: DIN
Speakers: 1 set
