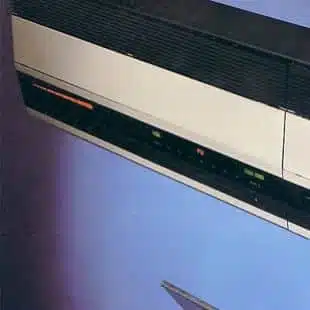

Beomaster 3000 was the central part of Beosystem 3000. It was an FM and AM receiver with four preset FM stations and a power output of 30 watts. Beomaster 3000 featured Automatic power Handling Control which protected amplifier and speakers against overload.
The electronic volume control ensured a smooth transition to more, or less, sound, and the volume level could be preset. By activating ‘mute’ you could silence a function without turning it off. Another touch, and the function resumed where it left off.
Add a Beocord 2000, a Beogram 3000 and maybe a Beogram CDX and you had a stylish and high performance set up. This receiver could be seen as the natural descendant of the Beomaster 2400-2.
Power output RMS DIN/IEC: 2 x 30 W / 8 ohms
Harmonic distortion DIN/IEC: < 0.08 %
Power output 20 – 20,000 Hz IHF: 2 x 25 W / 8 ohms
Total harmonic distortion IHF: 1.6 dB / 8 ohms
Intermodulation IHF: < 0.1 %
Response frequency 20 – 20,000: Hz +/- 1.5 dB
FM range: 87.5 – 108 MHz
AM tuner:
LW range 2932 – 2935 – 2937: 150 – 350 kHz
MW range 2932 – 2935 – 2937: 520 – 1610 kHz
Power supply:
2932 – 2935: 240 V
2939: 220 V
2931 – 2939: 220 V
2933: 120 V
Power consumption:: 20 – 170 W
Dimensions: W x H x D: 62 x 7 x 25cm
Weight: 7 kg
RIAA amplifier: built-in
Connections: Phono DIN
Tape 1: DIN
Tape 2: Phono plugs
Speakers: 2 sets
Headphones: max 12 V / 220 ohms
Available documents are listed, if none are listed then please reach out to see if we have them.
Type | Language | Type | Type | |
User Guide | EN | 2931, 2932, 2933, 2935, 2937, 2939 | BeoMaster 3000 Uer Guide | |
User Guide | EN | 2402 | BeoMaster 3000 Uer Guide | |
Service Manual | EN | 2931, 2932, 2933, 2935, 2937, 2939 | BeoMaster 3000 Service Manual | |
Service Manual | EN | 2402 | BeoMaster 3000 Service Manual | |
Circuit Diagram | EN | 2402 | BeoMaster 3000 Circuit Diagram |
