Operation controls were separated into primary, secondary and tertiary functions. The primary functions – those you used every day – included programme selection, volume control and the off switch. They were easily accessible on the outside of the set. The secondary controls were under an aluminium panel. These included facilities for presetting 5 FM programmes; balance and tone controls; AFC (Automatic Frequency Control facility – which keeps stations properly tuned) and a mono/stereo switch. The tertiary functions, which were also hidden but easily accessible, were the connection sockets: you could make all connections for a record player, cassette deck, headphones and two pairs of speakers without moving the set.

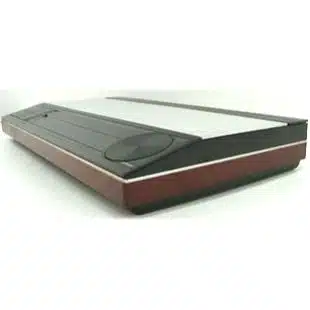

Beomaster 2200 had a modular chassis. The modules were connected by wire-wrapping – a construction method that enhanced the product’s quality and reliability. This technique was originally adopted from computer production. The technique replaces conventional soldering, thereby eliminating any weaknesses arising from dry-joints, drop-outs and so on.
Volume adjustment was by means of a small slider along a numerical scale. Secondary controls included AFC (Automatic Frequency Control) coupled with silent tuning (AFC/ST), FM presetting dials for the radio, mono/stereo selection and loudspeaker switches.
These were all mounted beneath a hinged lid which opened when the PROGRAM panel was touched. A further compartment housed all the connection sockets which were easily accessible from the front of the unit. There was therefore a distinction between the functions which are frequently used, those that are used only once in a while, and those that would have been used a very few times during the set’s life.
The primary functions were for selecting the programme source, controlling volume and switching the set off – so these were the only controls that were on the outside of the set.
Beomaster 2200 could be made up as part of the Beosystem 2200, when linked together with other compatible Bang & Olufsen products.
Power output: 2 x 40 W / 4 ohms
2 x 30 W / 8 ohms
Music power: 2 x 75 W / 4 ohms
2 x 40 W / 8 ohms
Speaker impedance: 4 ohms
Harmonic distortion: < 0.05 %
Intermodulation: < 0.1 %
Frequency range: 20 – 30000 Hz
Signal-to-noise ratio pickup low impedance: > 60 dB
Bass control at 40 Hz:: +/- 12 dB
Treble control at 12500 Hz: +/- 12 dB
FM tuner range: 87.5 – 108 MHz
AM tuner:
LW 147 – 350 kHz
MW 520 – 1610 kHz
Power supply: 110 – 130 – 220 – 240 V
Power consumption: 15 – 175 W
RIAA amplifier: built-in
Dimensions W x H x D: 54 x 7.5 x 30.5 cm
Weight: 8.7 kg
Connections: Speakers 2 sets
Headphones: max. 13 V / 200 ohms
Tape: DIN
Phono: DIN
