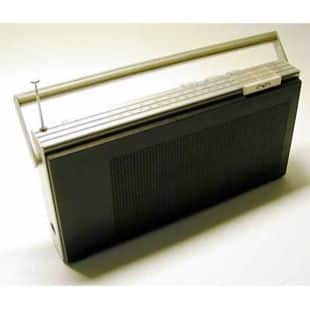

BeoLit 500 (1972)
This was the development of the Beolit 400 and like that model was FM only. However it usefully included a mains transformer so the BeoPower transformer was no longer required.
Overview
This was the development of the Beolit 400 and like that model was FM only. However it usefully included a mains transformer so the BeoPower transformer was no longer required.
Product Details
Software
No software information available.
Product Specification
Amplifier:
Power output 1 watt / 4 ohms
Speaker impedance 4 ohms
Harmonic Distortion At 50 mV output: < 0.8 %
At specified output < 2 %
Frequency response: 90 – 14,000 Hz
Dry cells: 5 batteries: 33 x 60.5mm
Voltage: 7.5 volts
Power consumption with Power Unit (Beolit 400 with external power supply, Beopower 600):
AC: 220 – 240V
Frequency: 50Hz
Power consumption: 0,7 – 5W Dimensions W x H x D: 22 x 36 x 6cm
Weight 2.62 kg
FM Radio:
Range 87,5 – 104 MHz
Sensitivity 23 dB
Limiting <7µV / 75 ohms
Frequency Response 65 – 20,000 Hz
Harmonic Distortion <1.2 %
Connections: External Power 7.5 V
Downloads
Type | Language | Type | |
Service Manual | EN | Beolit 500 Service Manual | |
Service Manual | EN | Beolit 500 Service Manual |
