BeoLink Video

BeoLink Video

This kit is designed to allow a Beovision to be used in a link room but have full access to the sources, both audio and video, in the main room. It attached to the link TV by means of a 7 pin cable and had no IR receiver as it utilised that in the TV. […]

Overview

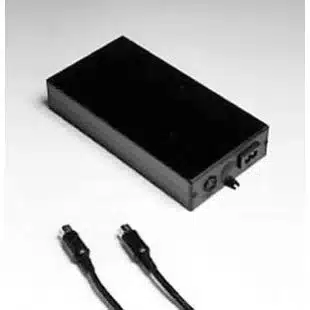

This kit is designed to allow a Beovision to be used in a link room but have full access to the sources, both audio and video, in the main room.

It attached to the link TV by means of a 7 pin cable and had no IR receiver as it utilised that in the TV. A separate RF cable was required between the RF modulator on the main room set and the link TV.

Product Details

Type Number:1615
Release Date:1995
Designer:David Lewis
Colour / Finish:Black

Product Specification

For connection of a extra TV to a ML-based audio or video system
Operation
Remote operation Beolink 1000 one-way
(Through connected products) Beo4 one-way
Beolink 5000 two-wy (only AV 9000 Audio kit)
Compatibility Beosystem AV 9000
All A/V masters with Master Link distribution
All video masters with Master Link distribution
Cabinet Black aluminium/plastic
Placement Fastened to the wall
System data
Frequency response 20 - 20,000 Hz +0/-1 dB
Signal-to-noise ratio > 82 dB
Dimensions W x H x D 20 x 10.5 x 4 cm
Power consumption, operation 2.1 watts (230 V AC)
Power consumption, stand-by < 1.5 watts (230 V AC)
Weight 0.6 kg

Downloads

    Type

Language

Type

    Type

Service Manual

EN

1615

BeoLink Video Service Manual

Service Manual

EN

1615

BeoLink Video Service Manual
