BeoLink Active

BeoLink Active

This comprises a control box, an IR receiver and a mains lead. This allowed the connection of active BeoLab speakers which would then have independent control of volume and tone settings. Both audio and video sources could be selected and there was also the option of using the Beolink receiver to enable the Timer, alter […]

Overview

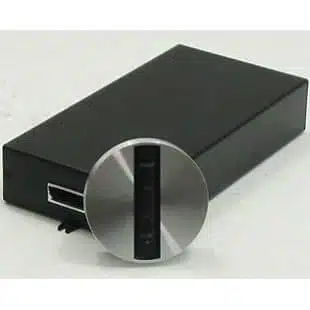

This comprises a control box, an IR receiver and a mains lead.

This allowed the connection of active BeoLab speakers which would then have independent control of volume and tone settings. Both audio and video sources could be selected and there was also the option of using the Beolink receiver to enable the Timer, alter the volume and enable play or initiate Stand By.

Product Details

Type Number:1616, 1618
Release Date:1995
Designer:David Lewis
Colour / Finish:Black

Product Specification

Operation:

Local operation Four easy-touch push buttons (timer on/off, colume up or down and play/stand-by)
Remote operation Beolink 1000 one-way (optional extra)
Indicators Two red LEDยดs (Timer and stand-by)
Independent sound control Volume, balance, bass, treble and loudness
Compatibility All A/V masters with Master Link distribution

Cabinet

Black aluminium/plastic

Placement

Fastened to the wall

System data

Frequency response 20 - 20,000 Hz +0 / -1 dB
Signal-to-noise ratio > 86 dBA
Input impedance (20 - 20 kHz) > 100 komhs
Channel cross talk 50 dB
Amplification 14 dB
Volume control Full range
Bass/treble equalization +/- 9 dB (100 Hz / 10 kHz)
Loudness Yes
Balance Yes

Dimensions W x H x D 20 x 10.5 x 4 cm
Power consumption, operation 2.8 watts (230 V AC)
Power consumption, stand-by < 2.3 watts (230 V AC)
Weight 0.6 kg
