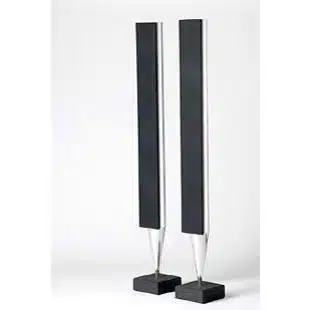

BeoLab 8002
An update of the long running Beolab 8000, the Beolab 8002 introduced new drive units powered by a pair of ICE amplifiers rated at 125W each.B&O themselves commented that sound quality was unchanged and so this can be seen as a rationalising of the range rather than a radical overhaul of a much loved icon. The […]
Overview
An update of the long running Beolab 8000, the Beolab 8002 introduced new drive units powered by a pair of ICE amplifiers rated at 125W each.B&O themselves commented that sound quality was unchanged and so this can be seen as a rationalising of the range rather than a radical overhaul of a much loved icon.
The mode LED was repositioned, but otherwise it seemed business as usual. A three way switch for room positioning was now included at the expense of the phono socket previously fitted. As before, only one Powerlink socket was provided.
Product Details
Software
No software information available.
Product Specification
Cabinet/Cover:
Black/black, dark grey/dark grey, red/black, blue/black,
silver/black, silver/white, golden/black
POWER CONSUMPTION
Typical: 19 W; Networked standby: 0.4 W
LONG-TERM MAXIMUM OUTPUT
POWER AMPLIFIER, BASS
125 W, Class D, ICEpower
POWER AMPLIFIER, TWEETER
125 W, Class D, ICEpower
EFFECTIVE FREQUENCY RANGE*
48-28,000 Hz
SENSITIVITY**
88 dB SPL re 125 mVrms re 1m
CABINET PRINCIPLE
Bass reflex
CABINET VOLUME
5.3 litres
BASS DRIVER
2 x 4″ cone
TWEETER
¾” dome
Adaptive Bass Linearisation (ABL)
Room adaptation
Thermal protection
CONNECTIONS
1 x PowerLink
Line in via PowerLink
ACCESSORIES
Wall bracket, black
Stand, black
Cover
ROOM ADAPTATION
Free, Wall or Corner position
MAGNETICALLY SHIELDED
No. Must be placed > 50 cm from picture tube
INPUT SENSITIVITY (POWER LINK)
125 mV (88dB SPL)
INPUT SENSITIVITY (LINE)
125 mV (88dB SPL) – Auto switch on
SWITCH-OFF TIME (LINE)
3 min.
INDICATOR
On/Off LED
OPERATION
Switch for Free, Wall, Corner
Switch for Left – Right – Line (via PL plug)
PROTECTION
Thermal protection of all drivers.
ABL system protects the bass unit against mechanical damage.
POWER SUPPLY
Automatic voltage adaptation 100-120 Vac or 190-240 Vac
MEASUREMENT CONDITIONS:
*EFFECTIVE FREQUENCY RANGE is measured at -10 dB re. Ref level (200-2000 Hz)
**SENSITIVITY is measured at dB SPL 1m re 125 mV
Downloads
Type | Language | Type | |
User Guide | EN | BeoLab 8002 User Guide | |
Service Manual | EN | BeoLab 8002 Service Manual |
