BeoLab 7-4

BeoLab 7-4 brings extra authenticity to any film or TV experience. Using the same acoustic lens technology found in BeoLab 5, this compact but powerful speaker is optimised specifically to reproduce the sound of voices. This is essential in a surround sound set-up, as eighty per cent of the voice information goes through the centre channel. Next time you watch a movie, you won’t miss a whisper.

Surround sound centrepiece

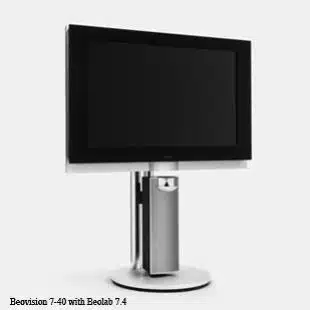

In a surround sound setup, BeoLab 7-4 is designed to give a powerful performance in the important centre channel. It can be used with all BeoLab loudspeakers and the BeoLab 2 subwoofer for the ultimate surround sound experience with the BeoVision 7-40 LCD or BeoVision 4 plasma televisions, or a projection screen. Moving with the motorised floor stand of your BeoVision 7, BeoLab 7-4 adds an extra dimension of sound to whatever you are watching on TV.

BeoLab 7-4 has a vertical construction that provides the best possible tonal balance found in speech. The deepest bass sounds are filtered out, ensuring greater power output and enabling BeoLab 7-4 to play up to the extreme capabilities of the BeoLab 5 loudspeaker. The acoustic lens, centred just beneath the screen as a visual emphasis of refinement, ensures an experience of tonal clarity in the horizontal plane. The sound of voices becomes extremely authentic, regardless of where you are seated.

Consistent lines and harmonious colours

The cabinet is coated in a durable yet silky black lacquer surface. Facing you is a front grill made out of anodised aluminium with a perforated pattern available in five different colours, giving a graphic touch to the overall look. As with all Bang & Olufsen products, there is always a consistency in the design lines, so you will quickly see a coherence between the curved DVD loader on BeoVision 7 and the curved front of BeoLab 7-4.

Mounting Options

All four versions of BeoLab 7 were designed for incorporation with Bang & Olufsen’s motor stand options.

BeoLab 7-4 Product Details

Type Numbers

Please let us know​

Designer

Manufactured

2005 -

Colour Options

Black, Silver, Dark Grey, Red, Blue

BeoLab 7-4 Product Specification

Loudspeaker Two-way mono, active loudspeaker
Power consumption 12W, standby 0.3W
Acoustic Lens Technology – Yes
Amplifier units – Two 250W ICEPower units, one for each driver unit

Frequency range 50 – 20,000 Hz
Drive units 5” woofer/mid-range 3/4” treble
Thermal protection – On each unit
Adaptive Bass Linearisation – Yes

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

    Type

Setup Guide

NL

BeoLab 7-4 Setup Guide

Service Manual

EN

BeoLab 7-4 Service Manual

BeoLab 7-4 FAQs

Please let us know
