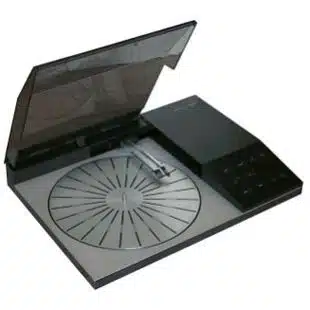

BeoGram TX

This was a re-badged Beogram 6002 but without the one way Datalink module.

It was fitted with the excellent MMC3 cartridge and could be used with other makes of amplifier. It was replaced by the much less substantial TX2.

BeoGram TX Product Details

Type Numbers

5651 (1983 – Jan 1985)
5655 (AUS)(1983 – Sept 1984)
5653 (USA) (1983 – Feb 1985)

Designer

Manufactured

1983 – 1985

Colour Options

Grey

BeoGram TX Product Specification

Wow and flutter, DIN: < 0.07 %
Rumble weighted: > 70 dB
Rumble DIN unweighted: > 45 dB
Speeds: 33 – 45 rpm
Speed deviation: < 0.2 %
Tangential tracking: < 0.04°

Power supply:
5651: 220V
5653: 120V
5655: 240V
Power consumption: 17 W
Dimensions W x H x D: 49 x 9 x 37.5cm
Weight: 9 kg

Pickup: MMC 3
Recommended tracking force 1.2 g

Features:
Tangential-tracking
Electronic Servo-Drive
Search function – backwards & forwards
Pickup sold as extra (depending on choice from MMC 1 – 5 range)
Link compatibility: Data Link
