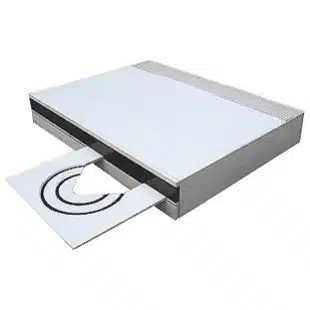

BeoGram CD 6500

If you wanted to indulge yourself with the finest sound quality then you’d do no better than listening to your favourite pieces of music on Bang & Olufsen’s Beogram CD 6500. Beogram CD 6500 was a replacement for its predecessor, Beogram CD 5500.

It played both 12cm and 8cm compact discs, and housed sophisticated and advanced digital technology. And it offered sound reproduction which would satisfy even the most demanding of listeners.

Beogram CD 6500 could be used as part of the Beosystem 6500 hi-fi system.

BeoGram CD 6500 Product Details

Type Numbers

5136 (1989 – Feb 1992)
5140 (AUS) (1989 – Sept 1991)
5137 (GB) (1989 – Oct 1991)
5139 (J) (1989 – Oct 1991)
5138 (USA) (1989 – Dec 1991)

Designer

Manufactured

1989 – 1992

Colour Options

Silver, Black, White

BeoGram CD 6500 Product Specification

Frequency range: 3 – 20,000 Hz +/- 0.3 dB
Signal-to-noise ratio: > 100 dB / 110 dB A-weighted
Dynamic range: > 96 dB
Harmonic distortion incl. noise: < 0.0025% at 0 dB
< 0.025% at -20 dB
Channel separation: > 101 dB
Channel difference: < 0.08 dB

Converter system: 2 x 16 bit, 4 x oversampling 176.4
Low pass filter: Digital + Bessel/elliptical analogue
Damping: > 20,000 Hz > 50 dB
Phase error between L & R 0 degree at 20 – 20,000 Hz
Output analogue: 1.3 V RMS at 0 dB
Output, signal: For digital equipment
Power supply:
5136: 220 V
5137: 240 V
5138: 100 V
5139: 120 V
5140: 240 V
Power consumption 23 W
Dimensions W x H x D: 42 x 7.5 x 32.5cm
Weight 6.3 kg
Link compatibility: Data Link

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

    Type

User Guide

EN

BeoGram CD 6500 User Guide

BeoGram CD 6500 FAQs
