BeoGram 6000 (1981)

BeoGram 6000 (1981)

Beogram 6000 – Type 5751 – was a fully automatic record player with one-touch operation. Put a record on the turntable, touch START and let Bang & Olufsen technology do the rest. The lightweight, low inertia tone arm was fitted with theย MMC 20ENย pick-up cartridge. This had a naked elliptical diamond and a low Effective Tip […]

Overview

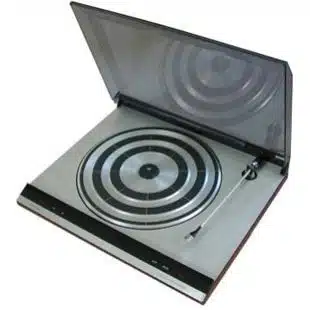

Beogram 6000 – Type 5751 – was a fully automatic record player with one-touch operation.

Put a record on the turntable, touch START and let Bang & Olufsen technology do the rest. The lightweight, low inertia tone arm was fitted with theย MMC 20ENย pick-up cartridge. This had a naked elliptical diamond and a low Effective Tip Mass which, together with the lightweight arm, secured excellent tracking performance and minimum record wear.

The patented spring suspension system effectively prevented external knocks and vibration from affecting tracking and sound quality. This later radial 6000 model was fitted with Datalink and was really aย Beogram 2402ย with new electronics in the same design. It really did not match theย Beomaster 6000ย and was a short lived and frankly unpopular model but was offered as a cheaper alternative to the tangential tracking and tangential driveย Beogram 6006. These decks were both replaced by theย Beogram 6002.ย This deck had the newer MMC3 cartridge and was a strange amalgam of the two earlier decks in that it had a simplified tangential arm but belt drive for the platter

Product Details

Type Number:5751
Release Date:1981
Designer:Jacob Jensen
Colour / Finish:Oak, Rosewood, Teak, White
Cartridge Type:MMC20EN

Product Specification

Speeds 33-45 rpm.
Wow and flutter 65 dB
Rumble unweighted > 45 dB
Motor Servo controlled DC
Drive system Belt

Power supply
180 - 265 (110) V
Power consumption 8 watts
Dimensions 44 x 8.5 x 37 cm
Weight 6.5 kg
Recommended stylus pressureย MMC 20 ENย 12 mN / 1.2 gram

Downloads

    Type

Language

Language

    Type

User Guide

EN


BeoGram 6000 User Guide

Service Manual Part 1

EN

5501, 5502

BeoGram 6000 Service Manual

Service Manual Part 2

EN

5501, 5502

BeoGram 6000 Service Manual

Service Manual

EN

5514, 5515

BeoGram 6000 Service Manual

Service Manual

EN

5502, 5505

BeoGram 6000 Service Manual

Service Manual

EN

5751, 5753, 5754

BeoGram 6000 Service Manual

Frequently Asked Questions

No FAQs available.
