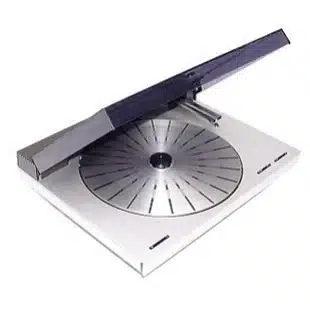

BeoGram 5005

BeoGram 5005

This good-looking tangential record player had a unique tone arm suspension system among its many outstanding features. Optimum Pivot Point (OPP) was designed by Bang & Olufsen to give you the most faithful possible sound reproduction. The pendulum suspension isolated all vibration at the back of the tone arm so that the sensitive stylus tip […]

Overview

This good-looking tangential record player had a unique tone arm suspension system among its many outstanding features. Optimum Pivot Point (OPP) was designed by Bang & Olufsen to give you the most faithful possible sound reproduction. The pendulum suspension isolated all vibration at the back of the tone arm so that the sensitive stylus tip was completely unaffected. It also had electronic Servo-drive and was fitted with the MMC 4 cartridge. The stylus pressure was 1,2g.

Facilities: search function – backwards and forwards; repeat playing of records; Datalink for connection to Beosystems.

This was the first of the lightweight tangential decks which were to become the mainstay of the Beogram range. The expensive tangential drive system of the 8000 was dropped and even the tangential arm mechanism was considerably simplified. They did however look the part and allowed far more control using a remote than the earlier radial 5000. Many owners of Beomaster 5000s ‘upgraded’ their systems with this deck but would miss the overhead light built into the lid of the 5000 and, dare one say it, possibly lose some sound quality.

Product Details

Type Number:5921,5925,5924,5923
Release Date:1985, 1986, 1987
Designer:Jacob Jensen
Colour / Finish:Aluminium
Cartridge Type:MMC4
BeoLink:DataLink

Product Specification

Pickup: MMC 4
Tracking force: 12 mN / 1.2 g
Wow and flutter: DIN 80 dB
Rumble DIN unweighted: > 55 dB
Speeds: 33 – 45 rpm
Speed deviation: < +/- 0.2 %

Patented Pendulum suspension
Anti-static platter
Repeat and search functions
Automatic registration of record size and speed
Power supply:
5921: 220V
5923: 120V
5924: 100V
5925: 240V
Power consumption < 10 W
Dimensions W x H x D: 42 x 7.5 x 32.5cm
Weight 5.3 kg
Link compatibility: Data Link

Downloads

    Type

Language

Language

    Type

User Guide

EN


BeoGram 5005 User Guide

Service Manual

Multi

5921, 5923, 5924, 5925

BeoGram 5005 Service Manual
